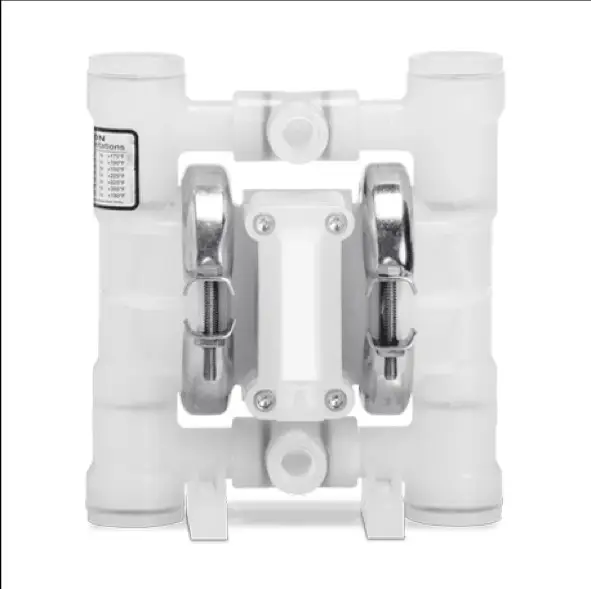

Reference image. Final construction follows the confirmed model and quotation.
Pneumatic Diaphragm Pumps
00-9602 P.025/KKPPP/BNS/TF/KBN AODD Pump Threaded Buna-N PVDF 1/4"
Model: Available on request
00-9602 P.025/KKPPP/BNS/TF/KBN AODD Pump Threaded Buna-N PVDF 1/4" The Wilden® 00-9602, a 0.25" Pro-Flo® clamped AODD pump built from PVDF with Buna-N diaphragms and PTFE ball valves, delivers up to 4.8 GPM at 125 PSI across fluid transfer systems. The traditional full-stroke diaphragm design ensures versatility and sustainability in slurry, abrasive, or viscous applications (up to 125000 cP).
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
00-9602 P.025/KKPPP/BNS/TF/KBN AODD Pump Threaded Buna-N PVDF 1/4"
The Wilden® 00-9602, a 0.25" Pro-Flo® clamped AODD pump built from PVDF with Buna-N diaphragms and PTFE ball valves, delivers up to 4.8 GPM at 125 PSI across fluid transfer systems. The traditional full-stroke diaphragm design ensures versatility and sustainability in slurry, abrasive, or viscous applications (up to 125000 cP). Configured with threaded NPT center-swivel inlet and threaded NPT center-swivel discharge, this pump is well-suited for a wide range of industrial and commercial operations. CE|UKCA certified.
| WILDEN Pump Description | P.025/KKPPP/BNS/TF/KBN |
|---|---|
| Item Number Pump | 00-9602 |
| Port Size | 1/4" |
| Air Kit | NAK |
| Wet Kit | NME |
| Air Distribution System | Pro-Flo® |
| Pump Construction | Pvdf |
| Diaphragms | Buna-N |
| Valve/ Balls | Teflon |
| Valve Seats | Pvdf with Buna-N O-Ring |
| Outer Piston | Pvdf |
| Air Chamber | Polypropylene |
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
| Capacity GPM | 4 |
| Capacity Liters/min | 18 |
| Pump Weight Lbs | 4,1 |
| Pump Weight Kilo | 1 |
| Specialty Code | #N/A |
| P.025/AZPPP/TNL/TF/ATF |
| P.025/AMPPP/WFS/TF/ATF |
| P.025/AMPPP/BNS/TF/ABN |
| P.025/AMPPP/BNS/TF/ABN/0014 |
| P.025/AMPPP/WFS/TF/ATF/0014 |
| P.025/AZPPP/TNL/TF/ATF/0014 |
| P.025/AZLLL/TNL/TF/ATF |
| P.025/AMLLL/BNS/TF/ABN |
| P.025/AMLLL/WFS/TF/ATF/0014 |
| XP.025/AZPPP/TEL/TF/ATF/0014 |
| P.025/AZPPP/TEL/TF/ATF |
| P.025/KZPPP/TNL/TF/KTV/0310 |
| P.025/KKPPP/BNS/TF/KBN |
| P.025/KZPPP/TNL/TF/KTV |
| P.025/KZPPP/TNL/TF/KTV/0502 |
| P.025/KKPPP/WFS/TF/KWF |
| P.025/KKPPP/WFS/TF/KWF/0502 |
| P.025/KKPPP/WFS/TF/KTV |
| P.025/KZPPP/TEL/TF/KTV |
| P.025/PZPPP/TNL/TF/PTV/0310 |
| P.025/PZPPP/TNL/TF/KTV/0502 |
| P.025/PPPPP/EPS/TF/PTV |
| P.025/PPPPP/WFS/SS/PWF |
| P.025/PZPPP/TEL/TF/PTV |
| P.025/PPPPP/BNS/TF/PBN |
| P.025/PPPPP/BNS/TF/PBN/0502 |
| P.025/PZPPP/TNL/TF/PTV/0502 |
| P.025/PPPPP/WFS/TF/PWF |
| P.025/PPPPP/WFS/TF/PWF/0502 |
| P.025/PPPPP/WFS/TF/PTV |
| P.025/PZPPP/TNL/TF/PTV |
| P.025/PPPPP/WFS/TF/KWF |
| P.025/PPPPP/WFS/TF/KTV |
| P.025/PZPPP/TNL/TF/KTV |
| P.025/PZPPP/TNL/TF/PWF |
| XP.025/SZPPP/TEL/TF/STV/0670 |
| XP.025/SSLLL/WFS/TF/SWF |
| P.025/SZPPP/TEL/TF/STV/0481 |
| XP.025/SZLLL/TNL/TF/STV/0670 |
| P.025/SSPPP/BNS/TF/SBN |
| P.025/SZPPP/TNL/TF/STV |
| P.025/SSPPP/BNS/TF/SBN/0014 |
| P.025/SSPPP/WFS/TF/SWF/0014 |
| P.025/SZPPP/TNL/TF/STV/0014 |
| P.025/SZLLL/TNL/TF/STV |
| P.025/SZLLL/TNL/TF/STV/0014 |
| P.025/SZPPP/TNL/TF/STV/0670 |
| P.025/SSPPP/WFS/TF/SWF |
| XP.025/SZPPP/TEL/TF/STV/0014 |
| XP.025/SZPPP/TEL/TF/STV |
