Pneumatic Diaphragm Pumps

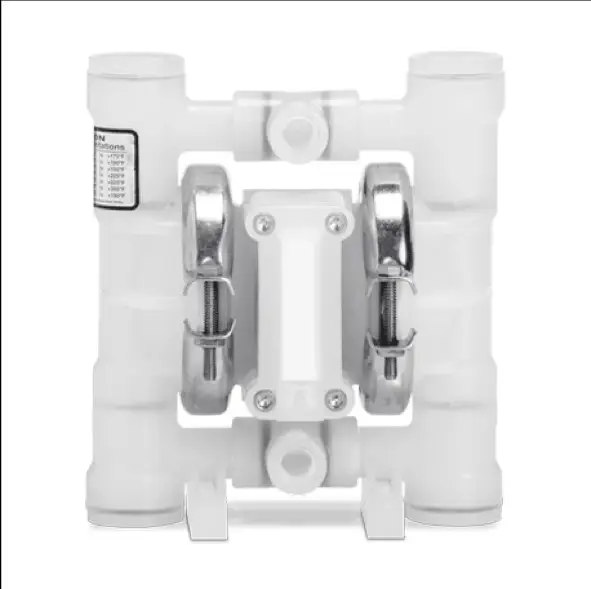

00-9606 P.025/KKPPP/WFS/TF/KWF AODD Pump PVDF 1/4" Clamped Threaded
Model: Available on request
00-9606 P.025/KKPPP/WFS/TF/KWF AODD Pump PVDF 1/4" Clamped Threaded Item Overiew for Wilden® 00-9606 The Wilden® 00-9606, a 0.25" Pro-Flo® clamped AODD pump built from PVDF with Santoprene® diaphragms and PTFE ball valves, delivers up to 4.8 GPM at 125 PSI across fluid transfer systems.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
00-9606 P.025/KKPPP/WFS/TF/KWF AODD Pump PVDF 1/4" Clamped Threaded
Item Overiew for Wilden® 00-9606
The Wilden® 00-9606, a 0.25" Pro-Flo® clamped AODD pump built from PVDF with Santoprene® diaphragms and PTFE ball valves, delivers up to 4.8 GPM at 125 PSI across fluid transfer systems. The traditional full-stroke diaphragm design ensures consistency and longevity in slurry, abrasive, or viscous applications (up to 125000 cP). Configured with threaded NPT center-swivel inlet and threaded NPT center-swivel discharge, often chosen for is versatility in addressing the needs of diverse operational contexts. CE|UKCA certified.
| WILDEN Pump Description | P.025/KKPPP/WFS/TF/KWF |
|---|---|
| Item Number Pump | 00-9606 |
| Port Size | 1/4" |
| Air Kit | NAK |
| Wet Kit | NME |
| Air Distribution System | Pro-Flo® |
| Pump Construction | Pvdf |
| Diaphragms | Wil-Flex |
| Valve/ Balls | Teflon |
| Valve Seats | Pvdf with Wil-Flex O-Ring |
| Outer Piston | Pvdf |
| Air Chamber | Polypropylene |
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
| Capacity GPM | 4 |
| Capacity Liters/min | 18 |
| Pump Weight Lbs | 4,1 |
| Pump Weight Kilo | 1 |
| Specialty Code | #N/A |
