Pneumatic Diaphragm Pumps

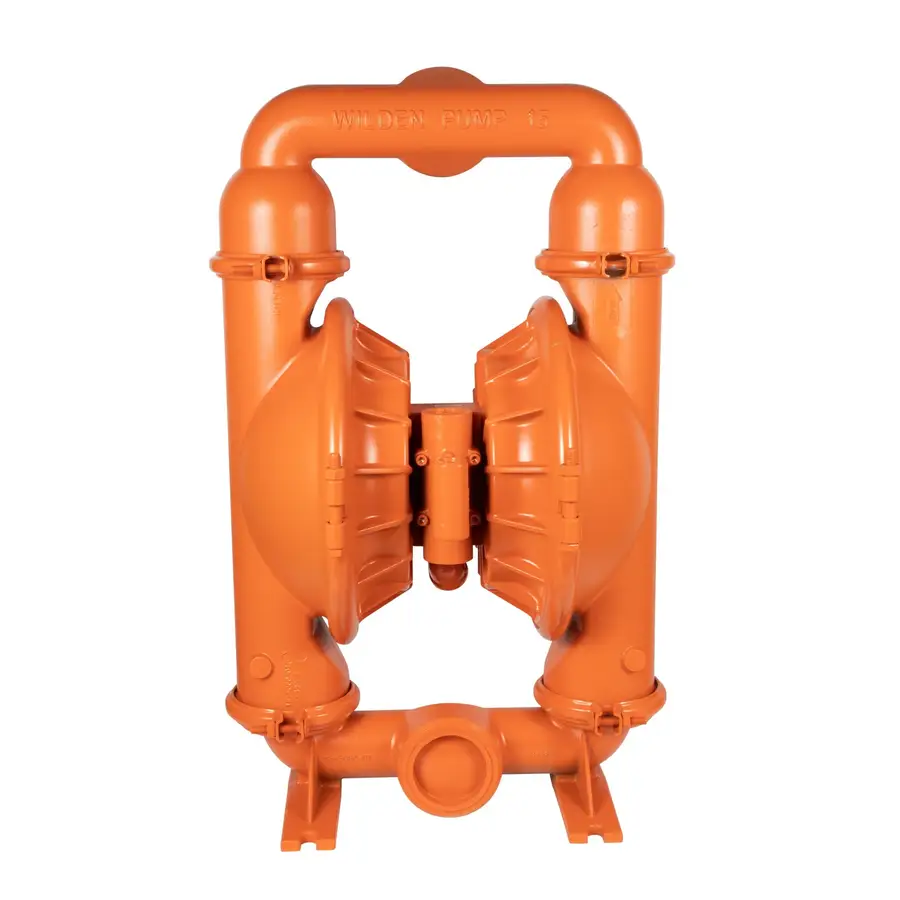

51 MM (2-) PRO-FLO Series Metal Clutch Pumps P8 Wilden
Model: P8
51 MM (2-) PRO-FLO Series Metal Clutch Pumps P8 Wilden 51 MM (2-) PRO-FLO Series Metal Clutch Pumps P8 Wilden specifications: Material of liquid contact: Aluminum alloy transport weight: 32 kg (70 lbs); 316 Stainless steel transport weight: 51 kg (112 lbs) Ductile iron transport weight: 47 kg (104 lbs) Elastomer material: Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters, Teflon PTFE…
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
51 MM (2-) PRO-FLO Series Metal Clutch Pumps P8 Wilden
51 MM (2-) PRO-FLO Series Metal Clutch Pumps P8 Wilden specifications:
Material of liquid contact:
Aluminum alloy transport weight: 32 kg (70 lbs);
316 Stainless steel transport weight: 51 kg (112 lbs)
Ductile iron transport weight: 47 kg (104 lbs)
Elastomer material:
Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters,
Teflon PTFE, fluorinated rubber, Wil-FlexTM.
Non-liquid-to-liquid material:
Air chamber: aluminum alloy, stainless steel, aluminum-covered Halar;
Intermediate: polypropylene;
Air valve: polypropylene;
Performance parameters of WILDEN Wilton P8 clamp type metal pneumatic diaphragm pump:
Media import dimensions: 2” (51 mm);
Media outlet dimensions: 2” (51 mm);
Air inlet size: 3/4” (19 mm);
Maximum outlet pressure: 8.6 Bar (125 psig);
The maximum solid particle diameter can be passed: 1/4” (6.4 mm);
Maximum traffic:
Rubber/thermoplastic compound: 591 lpm (156 gpm);
Teflon PTFE: 496 lpm (131 gpm);
Maximum suction range:
Rubber/thermoplastic compounds: dry suction 7.3 m (24.0’), wet suction 9.5 m (31.0’);
Teflon PTFE: dry suction 4.6 m (15.0’), wet suction 9.5 m (31.0’);
