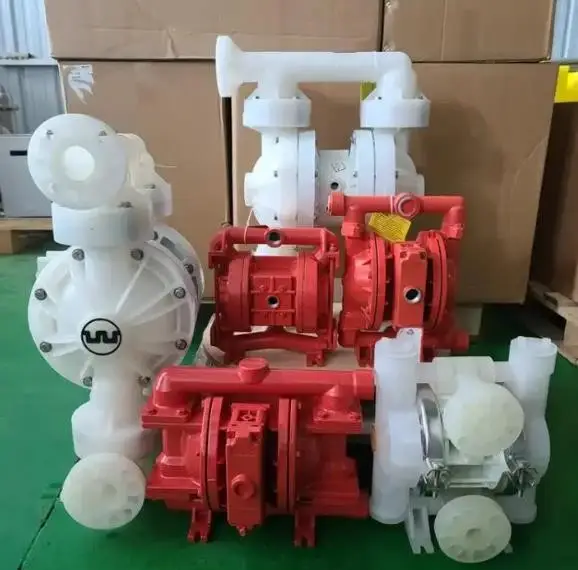

Reference image. Final construction follows the confirmed model and quotation.
Pneumatic Diaphragm Pumps
A.025P/AMPPP/WFS/TF/ATF/0151 Pro-Flo® Pvdf Wilden diaphragm pump accessories diagram
Model: 025P/AMPPP/WFS/TF/ATF/0151
A.025P/AMPPP/WFS/TF/ATF/0151 Pro-Flo® Pvdf Wilden diaphragm pump accessories diagram WILDEN Pump Description A.025P/AMPPP/WFS/TF/ATF/0151 Port Size 1/4" Air Kit NAK Wet Kit NME Air Distribution System Accu-Flo™ Pump Construction Aluminum Diaphragms Wil-Flex Valve/ Balls Teflon Valve Seats Aluminum with Teflon O-Ring Outer Piston Mild steel Air Chamber Polypropylene Center Block Polypropylene Air Valve Polypropylene…
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
A.025P/AMPPP/WFS/TF/ATF/0151 Pro-Flo® Pvdf Wilden diaphragm pump accessories diagram
| WILDEN Pump Description | A.025P/AMPPP/WFS/TF/ATF/0151 |
|---|---|
| Port Size | 1/4" |
| Air Kit | NAK |
| Wet Kit | NME |
| Air Distribution System | Accu-Flo™ |
| Pump Construction | Aluminum |
| Diaphragms | Wil-Flex |
| Valve/ Balls | Teflon |
| Valve Seats | Aluminum with Teflon O-Ring |
| Outer Piston | Mild steel |
| Air Chamber | Polypropylene |
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
| Capacity GPM | 3 |
| Capacity Liters/min | 15 |
| Pump Weight Lbs | 5,0 |
| Pump Weight Kilo | 2 |
| Specialty Code | Adapter block, no muffler, Pro-Flo, center section |
