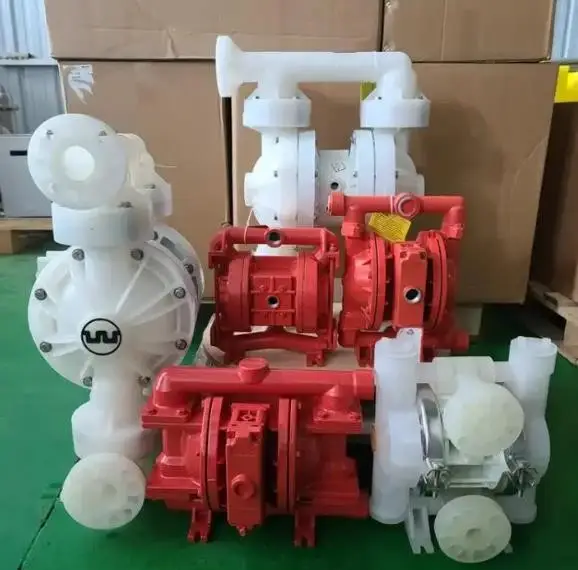

Reference image. Final construction follows the confirmed model and quotation.
Pneumatic Diaphragm Pumps
A.025P/KKPPP/WFS/TF/KTV/0151 Stainless steel aluminum alloy pneumatic diaphragm pump acid-alkali-resistant chemical conveying pump
Model: 025P/KKPPP/WFS/TF/KTV/0151
A.025P/KKPPP/WFS/TF/KTV/0151 Stainless steel aluminum alloy pneumatic diaphragm pump acid-alkali-resistant chemical conveying pump WILDEN Pump Description A.025P/KKPPP/WFS/TF/KTV/0151 Port Size 1/4" Air Kit NAK Wet Kit NME Air Distribution System Accu-Flo™ Pump Construction Pvdf Diaphragms Wil-Flex Valve/ Balls Teflon Valve Seats Pvdf with Ptfe Encapsulated Viton Outer Piston Pvdf Air Chamber Polypropylene Center…
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
A.025P/KKPPP/WFS/TF/KTV/0151 Stainless steel aluminum alloy
pneumatic diaphragm pump acid-alkali-resistant chemical conveying pump
| WILDEN Pump Description | A.025P/KKPPP/WFS/TF/KTV/0151 |
|---|---|
| Port Size | 1/4" |
| Air Kit | NAK |
| Wet Kit | NME |
| Air Distribution System | Accu-Flo™ |
| Pump Construction | Pvdf |
| Diaphragms | Wil-Flex |
| Valve/ Balls | Teflon |
| Valve Seats | Pvdf with Ptfe Encapsulated Viton |
| Outer Piston | Pvdf |
| Air Chamber | Polypropylene |
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
| Capacity GPM | 2 |
| Capacity Liters/min | 11 |
| Pump Weight Lbs | 3,9 |
| Pump Weight Kilo | 1 |
| Specialty Code | Adapter block, no muffler, Pro-Flo, center section |
