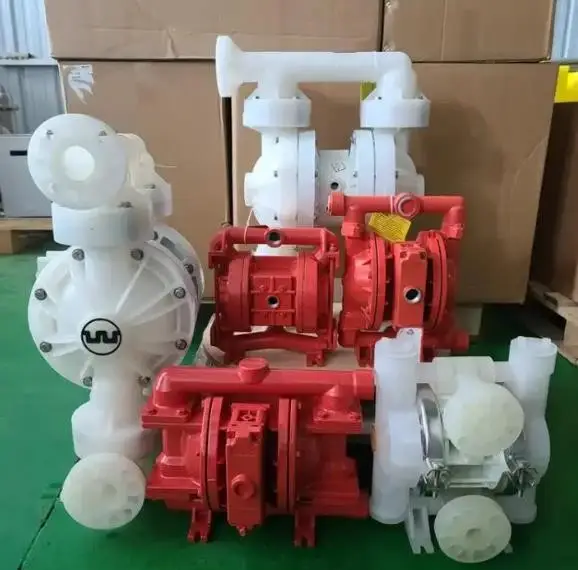

Reference image. Final construction follows the confirmed model and quotation.
Pneumatic Diaphragm Pumps
A.025P/KZPPP/TNL/TF/KTV/0151 WILDEN Stainless steel aluminum alloy pneumatic diaphragm pump acid-alkali-resistant chemical conveying pump
Model: 025P/KZPPP/TNL/TF/KTV/0151
A.025P/KZPPP/TNL/TF/KTV/0151 WILDEN Stainless steel aluminum alloy pneumatic diaphragm pump acid-alkali-resistant chemical conveying pump WILDEN Pump Description A.025P/KZPPP/TNL/TF/KTV/0151 Port Size 1/4" Air Kit NAK Wet Kit NWK Air Distribution System Accu-Flo™ Pump Construction Pvdf Diaphragms Ptfe, Neoprene Back-Up, O-ring, IPD Valve/ Balls Teflon Valve Seats Pvdf with Ptfe Encapsulated Viton Outer Piston None…
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
A.025P/KZPPP/TNL/TF/KTV/0151 WILDEN Stainless steel aluminum alloy pneumatic
diaphragm pump acid-alkali-resistant chemical conveying pump
| WILDEN Pump Description | A.025P/KZPPP/TNL/TF/KTV/0151 |
|---|---|
| Port Size | 1/4" |
| Air Kit | NAK |
| Wet Kit | NWK |
| Air Distribution System | Accu-Flo™ |
| Pump Construction | Pvdf |
| Diaphragms | Ptfe, Neoprene Back-Up, O-ring, IPD |
| Valve/ Balls | Teflon |
| Valve Seats | Pvdf with Ptfe Encapsulated Viton |
| Outer Piston | None |
| Air Chamber | Polypropylene |
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
| Capacity GPM | 2 |
| Capacity Liters/min | 11 |
| Pump Weight Lbs | 3,9 |
| Pump Weight Kilo | 1 |
| Specialty Code | Adapter block, no muffler, Pro-Flo, center section |
