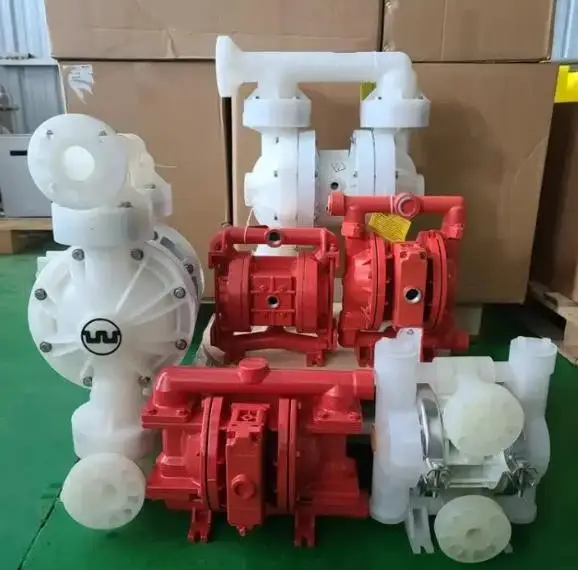

Reference image. Final construction follows the confirmed model and quotation.
Pneumatic Diaphragm Pumps
A.025P/PPPPP/WFS/TF/PWF/0150 wilden pneumatic diaphragm pump
Model: 025P/PPPPP/WFS/TF/PWF/0150
A.025P/PPPPP/WFS/TF/PWF/0150 wilden pneumatic diaphragm pump WILDEN Pump Description A.025P/PPPPP/WFS/TF/PWF/0150 Port Size 1/4" Air Kit NAK Wet Kit NME Air Distribution System Accu-Flo™ Pump Construction Polypropylene Diaphragms Wil-Flex Valve/ Balls Teflon Valve Seats PP with Wil-Flex O-Ring Outer Piston Polypropylene Air Chamber Polypropylene Center Block Polypropylene Air Valve Polypropylene Capacity GPM 2…
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
A.025P/PPPPP/WFS/TF/PWF/0150 wilden pneumatic diaphragm pump
| WILDEN Pump Description | A.025P/PPPPP/WFS/TF/PWF/0150 |
|---|---|
| Port Size | 1/4" |
| Air Kit | NAK |
| Wet Kit | NME |
| Air Distribution System | Accu-Flo™ |
| Pump Construction | Polypropylene |
| Diaphragms | Wil-Flex |
| Valve/ Balls | Teflon |
| Valve Seats | PP with Wil-Flex O-Ring |
| Outer Piston | Polypropylene |
| Air Chamber | Polypropylene |
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
| Capacity GPM | 2 |
| Capacity Liters/min | 11 |
| Pump Weight Lbs | 3,9 |
| Pump Weight Kilo | 1 |
| Specialty Code | Adapter block, no muffler, Pro-Flo, center section |
