Pneumatic Diaphragm Pumps

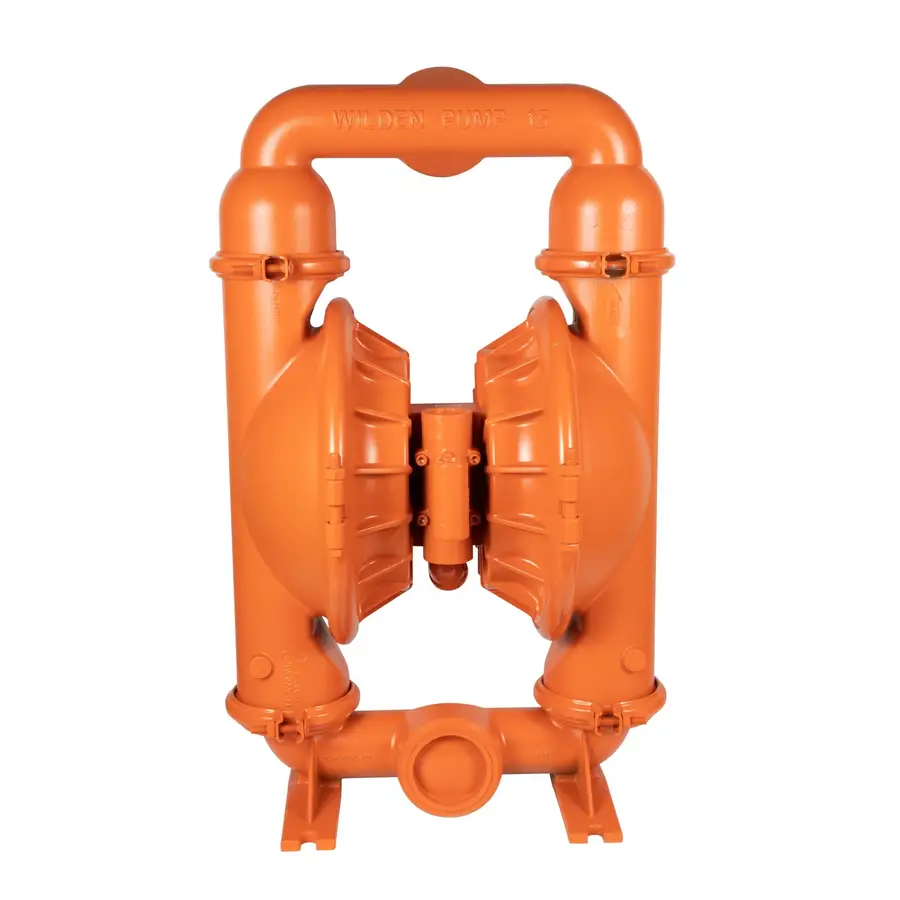

American WILDEN PX20 series clamp metal pneumatic diaphragm pump
Model: PX20
American WILDEN PX20 series clamp metal pneumatic diaphragm pump WILDEN PX20 clamp type metal pneumatic diaphragm pump specifications: Material of liquid contact: Ductile iron transport weight: 223 kg (492 lbs); Elastomer material: Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters, fluorinated rubber, Wil-FlexTM. Non-liquid-to-liquid material: Air chamber: aluminum alloy, ductile iron;
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
American WILDEN PX20 series clamp metal pneumatic diaphragm pump
WILDEN PX20 clamp type metal pneumatic diaphragm pump specifications:
Material of liquid contact:
Ductile iron transport weight: 223 kg (492 lbs);
Elastomer material:
Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters, fluorinated rubber, Wil-FlexTM.
Non-liquid-to-liquid material:
Air chamber: aluminum alloy, ductile iron;
Intermediate part: aluminum alloy, polypropylene;
Air valve: aluminum alloy, polypropylene;
Performance parameters of WILDEN Wilton PX20 clamp type metal pneumatic diaphragm pump:
Media import dimensions: 4” (102 mm);
Media outlet dimensions: 4” (102 mm);
Air inlet size: 3/4” (19 mm);
Maximum outlet pressure: 8.6 Bar (125 psig);
Maximum solid particle diameter can be passed: 1-3/8” (35 mm);
Maximum traffic:
Rubber/thermoplastic compound: 1211 lpm (320 gpm);
Maximum suction range:
Rubber/thermoplastic compounds: dry suction 4.3 m (14.1’), wet suction 8.6 m (28.4’);
