Reference image. Final construction follows the confirmed model and quotation.
Stainless Steel Submersible Pumps
80JYWQ50-18-5.5S JYWQ-S Automatic Stirring Sewage Pump
Model: 80JYWQ50-18-5.5S
80JYWQ50-18-5.5S 304 stainless steel pump: 50 m³/h flow, 18 m head, 5.5 kW, 380 V and 80 port size. Model-matched DFIN catalog data and product image.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.

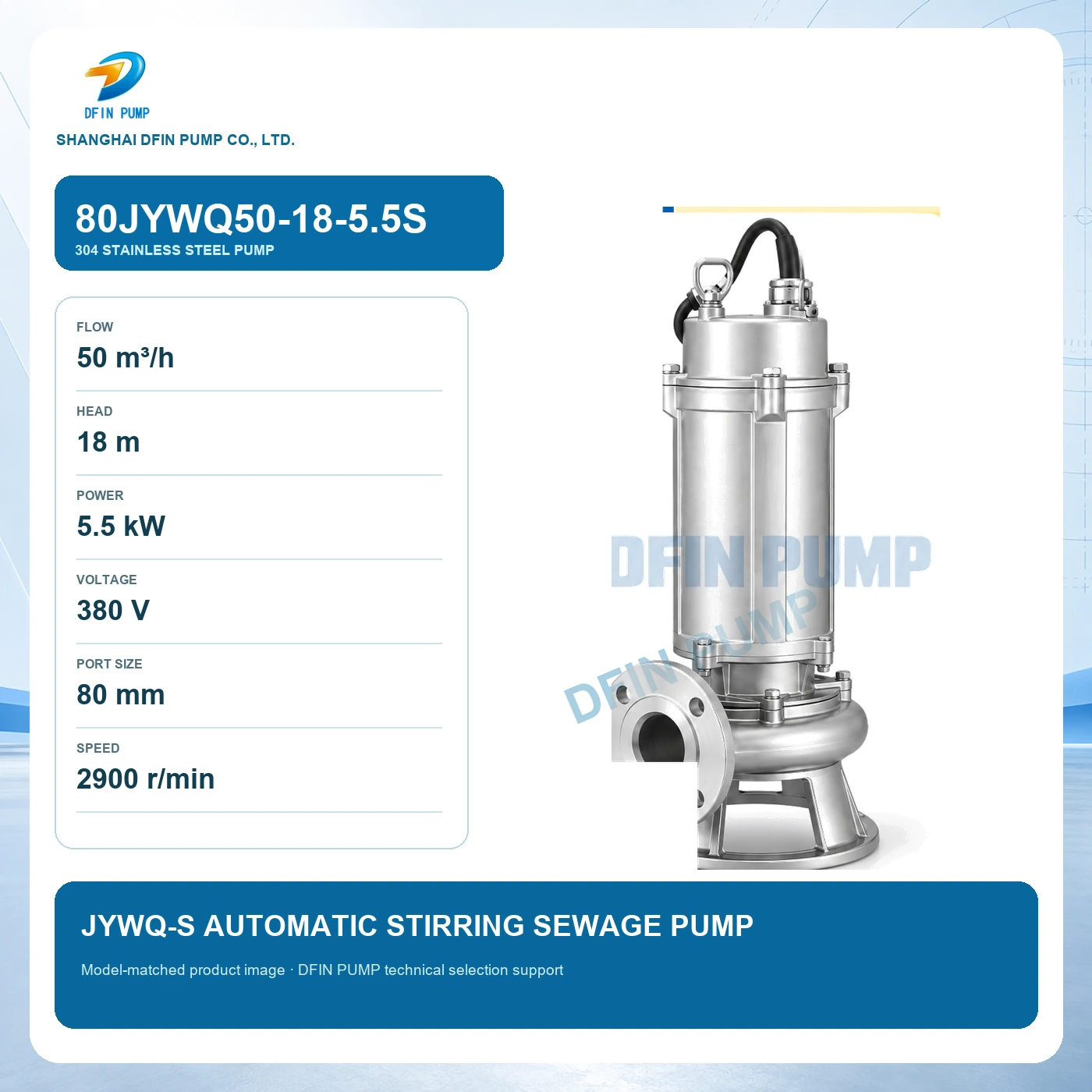

80JYWQ50-18-5.5S product overview
The 80JYWQ50-18-5.5S is a stainless steel automatic-stirring sewage pump that suspends settled solids before pumping to reduce blockage and sludge accumulation. This page presents model-specific rated data and selection information.
Model-specific technical parameters
| Model | 80JYWQ50-18-5.5S |
|---|---|
| Series | JYWQ-S Automatic Stirring Sewage Pump |
| Rated / maximum flow | 50 m³/h |
| Rated / maximum head | 18 m |
| Rated power | 5.5 kW |
| Rated voltage | 380 V |
| Discharge / port size | 80 mm |
| Rated speed | 2900 r/min |
| Main wetted material | 304 stainless steel |
Design advantages
- Automatic stirring device
- Stainless steel corrosion resistance
- Anti-clogging sewage passage
- Submerged compact installation
Typical applications
- Sewage treatment stations
- Factory and business wastewater
- Hospitals and hotels
- Municipal engineering
- River and pond dredging
JYWQ-S Automatic Stirring Sewage Pump catalog data
The following high-resolution sheets contain the product description, model code, complete series table and operating guidance for this product series.
Download complete DFIN English catalog (PDF) ↓
Selection and ordering information
- Confirm required flow and total dynamic head at the duty point.
- Confirm liquid, temperature, solids, corrosion conditions and installation method.
- Confirm voltage, frequency, cable length, control cabinet and protection requirements.
- For explosion-proof configurations, provide the hazardous-area classification and liquid details for engineering confirmation.
SELECTION SUPPORT
Application-based pump selection
Send the liquid, flow, head or pressure, temperature, solids, installation, power supply and destination for a verified recommendation.
Discuss this application
