Small Submersible Pumps

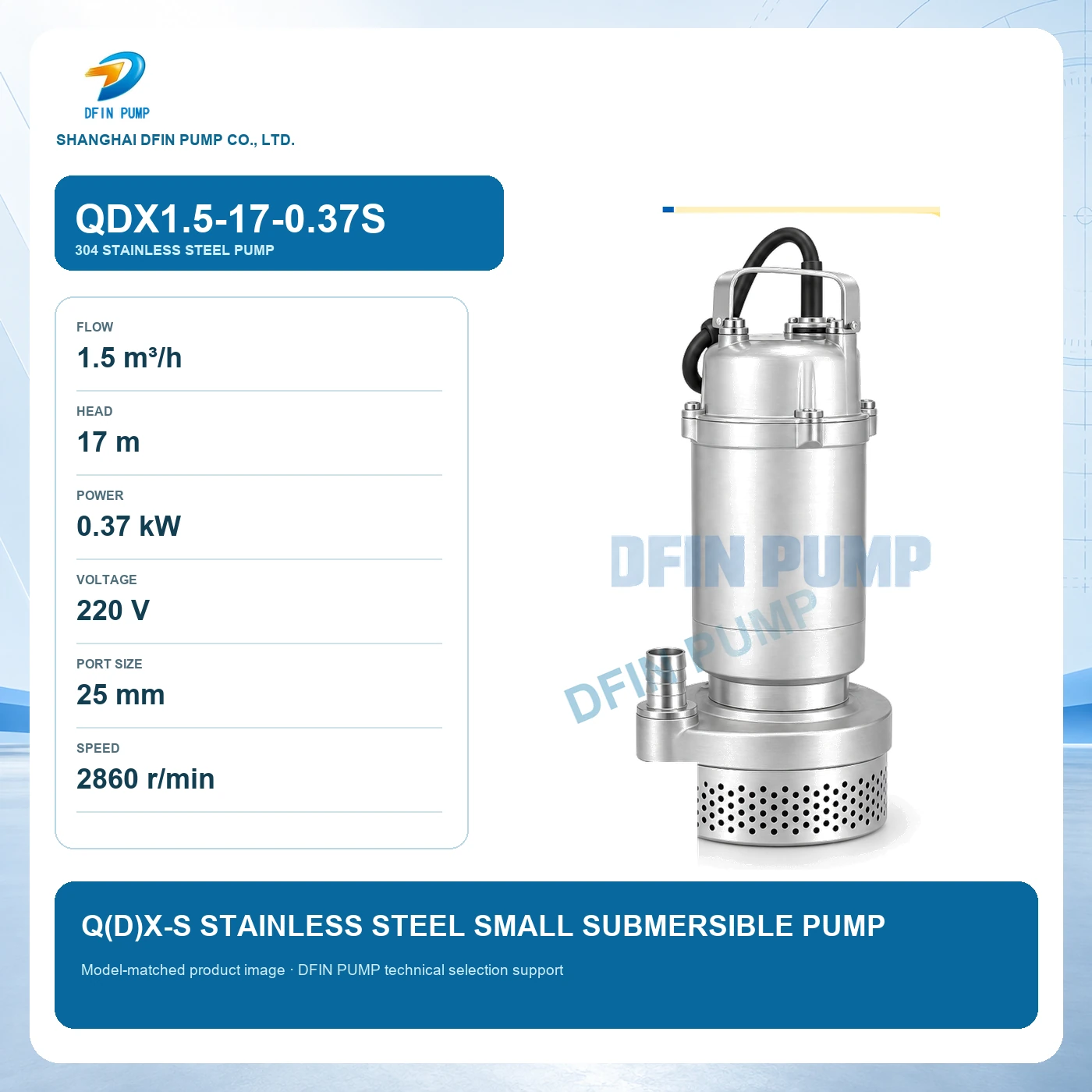

QDX1.5-17-0.37S Q(D)X-S Stainless Steel Small Submersible Pump
Model: QDX1.5-17-0.37S
QDX1.5-17-0.37S 304 stainless steel pump: 1.5 m³/h flow, 17 m head, 0.37 kW, 220 V and 25 port size. Model-matched DFIN catalog data and product image.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
QDX1.5-17-0.37S product overview
The QDX1.5-17-0.37S is a compact stainless steel submersible pump for clean water and light wastewater where corrosion resistance and portability are important. This page presents model-specific rated data and selection information.
Model-specific technical parameters
| Model | QDX1.5-17-0.37S |
|---|---|
| Series | Q(D)X-S Stainless Steel Small Submersible Pump |
| Rated / maximum flow | 1.5 m³/h |
| Rated / maximum head | 17 m |
| Rated power | 0.37 kW |
| Rated voltage | 220 V |
| Discharge / port size | 25 mm |
| Rated speed | 2860 r/min |
| Main wetted material | 304 stainless steel |
Design advantages
- Compact stainless steel body
- Double mechanical seal
- Built-in thermal protection
- Portable submerged installation
Typical applications
- Domestic drainage
- Garden and farm irrigation
- Aquaculture
- Food and beverage service
- Light industrial drainage
Q(D)X-S Stainless Steel Small Submersible Pump catalog data
The following high-resolution sheets contain the product description, model code, complete series table and operating guidance for this product series.
Download complete DFIN English catalog (PDF) ↓
Selection and ordering information
- Confirm required flow and total dynamic head at the duty point.
- Confirm liquid, temperature, solids, corrosion conditions and installation method.
- Confirm voltage, frequency, cable length, control cabinet and protection requirements.
- For explosion-proof configurations, provide the hazardous-area classification and liquid details for engineering confirmation.
