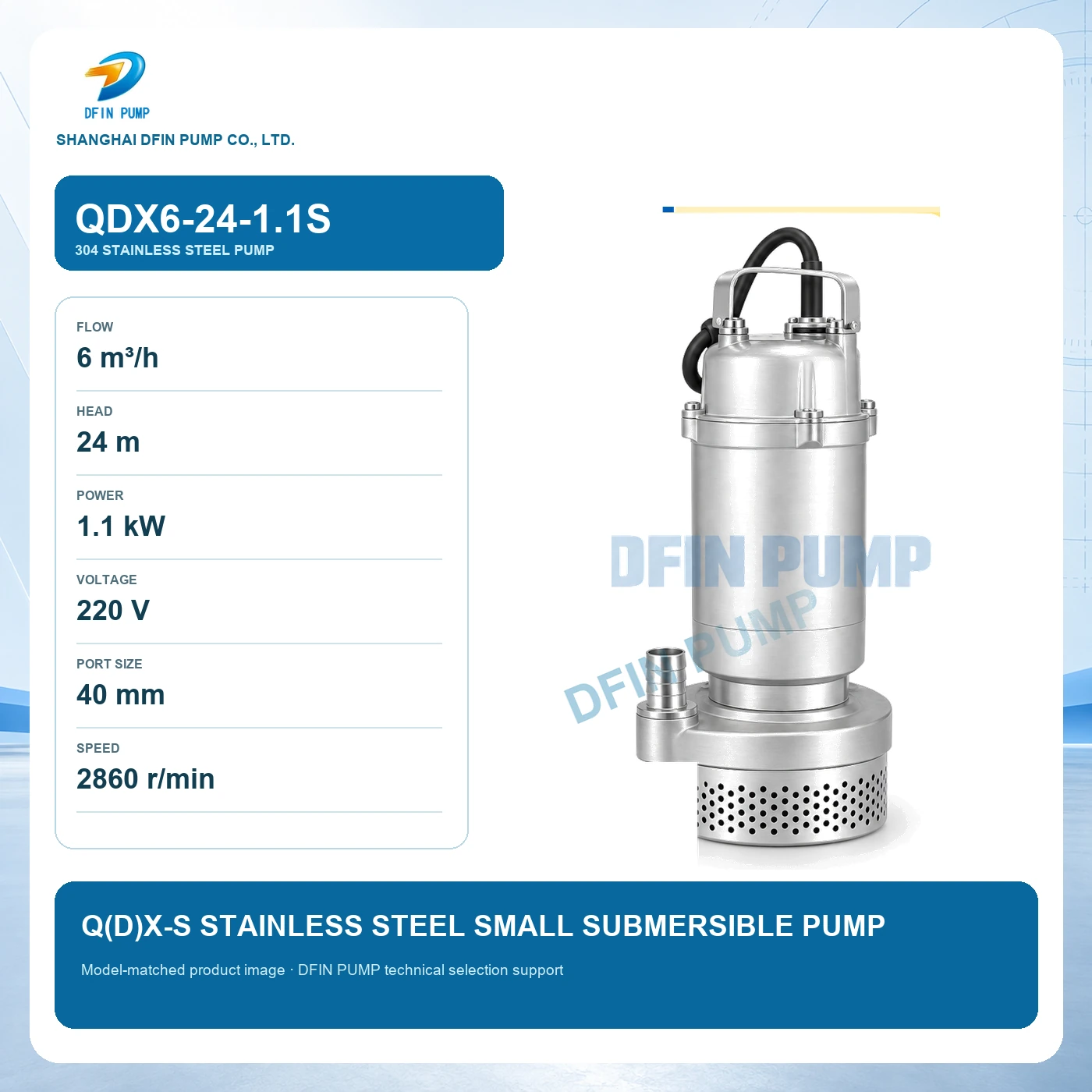

Reference image. Final construction follows the confirmed model and quotation.
Small Submersible Pumps
QDX6-24-1.1S Q(D)X-S Stainless Steel Small Submersible Pump
Model: QDX6-24-1.1S
QDX6-24-1.1S 304 stainless steel pump: 6 m³/h flow, 24 m head, 1.1 kW, 220 V and 40 port size. Model-matched DFIN catalog data and product image.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
QDX6-24-1.1S product overview
The QDX6-24-1.1S is a compact stainless steel submersible pump for clean water and light wastewater where corrosion resistance and portability are important. This page presents model-specific rated data and selection information.
Model-specific technical parameters
| Model | QDX6-24-1.1S |
|---|---|
| Series | Q(D)X-S Stainless Steel Small Submersible Pump |
| Rated / maximum flow | 6 m³/h |
| Rated / maximum head | 24 m |
| Rated power | 1.1 kW |
| Rated voltage | 220 V |
| Discharge / port size | 40 mm |
| Rated speed | 2860 r/min |
| Main wetted material | 304 stainless steel |
Design advantages
- Compact stainless steel body
- Double mechanical seal
- Built-in thermal protection
- Portable submerged installation
Typical applications
- Domestic drainage
- Garden and farm irrigation
- Aquaculture
- Food and beverage service
- Light industrial drainage
Q(D)X-S Stainless Steel Small Submersible Pump catalog data
The following high-resolution sheets contain the product description, model code, complete series table and operating guidance for this product series.
Download complete DFIN English catalog (PDF) ↓
Selection and ordering information
- Confirm required flow and total dynamic head at the duty point.
- Confirm liquid, temperature, solids, corrosion conditions and installation method.
- Confirm voltage, frequency, cable length, control cabinet and protection requirements.
- For explosion-proof configurations, provide the hazardous-area classification and liquid details for engineering confirmation.
