Self-Priming Pumps

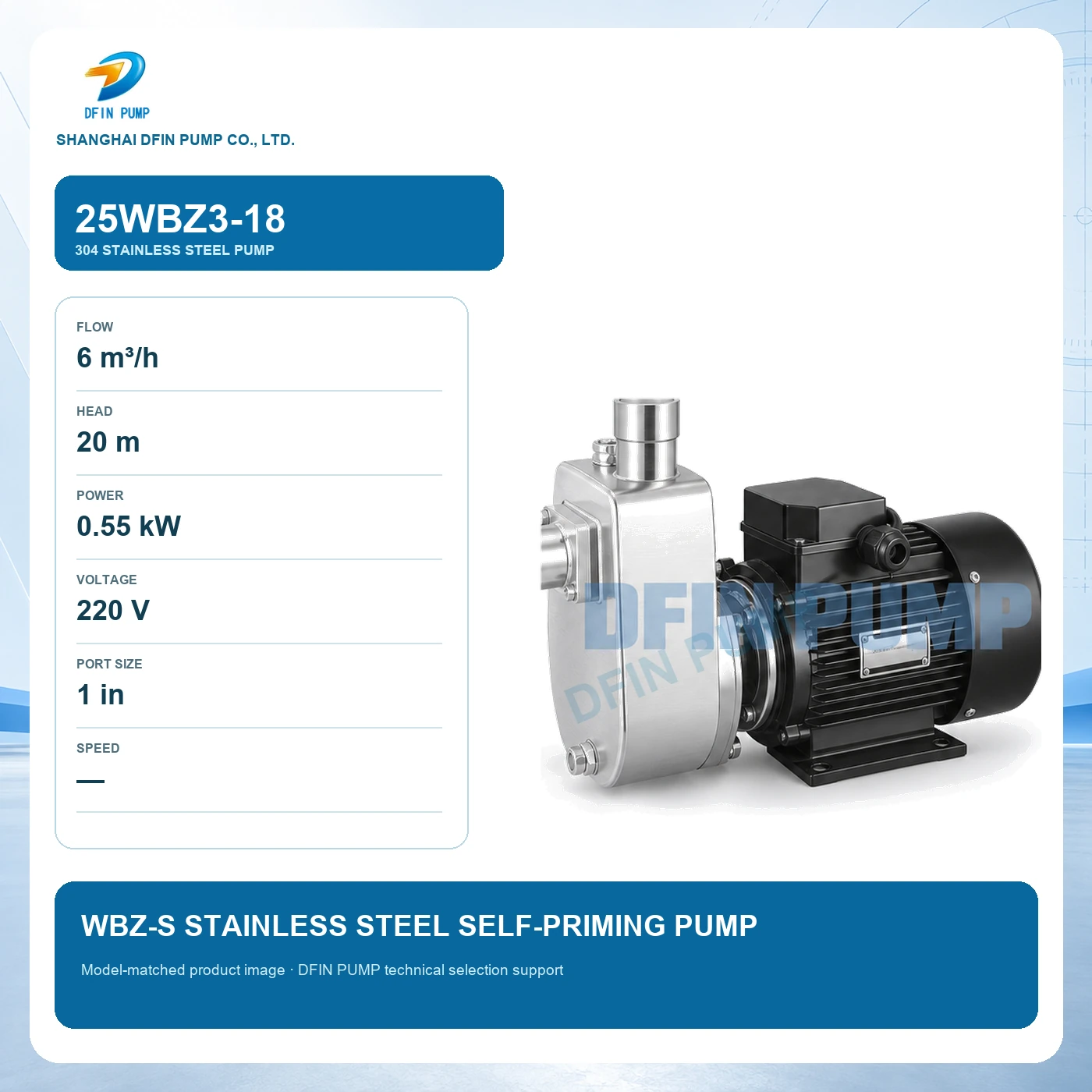

25WBZ3-18 WBZ-S Stainless Steel Self-Priming Pump
Model: 25WBZ3-18
25WBZ3-18 304 stainless steel pump: 6 m³/h flow, 20 m head, 0.55 kW, 220 V and 1 in port size. Model-matched DFIN catalog data and product image.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
25WBZ3-18 product overview
The 25WBZ3-18 is a stainless steel self-priming centrifugal pump for hygienic or mildly corrosive liquid transfer with fine soft particles or fibers. This page presents model-specific rated data and selection information.
Model-specific technical parameters
| Model | 25WBZ3-18 |
|---|---|
| Series | WBZ-S Stainless Steel Self-Priming Pump |
| Rated / maximum flow | 6 m³/h |
| Rated / maximum head | 20 m |
| Rated power | 0.55 kW |
| Rated voltage | 220 V |
| Discharge / port size | 1 in |
| Rated speed | See series catalog / motor nameplate |
| Main wetted material | 304 stainless steel |
Design advantages
- Self-priming liquid transfer
- Stainless steel pump body
- Semi-open impeller
- Compact direct-coupled motor
Typical applications
- Food and beverage transfer
- Medicine and chemical service
- Printing and dyeing
- Agricultural irrigation
- Light corrosive liquids
WBZ-S Stainless Steel Self-Priming Pump catalog data
The following high-resolution sheets contain the product description, model code, complete series table and operating guidance for this product series.
Download complete DFIN English catalog (PDF) ↓
Selection and ordering information
- Confirm required flow and total dynamic head at the duty point.
- Confirm liquid, temperature, solids, corrosion conditions and installation method.
- Confirm voltage, frequency, cable length, control cabinet and protection requirements.
- For explosion-proof configurations, provide the hazardous-area classification and liquid details for engineering confirmation.
SELECTION SUPPORT
Application-based pump selection
Send the liquid, flow, head or pressure, temperature, solids, installation, power supply and destination for a verified recommendation.
Discuss this application
