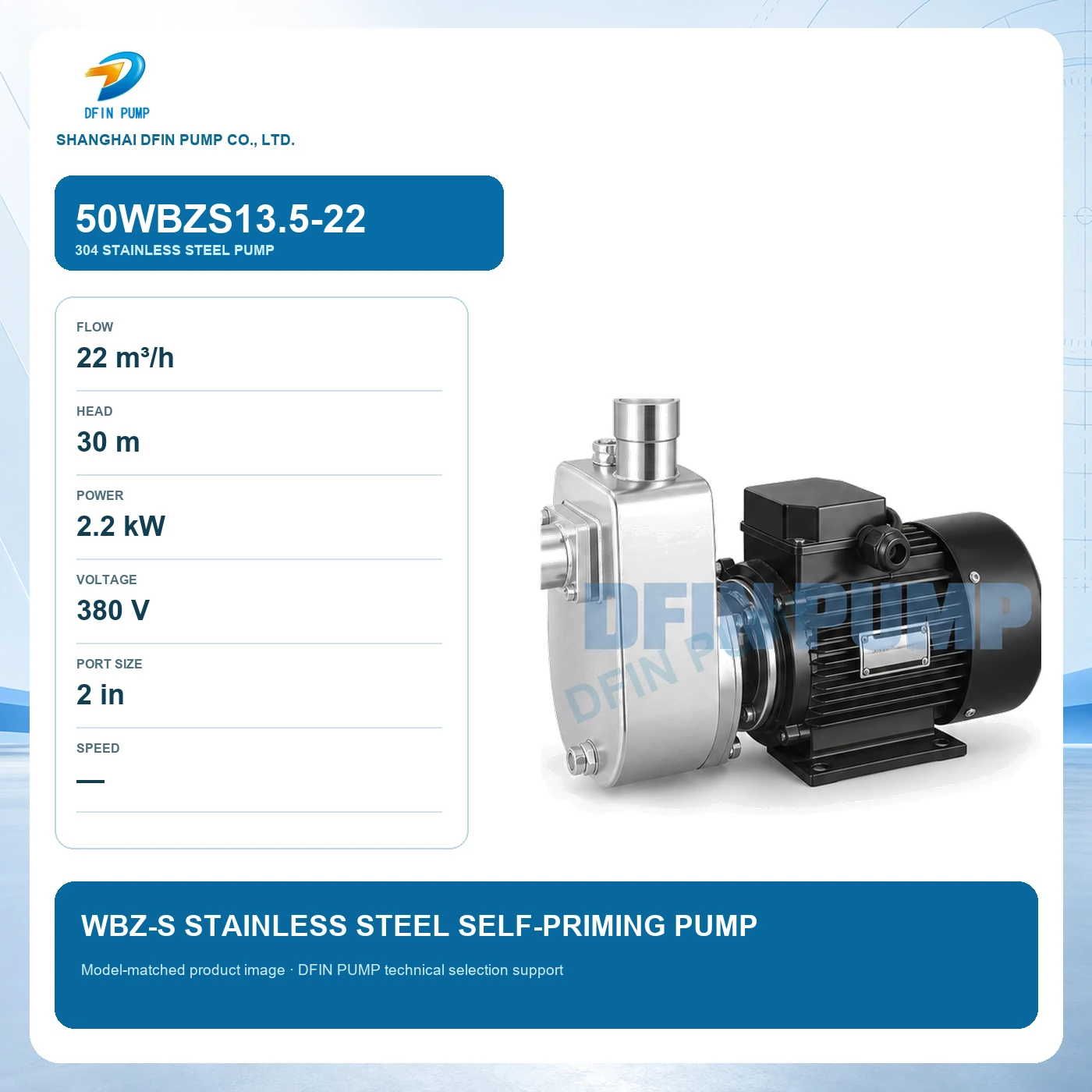

Reference image. Final construction follows the confirmed model and quotation.
Self-Priming Pumps
50WBZS13.5-22 WBZ-S Stainless Steel Self-Priming Pump
Model: 50WBZS13.5-22
50WBZS13.5-22 304 stainless steel pump: 22 m³/h flow, 30 m head, 2.2 kW, 380 V and 2 in port size. Model-matched DFIN catalog data and product image.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
50WBZS13.5-22 product overview
The 50WBZS13.5-22 is a stainless steel self-priming centrifugal pump for hygienic or mildly corrosive liquid transfer with fine soft particles or fibers. This page presents model-specific rated data and selection information.
Model-specific technical parameters
| Model | 50WBZS13.5-22 |
|---|---|
| Series | WBZ-S Stainless Steel Self-Priming Pump |
| Rated / maximum flow | 22 m³/h |
| Rated / maximum head | 30 m |
| Rated power | 2.2 kW |
| Rated voltage | 380 V |
| Discharge / port size | 2 in |
| Rated speed | See series catalog / motor nameplate |
| Main wetted material | 304 stainless steel |
Design advantages
- Self-priming liquid transfer
- Stainless steel pump body
- Semi-open impeller
- Compact direct-coupled motor
Typical applications
- Food and beverage transfer
- Medicine and chemical service
- Printing and dyeing
- Agricultural irrigation
- Light corrosive liquids
WBZ-S Stainless Steel Self-Priming Pump catalog data
The following high-resolution sheets contain the product description, model code, complete series table and operating guidance for this product series.
Download complete DFIN English catalog (PDF) ↓
Selection and ordering information
- Confirm required flow and total dynamic head at the duty point.
- Confirm liquid, temperature, solids, corrosion conditions and installation method.
- Confirm voltage, frequency, cable length, control cabinet and protection requirements.
- For explosion-proof configurations, provide the hazardous-area classification and liquid details for engineering confirmation.
