CHL2-20 Horizontal Stainless-Steel Multistage Centrifugal Pump
Model: CHL2-20
CHL2-20 horizontal stainless-steel multistage centrifugal pump with 0.37 kW motor and G1 connection. At the catalog rated flow of 2 m³/h, the published head is 15 m; the displayed curve covers up to 3.5 m³/h and 19 m.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
CHL2-20 product overview
The CHL2-20 is a compact non-self-priming horizontal multistage centrifugal pump for clean, thin and non-explosive liquids without solid particles or fibres. Its stainless hydraulic construction and close-coupled motor suit industrial circulation, washing, water treatment and pressure duties.
This page presents model-specific operating data, dimensions and selection information.
Model-specific technical parameters
| Model | CHL2-20 |
|---|---|
| Pump series | Horizontal Stainless-Steel Multistage Centrifugal Pump |
| Rated flow | 2 m³/h |
| Head at rated flow | 15 m |
| Motor power | 0.37 kW |
| Connection | G1 |
| Highest head shown on catalog curve | 19 m |
| Maximum flow shown on catalog curve | 3.5 m³/h |
| Nominal speed | 2900 / 2950 rpm |
| Frequency | 50 Hz |
Published performance points
0.5 m³/h: 19 m; 1 m³/h: 18 m; 1.5 m³/h: 16.5 m; 2 m³/h: 15 m; 2.5 m³/h: 13 m; 3 m³/h: 10 m; 3.5 m³/h: 7.5 m.
Curve values are catalog test data based on clean water at 20°C with kinematic viscosity of 1 mm²/s. Select the pump near its efficient operating range and verify the complete system curve before ordering.
Operating limits and motor
| Liquid temperature, standard version | -15°C to +70°C |
|---|---|
| Liquid temperature, hot-water version | +70°C to +110°C |
| Maximum ambient temperature | +40°C |
| Maximum working pressure | 10 bar |
| Motor enclosure | Totally enclosed, fan-cooled, 2-pole |
| Protection / insulation | IP55 / Class F |
| Standard voltage | 1×220-240 V or 3×220-240/380-415 V, 50 Hz |
| Maximum single-phase motor power | 2.4 kW |
Construction and materials
| Inlet and outlet sections | AISI 304 stainless steel inlet and outlet sections |
|---|---|
| Impellers | AISI 304 stainless steel |
| Shaft | AISI 304 stainless steel |
| Diffusers and support diffusers | AISI 304 stainless steel |
| Guide vanes / impeller spacers | AISI 304 stainless steel |
| Mechanical seal | Model-dependent mechanical seal arrangement |
| Base plate | AISI 1015 steel plate |
| Optional wetted material | AISI 316 available subject to model confirmation |

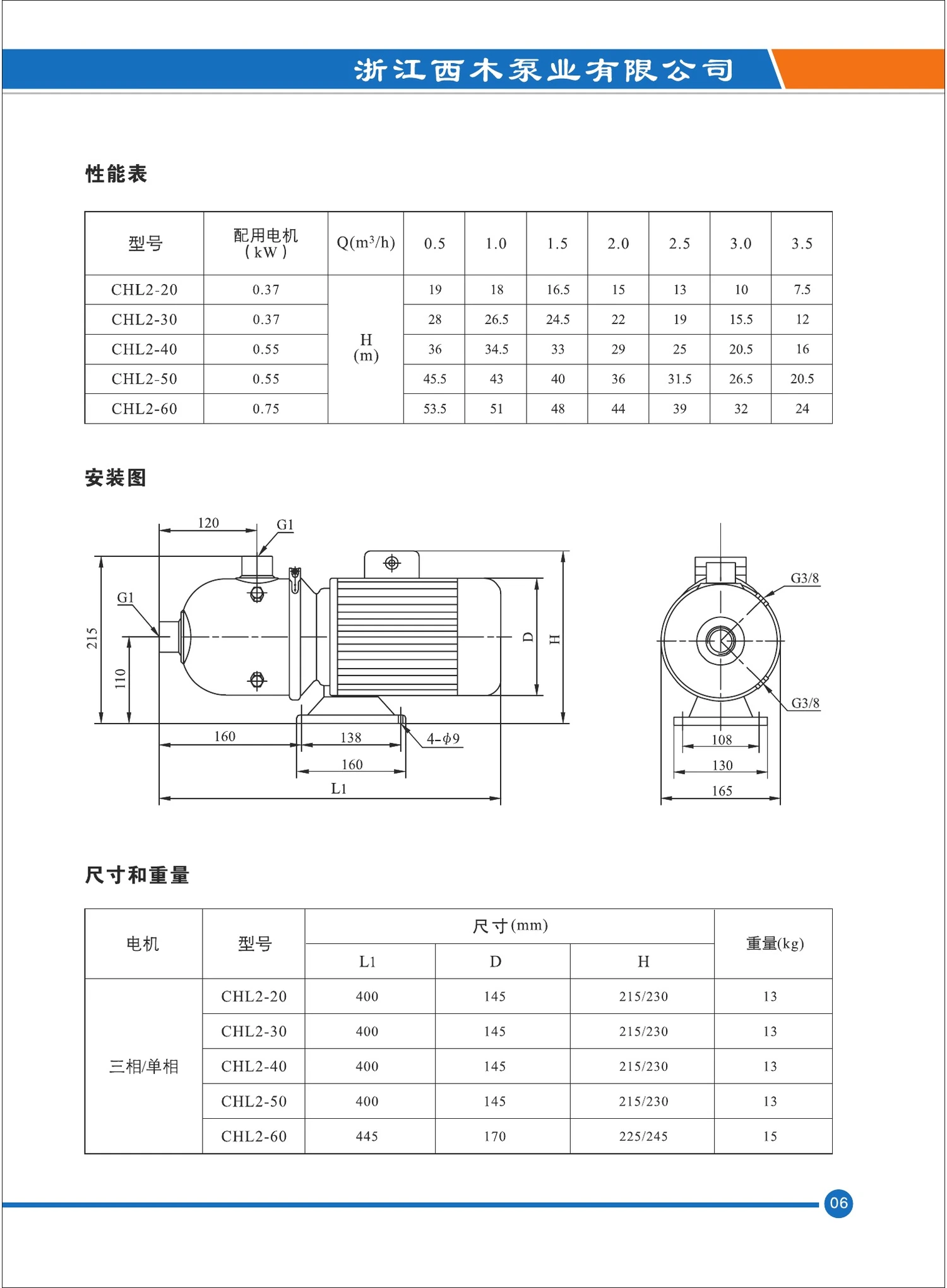

CHL2-20 dimensions and model table
The official high-resolution sheet confirms installation dimensions, port arrangement and net weight for this exact configuration.
| Dimension L1 (mm) | 400 |
|---|---|
| Dimension D (mm) | 145 |
| Dimension H (mm) | 215/230 |
| Net weight (kg) | 13 |
CHL performance curves
The curve sheet shows head, absorbed power, NPSH and efficiency versus capacity for the complete CHL2 group.
Typical applications
- Air-conditioning and cooling-water circulation
- Industrial cleaning and washing systems
- Water treatment and purification
- Aquaculture and environmental systems
- Fertilization and metering-support systems
- Clean-water pressure boosting and process transfer
Selection and ordering guide
- Provide required flow and total dynamic head, including pipe and fitting losses.
- Confirm liquid composition, pH, chloride content, temperature, density and viscosity.
- Confirm normal or hot-water version, stainless grade and CHLF or CHLF(T) inlet/outlet construction.
- Confirm voltage, frequency, phase, connection standard and control method.
- Review NPSH available, inlet pressure and the 10 bar maximum working-pressure limit.
Installation and maintenance
Install the pump horizontally on a rigid level base, align piping without strain, provide isolation valves and avoid dry running. Prime the pump before start-up, verify motor rotation, and monitor noise, vibration, leakage, pressure and current. Isolate electrical power and system pressure before servicing seals, bearings or hydraulic stages.
Download complete CHL / CHLF(T) selection manual (PDF) ↓
