Mud & Slurry Pumps

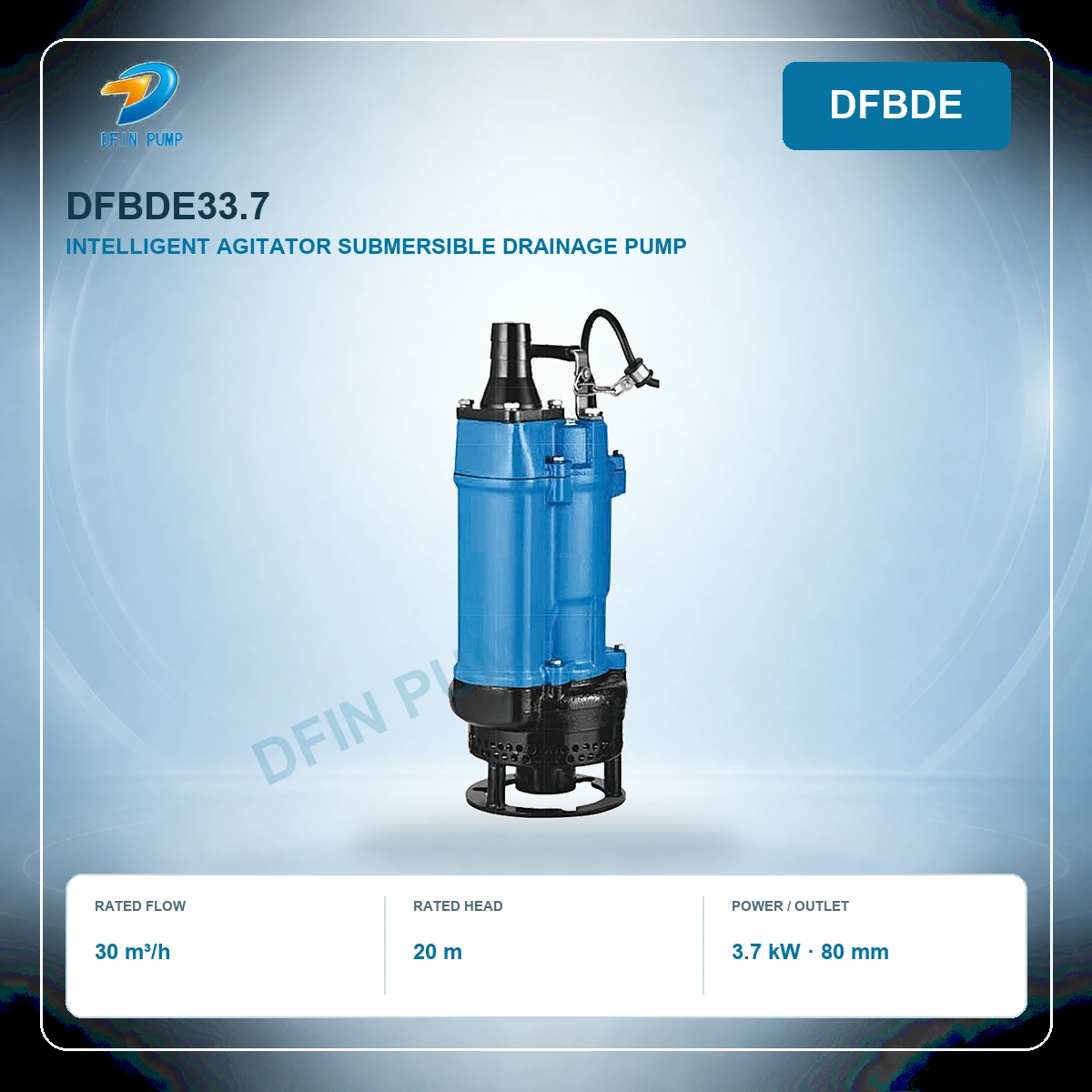

DFBDE33.7 Intelligent Agitator Submersible Drainage Pump - 80 mm Outlet
Model: DFBDE33.7
DFBDE33.7 intelligent agitator submersible drainage pump with 3.7 kW motor and 80 mm discharge. Catalog duty: 30 m³/h at 20 m; catalog maximum reference values reach 60 m³/h and 30 m.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
DFBDE33.7 product overview
Intelligent agitator submersible pump combining slurry-stirring hydraulics with integrated electrical and water-level protection for automatic muddy-water drainage.
This page is matched to the official DFIN DFBZ / DFBD series catalog. The listed duty values identify the exact 80 mm configuration; final selection must be checked against the required system curve, liquid and installation method.
Model-specific technical parameters
| Model | DFBDE33.7 |
|---|---|
| Series | DFBDE Intelligent Agitator Submersible Drainage Pump |
| Discharge outlet | 80 mm |
| Motor power | 3.7 kW |
| Rated current at 400 V | 7.7 A |
| Rated capacity | 30 m³/h |
| Rated head | 20 m |
| Catalog maximum capacity | 60 m³/h |
| Catalog maximum head | 30 m |
| Impeller passage | 10 mm |
| Standard supply | Three-phase 400 V ±10%, 50 Hz; 380 V ±10%, 60 Hz |
| Insulation | Class F |
| Protection | IP68 |
| Cable | 8 m |
| Temperature | Up to 40°C |
| Depth | Up to 25 m |
Construction and engineering advantages
- Integrated controller for phase, jam, overload and temperature protection
- Adjustable water-level sensor for automatic operation
- High-chromium-alloy impeller and agitator
- Fault-history assessment supports preventive maintenance
| Motor / pump body | Rigid cast iron |
|---|---|
| Rotor shaft | AISI 420 stainless steel |
| Mechanical seal | SiC-SiC / carbon-SiC configuration according to motor size |
| Bearings | Ball bearings |
| Hydraulic wear components | High-chromium alloy and/or ductile iron according to series |

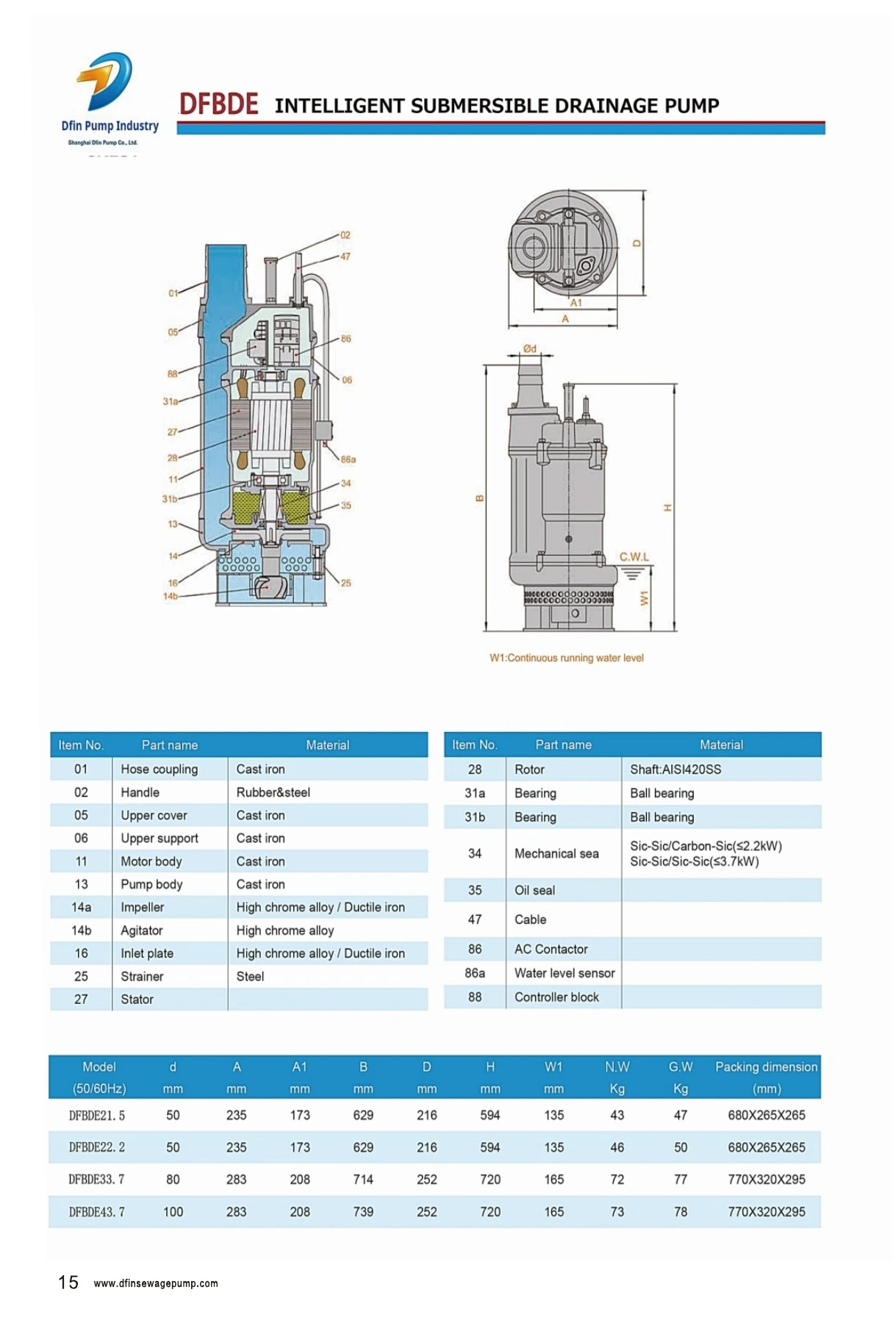

DFBDE construction, dimensions and model table
Open the high-resolution official catalog sheet to check cross-section, materials, installation dimensions, net weight, gross weight and packing size for the complete series.

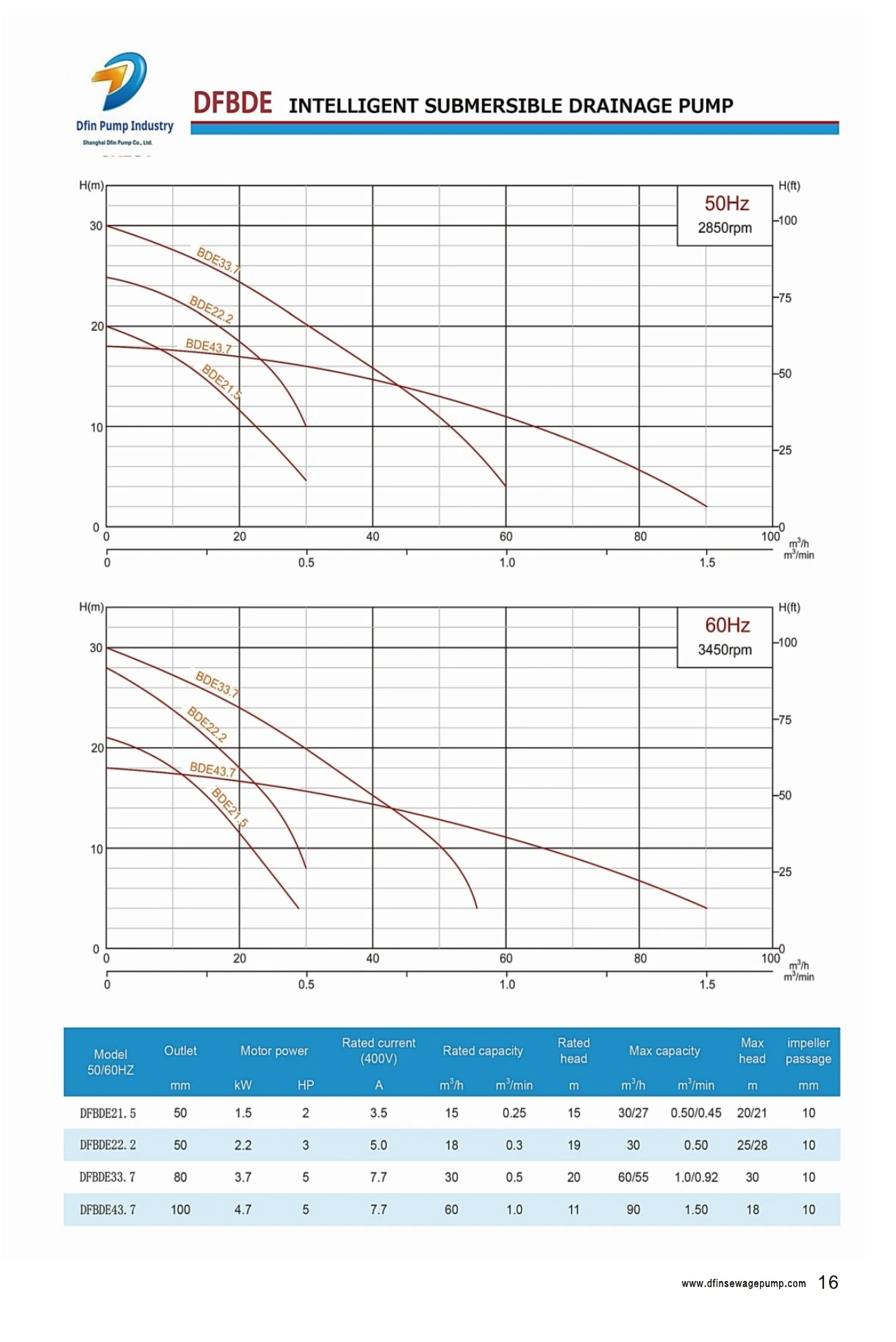

DFBDE performance curves
The catalog includes the applicable 50 Hz and 60 Hz curves. Maximum values are reference limits, not automatically the recommended continuous-duty point.
Download complete DFBZ / DFBD series catalog (PDF) ↓
Typical applications
- Automatic bentonite-slurry drainage
- Foundation and tunnelling works
- Mine and quarry sump drainage
- Sediment-laden wastewater transfer
Selection and ordering guide
- Provide the required flow and total dynamic head, including pipe and fitting losses.
- Describe the liquid, solids size, solids concentration, abrasiveness and temperature.
- Confirm sump depth, installation method, discharge connection and required cable length.
- Confirm voltage, frequency, control cabinet, level-control and intelligent-protection requirements.
- For slurry service, provide particle distribution and settling tendency so the agitator and wear materials can be verified.
Installation and service notes
Keep the pump within the minimum operating-water level shown in the catalog, verify rotation before continuous operation, and never lift the pump by its cable. Inspect the strainer, impeller, inlet plate or agitator, mechanical seals and cable entry at planned service intervals. Isolate power and pressure before maintenance.
