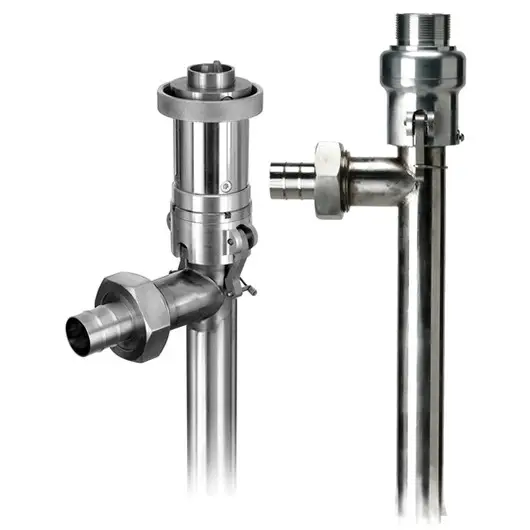

Reference image. Final construction follows the confirmed model and quotation.
Drum & Barrel Pumps
FTI HVDP-HR 316 stainless steel Drum Barrel Pumps
Model: Available on request
FTI HVDP-HR 316 stainless steel Drum Barrel Pumps HVDP-HR Drum Pumps Tube Material: 316 stainless steel Maximum Head: 300 ft (91 m) Maximum Flow: 9 gpm (32 lpm) Maximum Viscosity: 20,000 cP HVDP Series Drum/Barrel Pumps Drum/Barrel Pumps - HVDP-HR Drum Pumps This progressive cavity, positive displacement-style pump can handle viscous fluids up to 100,000 centipoise! The heavy duty HVDP offers multiple mechanical…
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
FTI HVDP-HR 316 stainless steel Drum Barrel Pumps
HVDP-HR Drum Pumps
Tube Material: 316 stainless steel
Maximum Head: 300 ft (91 m)
Maximum Flow: 9 gpm (32 lpm)
Maximum Viscosity: 20,000 cP
HVDP Series Drum/Barrel Pumps
Drum/Barrel Pumps - HVDP-HR Drum Pumps
This progressive cavity, positive displacement-style pump can handle viscous fluids up to 100,000
centipoise! The heavy duty HVDP offers multiple mechanical seal choices and materials options for
ultimate compatibility. Choose from the HR model (up to 20,000 cP) or the LR model (up to 100,000 cP).
FTI HVDP-HR 316 stainless steel Drum Barrel Pumps Features include:
Unique camlock feature for quick disassembly
Optional foot design for drums with liners
FDA-compliant options
Bellows Type 21 mechanical seal
FTI HVDP-HR 316 stainless steel Drum Barrel Pumps Applications
Waxes
Oils
Resins
Solvents
Adhesives
Silicone
Lotions
Honey
Juice concentrate
Hair & bath gel
Corn syrup
FTI HVDP-HR 316 stainless steel Drum Barrel Pump Specifications
| Available Lengths | 27, 40, 48 in (69, 102, 122 cm) |
|---|---|
| Tube Diameter | 2 in (5.1 cm) |
| Discharge Size | 1-1/2 in (3.8 cm) or 2 in (5.1 cm) |
| Discharge Types | Hose barb or tri-clamp |
| Hose Type | 1-1/2 in (3.8 cm) or 2 in (5.1 cm) |
| Electric Motor Only | |
|---|---|
| Maximum Flow | 9 gpm (32 lpm) |
| Maximum Head | 300 ft (91 m) |
| Maximum Specific Gravity | 1.8 |
| Maximum Viscosity | 20,000 cP |
| Tube Material | 316 stainless steel |
|---|---|
| Shaft Material | 316 stainless steel |
| Stator Materials | Buna, FKM, or PTFE |
| Seal Materials | Carbon, Ceramic, FKM, EPDM, SiC, Buna, or Kalrez® |
| O-ring Materials | Buna, FKM, EPDM, or PTFE encapsulated silicone |
| Maximum Temperature | 180º F (82º C) |
| Minimum Temperature | -20º F (-29º C) |
| Model | Certifications | Requirements | Input/Output (W) | RPM | Maximum Viscosity |
|---|---|---|---|---|---|
| M73 | QPS | 115V/60Hz | 1000/680 | 12,000 | 10,000 cP |
| M74 | CE | 230V/50-60Hz | 1000/680 | 12,000 | 10,000 cP |
| M75 | QPS | 115V/60Hz | 1000/680 | 0-12,000 | 20,000 cP |
| M76 | CE | 230V/50-60Hz | 1000/680 | 0-12,000 | 20,000 cP |
| Model | Certifications | Requirements | Input/Output (W) | RPM | Maximum Viscosity |
|---|---|---|---|---|---|
| M77 | QPS | 115V/60Hz | 1000/680 W | 0-12,000 | 20,000 cP |
| M78 | CE | 230V/50-60Hz | 1000/680 W | 0-12,000 | 20,000 cP |
* Carries independent testing laboratory approval.
** Input power for induction motors will vary by manufacturer.
* An air motor is a non-electrical device meaning possibility of explosion from igniting flammables is reduced.
† Suitable for hazardous areas that do not require independent verification.
