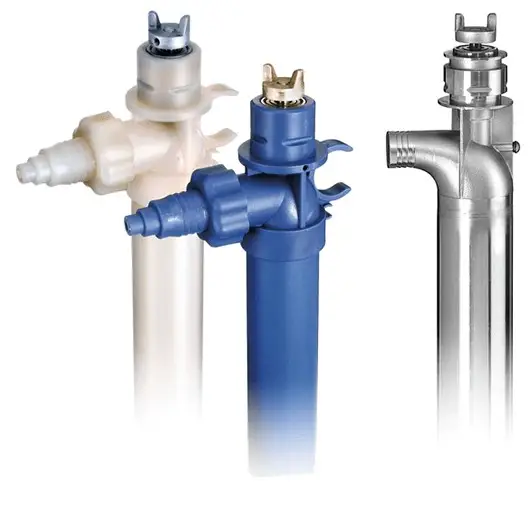

Reference image. Final construction follows the confirmed model and quotation.
Drum & Barrel Pumps
FTI PFS 316 stainless steel Barrel Drum Pumps
Model: Available on request
FTI PFS 316 stainless steel Barrel Drum Pumps PFS DRUM PUMPS TUBE MATERIAL: 316 STAINLESS STEEL MAX FLOW: 40 GPM (151 LPM) MAX HEAD: 80 FT (24 M)
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
FTI PFS 316 stainless steel Barrel Drum Pumps
PFS DRUM PUMPS
TUBE MATERIAL: 316 STAINLESS STEEL
MAX FLOW: 40 GPM (151 LPM)
MAX HEAD: 80 FT (24 M)
PF Series Drum/Barrel Pumps
Drum/Barrel Pumps - PFS Drum Pumps
Unique double suction impeller provides high flow and high head.
Featuring multiple material options and connections, the PF Series is designed for container-to-container
transfer of acids, corrosives, and chemicals.
FTI PFS 316 stainless steel Barrel Drum Pumps Features include:
Polypropylene, PVDF, or 316SS tubes
Interchangeable with motors
Up to 2000 cP
FDA-compliant option
FTI PFS 316 stainless steel Barrel Drum Pumps Applications
Acids
Bases
Solvents
Water treatment chemicals
Cleaners
Kidney dialysis solutions
DEF/AdBlue (diesel exhaust fluid)
FTI PFS 316 stainless steel Barrel Drum Pumps Specifications
| Available Lengths | 27, 40, 48, 54, 60, 72 in (69, 102, 122, 137, 152, 183 cm) |
|---|---|
| Tube Diameter | 2 in (5.1 cm) |
| Discharge Size | 1 in (2.54 cm) |
| Discharge Type | Hose barb, MNPT, FNPT, or Tri-clamp |
| Hose Size | 1 in (2.54 cm) |
| Electric Motor | Air Motor | |
|---|---|---|
| Maximum Flow | 40 gpm (151 lpm) | 22 gpm (83 lpm) |
| Maximum Head | 80 ft (24 m) | 38 ft (11.6 m) |
| Maximum Specific Gravity | 1.8 | 1.8 |
| Maximum Viscosity | 2000 cP | 330 cP |
| Tube Material | 316 stainless steel |
|---|---|
| Shaft Material | 316 stainless steel |
| O-ring Mateial | FKM, Buna, or FFKM |
| Impeller Material | ETFE |
| Maximum Temperature | 220º F (100º C) |
| Minimum Temperature | -20º F (-29º C) |
ODP (Open Drip Proof), Splashproof, IP24 Variable Speed Motors
ODP (Open Drip Proof), Splashproof, IP24 Variable Speed Motors| Model | Certifications | Requirements | Input/Output (W) | RPM | Maximum Viscosity |
|---|---|---|---|---|---|
| M3V | QPS | 115V/50-60Hz | 650/400 | 3,500-10,000 | 500 cP |
| M5V | CE | 230V/50-60Hz | 650/400 | 3,500-10,000 | 500 cP |
| M5V-US* | CE | 230V/50-60Hz | 650/400 | 3,500-10,000 | 500 cP |
| M3V-UK | CE | 115V/50-60Hz | 650/400 | 3,500-10,000 | 500 cP |
TEFC (Totally Enclosed Fan Cooled) IP55 Motors
| Model | Certifications | Requirements | Input/Output (W) | RPM | Maximum Viscosity |
|---|---|---|---|---|---|
| M3T | QPS | 115V/60Hz | 1000/680 | 12,000 | 1,000 cP |
| M5T | CE | 230V/50-60Hz | 1000/680 | 12,000 | 1,000 cP |
| M3TV | QPS | 115V/60Hz | 1000/680 | 0-12,000** | 2,000 cP |
| M5TV | CE | 230V/50-60Hz | 1000/680 | 0-12,000** | 2,000 cP |
** Variable Speed
| Model | Certifications | Requirements | Input/Output (W) | RPM | Maximum Viscosity |
|---|---|---|---|---|---|
| M3XV | QPS | 115V/60Hz | 1000/680 | 0-12,000** | 2,000 cP |
| M5XV† | CE | 230V/50-60Hz | 1000/680 | 0-12,000** | 2,000 cP |
** Variable speed
† ATEX certified option available. Contact factory for more information.
| Model | Certifications | Requirements | Input/Output (W) | RPM | Maximum Viscosity |
|---|---|---|---|---|---|
| M6† | CE | 80-100psi@15-32 cfm | 400 | 300-9,000 | 330 cP |
| M6X* | CE | 80-100psi@15-32 cfm | 600 | 300-6,000 | 330 cP |
* An air motor is a non-electrical device meaning possibility of explosion from igniting flammables is reduced.
† ATEX certified option available. Contact factory for more information.
