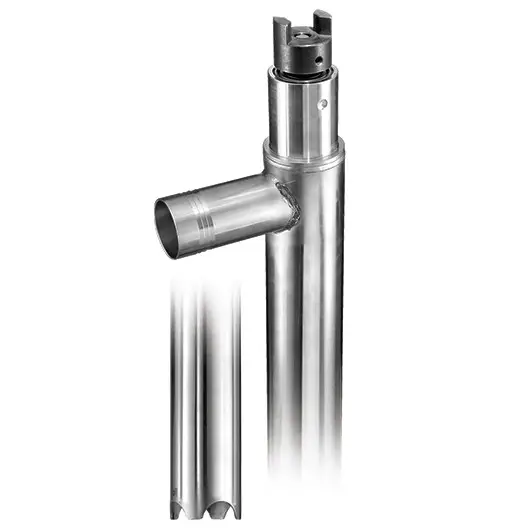

Reference image. Final construction follows the confirmed model and quotation.
Drum & Barrel Pumps
FTI TMS 316 stainless steel Drum Barrel Pumps
Model: Available on request
FTI TMS 316 stainless steel Drum Barrel Pumps TMS - Drum Mixer Tube Material: 316 stainless steel Max Circulation: 14 GPM (53 LPM) Max Viscosity: 1500 cP TM Series Drum/Barrel Pump Mixer Drum/Barrel Pumps - TMS – Drum Mixer The TM Series Drum Mixer is a 4-blade, turbine drum mixer ideal for mild corrosives, solvents, or flammables of light to medium viscosity.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
FTI TMS 316 stainless steel Drum Barrel Pumps
TMS - Drum Mixer
Tube Material: 316 stainless steel
Max Circulation: 14 GPM (53 LPM)
Max Viscosity: 1500 cP
TM Series Drum/Barrel Pump Mixer
Drum/Barrel Pumps - TMS – Drum Mixer
The TM Series Drum Mixer is a 4-blade, turbine drum mixer ideal for mild corrosives, solvents, or flammables of light to medium viscosity.
FTI TMS 316 stainless steel Drum Barrel Pumps Applications
Dyes
Inks
Paints
Stains
Mild corrosives
Solvents & flammables
FTI TMS 316 stainless steel Drum Barrel Pumps Specifications
| Available Lengths | 40 in (102 cm) |
|---|---|
| Tube Diameter | 2 in (5.1 cm) |
| Tube Material | 316 stainless steel |
| Shaft Material | 316 stainless steel |
| Center Bearing Material | PTFE |
| Maximum Temperature | 200º F (93º C) |
| Minimum Temperature | -20º F (-29º C) |
| Electric Motor | Air Motor | |
|---|---|---|
| Maximum Circulation | 14 gpm (53 lpm) | 14 gpm (53 lpm) |
| Maximum Specific Gravity | 1.8 | 1.8 |
| Maximum Viscosity | 100 cP | 1,500 cP |
| Model | Certifications | Requirements | Input/Output (W) | RPM | Maximum Viscosity |
|---|---|---|---|---|---|
| M7TV | QPS | 115V/60Hz | 450/250 | 0-6,000 | 100 cP |
| M8TV | CE | 230V/50-60Hz | 450/250 | 0-6,000 | 100 cP |
| Model | Certifications | Requirements | Input/Output (W) | RPM | Maximum Viscosity |
|---|---|---|---|---|---|
| M7XV | QPS | 115V/60Hz | 450/250 | 0-6,000 | 100 cP |
| M8XV | CE | 230V/50-60Hz | 450/250 | 0-6,000 | 100 cP |
| Model | Certifications | Requirements | Input/Output (W) | RPM | Maximum Viscosity |
|---|---|---|---|---|---|
| M6† | CE | 80-100psi@15-32 cfm | 400 | 300-9,000 | 1000 cP |
| M6X† | CE | 80-100psi@15-32 cfm | 600 | 300-6,000 | 1500 cP |
*† An air motor is a non-electrical device, reducing possibility of explosion from igniting flammables.
† Suitable for hazardous areas that do not require independent verification.
