Gear Pumps

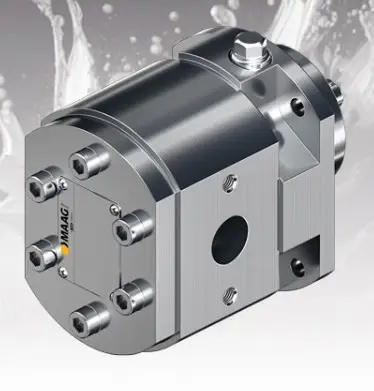

MAAG gear pumps Corrosion-resistant chemical transfer pumps flexinox for the chemical process industry
Model: Available on request
MAAG gear pumps Corrosion-resistant chemical transfer pumps flexinox for the chemica The MAAG flexinox™ is a corrosion-resistant conveying device that meets the stringent quality requirements of today's chemical processing industry. Its three-piece construction facilitates maintenance and replacement of internal parts, such as gears and bearings. The pump can be heated electrically or liquid-heated.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
MAAG gear pumps Corrosion-resistant chemical transfer pumps flexinox for the chemica
The MAAG flexinox™ is a corrosion-resistant conveying device that meets the stringent quality requirements
of today's chemical processing industry. Its three-piece construction facilitates maintenance and replacement
of internal parts, such as gears and bearings. The pump can be heated electrically or liquid-heated. With a
wide range of components and materials available, MAAG gear pumps can be configured to meet specific
customer requirements, significantly exceeding standard gear pumps in terms of performance and reliability.
The MAAG FQ "Quick Clean" version has been released for production facilities that require constant cleaning
and purging of conveyor lines at the end of each batch, for example, when using different colors or additives.
The pump can be quickly disassembled without removing the drive shaft from the drive motor and seals.
This feature can also be added to existing pump series with the optional FQ kit, or the FQ model can be selected directly.
The FQ version allows changes in production and maintenance methods without compromising desired operating
characteristics. It offers high flexibility and functionality, and is easy to maintain and replace parts.
Suitable for
Polymer Production
Pump Solutions (Industrial/Chemical Applications)
Your ideal partner, innovative in traditional technology to meet the demands of chemical and industrial processes, demands tailor-made solutions and adaptable products. With pumps manufactured from modular components, Maag has found a way to combine attractive price points with short delivery times. Achieving this level of performance exemplifies the progressive thinking that has characterized our corporate culture since its inception. Another benefit of modularity is that all components are field-proven for reliable, long-term operation. Our global service network provides expert technical advice to ensure uninterrupted machine operation. Whatever your process requirements, whether involving pressure, temperature, or viscosity, a Maag pump system is the right choice.
MAAG gear pumps Corrosion-resistant chemical transfer pumps flexinox for the chemica Advantages
Wide viscosity, temperature, and pressure range; Application-tailored clearance for increased efficiency; Precise
flow control; Self-priming capability; Excellent corrosion resistance; High reliability and long service life; Safe
and easy replacement of internal parts
Typical pumpable media (EN)
Organic and inorganic chemicals; Solvents; Acids and alkalis; Latex; Sludge and condensate; Prepolymers,
oligomers, and monomers (PAN); Additives; Resins; Cellulose derivatives and pulp; Silicone resins; Waxes
and paraffins; Cosmetics; Pharmaceutical products; Food extracts and flavorings; Gum bases; Vegetable
and animal fats and oils; Sulfur
MAAG gear pumps Corrosion-resistant chemical transfer pumps flexinox for the chemica Certifications (EN)
ATEX certificate
3.1 material certification
Performance test certificate
MAAG gear pumps Corrosion-resistant chemical transfer pumps flexinox for the chemica Options
Bidirectional operation
Special modifications for demanding applications
Customizable
Technical Data
Speed [rpm] max. 3,000
Differential pressure [bar] max. 100
Viscosity (mPas) 0.3–500,000
Temperature °C -30–320
Output l/min 0.4–139
Housing * Stainless steel * Hastelloy
Gear shaft * Stainless steel * Iron and aluminum * Hastelloy * Ceramic SSiC * High-tech polymer (upon request)
* Titanium (upon request)
Shaft seal * Single or double mechanical seal * Single or double balanced mechanical seal * Lip seal and
gland packing * Seal rings available in a variety of materials * Sealing or heating medium connections
available * Single or double shell magnetic coupling
Connections: SAE, CETOP, DIN, and ANSI flanges
Pump heating * Electrical pump heating available upon request * Integrated channels for heating/cooling with steam or liquid
