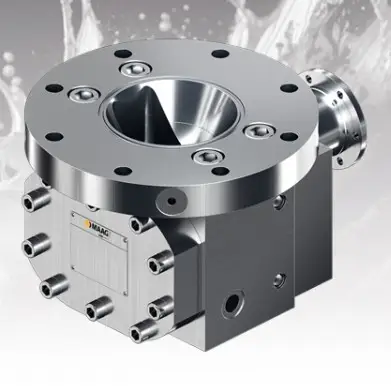

Reference image. Final construction follows the confirmed model and quotation.
Gear Pumps
MAAG gear pumps for chemicals and polymers Stainless steel reactor discharge pumps CINOX-V THERMINOX-V
Model: Available on request
MAAG gear pumps for chemicals and polymers Stainless steel reactor discharge pumps CINOX-V THERMINOX-V Designed for highly viscous fluids, they can be slowly extracted from reactors and vacuum exhausts even at low inlet pressures, ensuring good filling characteristics and short residence times during polymer production.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
MAAG gear pumps for chemicals and polymers Stainless steel reactor discharge pumps CINOX-V THERMINOX-V
Designed for highly viscous fluids, they can be slowly extracted from reactors and
vacuum exhausts even at low inlet pressures, ensuring good filling characteristics and short residence
times during polymer production.
This new polymer pump series combines the excellent flow characteristics of polymer pumps with the stringent requirements of the chemical industry.
MAAG gear pumps for chemicals and polymers Stainless steel reactor discharge pumps CINOX-V THERMINOX-V Advantages: Good filling characteristics due to enlarged inlet and good inlet geometry, low pulsation, application-specific clearances, higher efficiency, reliability, long service life, and safety.
MAAG gear pumps Typical Pumping Media (EN)
Organic and Inorganic Chemicals
Solvents
Acids and Alkalis
Latexes
Sludge and Condensate
Prepolymers, Oligomers, and Monomers (PAN)
Additives
Resins
Cellulose Derivatives and Pulp
Silicone
Waxes and Paraffins
Cosmetics
Pharmaceuticals
Food Extracts and Flavorings
Gum Bases
Animal and Vegetable Oils and Fats
Molten Sulfur
MAAG gear pumps Certifications (EN)
ATEX 3.1 Certificate
German Air Quality Certificate (TA-Luft)
Performance Test Certificate
MAAG gear pumps Options
Heated Seals
Bidirectional Operation
Special Modifications for Demanding Applications
MAAG gear pumps Technical Data
Speed [rpm] Max. 3,000
Differential Pressure [bar] Max. 200
Viscosity (mPas) 0.3 – 4,000,000
Temperature -30 – 320
Output l/min 0.1 – 2,400
Housing * Stainless Steel * Hastelloy
Gear Shaft * Stainless Steel * Iron/Aluminum * Hastelloy * Ceramic SSiC* High-tech polymer (upon request)*
Titanium (upon request)
Shaft seals * Single or double mechanical seals * Single or double mechanical balanced seals * Lip seals and
gland packings * Seal rings available in a variety of materials * Sealing or heating medium connections
available * Single or double shell electromagnetic couplings
Connections: SAE, CETOP, DIN, and ANSI flanges
Pump heating * Cinox® with optional electric heating cartridges * Therminox® with optional integrated
channels for heating/cooling via steam or liquid
