Gear Pumps

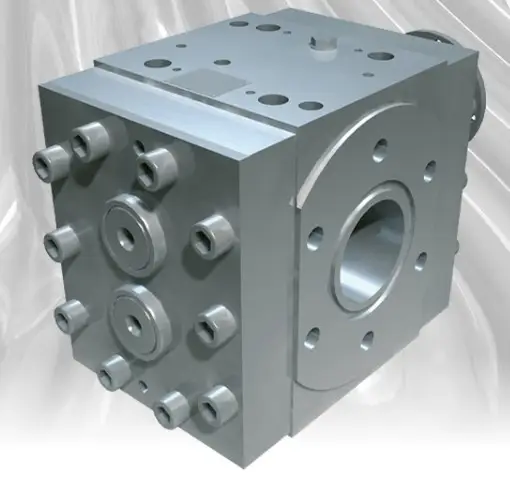

MAAG Gear Pumps High-Performance Extrusion Gear Pumps for Elastomer and Rubber Production Extrex® RV/RB
Model: Available on request
MAAG gear pump liquid oligomer special polymer delivery pump THERMOREX TRO/TRP Polymer processing and polymer applications require polymer transfer pumps that must continuously and reliably convey oligomers and prepolymers through the system. Liquid polymer pumps are ideally suited for low-viscosity applications. With THERMOREX TRP and TRO, reactor pressurization is no longer necessary.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
MAAG gear pump liquid oligomer special polymer delivery pump THERMOREX TRO/TRP
Polymer processing and polymer applications require polymer transfer pumps that must continuously and reliably convey oligomers and prepolymers through the system. Liquid polymer pumps are ideally suited for low-viscosity applications. With THERMOREX TRP and TRO, reactor pressurization is no longer necessary. Higher efficiency and a longer service life increase the productivity of MAAG polymer transfer pumps.
Your ideal partner, innovative in traditional technology to meet the demands of chemical and industrial processes, demands tailor-made solutions and adaptable products. With pumps manufactured from modular components, Maag has found a way to combine attractive price points with short delivery times. Achieving this level of performance exemplifies the progressive thinking that has characterized our corporate culture since its inception. Another benefit of modularity is that all components are field-proven for reliable, long-term operation. Our global service network provides expert technical advice to ensure uninterrupted machine operation. Whatever your process requirements, whether involving pressure, temperature, or viscosity, a Maag pump system is the right choice.
MAAG gear pump liquid oligomer special polymer delivery pump THERMOREX TRO/TRP Advantages
Optimized flow path, efficient self-cleaning properties, low-pulsation pumping at high differential pressures, compact design,
gentle pressure rise, minimal temperature rise, leak-free operation (depending on compound sensitivity)
MAAG gear pump liquid oligomer special polymer delivery pump THERMOREX TRO/TRP Typical pumpable media (EN)
Butadiene rubber
Chloroprene rubber
Ethylene-propylene-terpolymer rubber
Nitrile rubber
Styrene-butadiene rubber
Natural rubber
Other (on request)
Options
Differential tolerances
Application-specific material selection
Shaft cooling with contact protection
Bearing lubrication with internal recirculation
MAAG gear pump liquid oligomer special polymer delivery pump THERMOREX TRO/TRP Technical Data
Differential pressure [bar] extrex RV: max. 250 | extrex RB: max. 350
Viscosity (Pas) max. 30,000
Temperature °C max. 130
Housing: Alloy steel
Gear shaft: Nitrided tool steel, prepared for shaft cooling
Shaft seal: Alloy steel
Pump heating: Liquid temperature control
