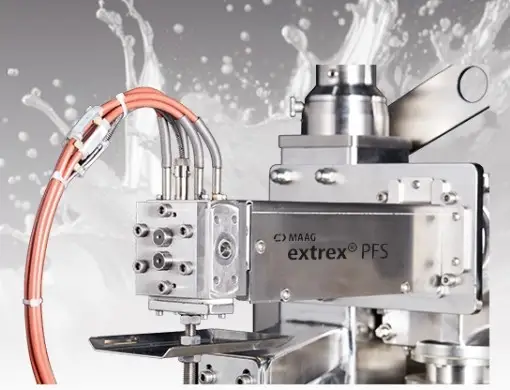

Reference image. Final construction follows the confirmed model and quotation.
Gear Pumps
MAAG Gear Pumps Hot Melt Extrusion Gear Pumps for the Pharmaceutical Industry - extrex PFS
Model: Available on request
MAAG Gear Pumps Hot Melt Extrusion Gear Pumps for the Pharmaceutical Industry - extrex PFS The extrex® PFS gear pump is designed specifically for applications in the pharmaceutical industry. These applications place special demands on its design characteristics: high discharge pressure, constant throughput, gentle conveying, and a narrow temperature range.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
MAAG Gear Pumps Hot Melt Extrusion Gear Pumps for the Pharmaceutical Industry - extrex PFS
The extrex® PFS gear pump is designed specifically for applications in the pharmaceutical industry.
These applications place special demands on its design characteristics: high discharge pressure, constant
throughput, gentle conveying, and a narrow temperature range. It is in this environment that the proven
extrex® gear pump reaches its full potential.
Suitable for
Extrusion and granulation in the pharmaceutical industry
Your ideal partner, innovative in traditional technology to meet the demands of chemical and industrial processes, demands tailor-made solutions and adaptable products. With pumps manufactured from modular components, Maag has found a way to combine attractive price points with short delivery times. Achieving this level of performance exemplifies the progressive thinking that has characterized our corporate culture since its inception. Another benefit of modularity is that all components are field-proven for reliable, long-term operation. Our global service network provides expert technical advice to ensure uninterrupted machine operation. Whatever your process requirements, whether involving pressure, temperature, or viscosity, a Maag pump system is the right choice.
MAAG Gear Pumps Hot Melt Extrusion Gear Pumps for the Pharmaceutical Industry - extrex PFS Technical Data
Technical Data extrex®
20GP
extrex®
21GP
extrex®
22GP
extrex®
28GP
extrex®
36GP
Specific Volume [cm³/U]: 1.3 2.8 4.7 10.2 25.6
Differential Pressure Δp: Max. 250 bar Max. 250 bar Max. 250 bar Max. 250 bar Max. 250 bar
Temperature Range: 30° to 200°C 30° to 200°C 30° to 200°C 30° to 200°C 30° to 200°C
Viscosity: Max. 30,000 Pas Max. 30,000 Pas Max. 30,000 Pas Max. 30,000 Pas
MAAG Gear Pumps Hot Melt Extrusion Gear Pumps for the Pharmaceutical Industry - extrex PFS Applications
Production of microparticles without grinding
Blending of high-viscosity carriers/active ingredients
Coextrusion applications for uniform layer thickness
Process monitoring via pressure and temperature sensors
Extrusion from extruders or reaction vessels
