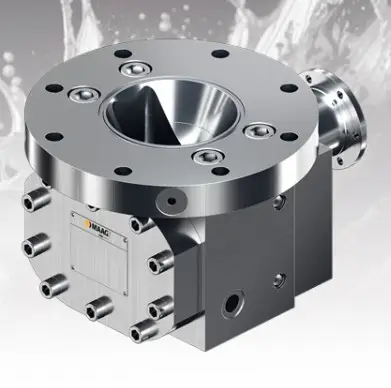

Reference image. Final construction follows the confirmed model and quotation.
Gear Pumps
MAAG Gear Pumps Polymer Compounding Corrosion-Resistant Chemical Transfer Gear Pumps Cinox Therminox
Model: Available on request
MAAG Gear Pumps Polymer Compounding Corrosion-Resistant Chemical Transfer Gear Pumps Cinox Therminox The Cinox and Therminox chemical transfer gear pumps are corrosion-resistant, heatable stainless steel pumps designed to meet the stringent quality requirements of today's chemical processing industry.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
MAAG Gear Pumps Polymer Compounding Corrosion-Resistant Chemical Transfer Gear Pumps Cinox Therminox
The Cinox and Therminox chemical transfer gear pumps are corrosion-resistant, heatable stainless steel
pumps designed to meet the stringent quality requirements of today's chemical processing industry.
Whether the application involves high-purity, corrosive, viscous, or high-temperature media, MAAG
polymer production pump systems can solve every pumping challenge. The Cinox and Therminox
pumps are particularly well-suited for medium- to high-flow applications.
Suitable for
Polymer Production
Pump Solutions (Industrial/Chemical Applications)
Your ideal partner, innovative in traditional technology to meet the demands of chemical and industrial processes, demands tailor-made solutions and adaptable products. With pumps manufactured from modular components, Maag has found a way to combine attractive price points with short delivery times. Achieving this level of performance exemplifies the progressive thinking that has characterized our corporate culture since its inception. Another benefit of modularity is that all components are field-proven for reliable, long-term operation. Our global service network provides expert technical advice to ensure uninterrupted machine operation. Whatever your process requirements, whether involving pressure, temperature, or viscosity, a Maag pump system is the right choice.
MAAG Gear Pumps Polymer Compounding Corrosion-Resistant Chemical Transfer Gear Pumps Cinox Therminox Advantages
Wide viscosity, temperature, and pressure ranges; High efficiency (tolerances vary depending on application);
Precise displacement volume; Self-priming; Corrosion-resistant; Reliable; Long service life; Safe
MAAG Gear Pumps Polymer Compounding Corrosion-Resistant Chemical Transfer Gear Pumps Cinox Therminox
Various typical pumpable media (EN)
Prepolymers, oligomers, and monomers
Coatings
Spandex
Resins
Adhesives
Silicone
Wax and paraffin waxes
Emulsifiers
Gum base
Certifications (EN)
ATEX certificate
3.1 certificate
German air quality certificate (TA-Luft)
Performance test certificate
Optional
Electrical heating
Heated product flange
MAAG Gear Pumps Polymer Compounding Corrosion-Resistant Chemical Transfer Gear Pumps Cinox Therminox Technical Data
Speed [rpm] max. 1,500
Differential pressure [bar] max. 200
Viscosity (mPas) 0.3 – 4,000,000
Temperature °C -30 – 320
Output l/min 2.5 – 265
Housing: Stainless steel
Gear shaft: Stainless steel
Shaft seal: * Double mechanical seal
Interlock or heater connection optional
Seal rings available in various materials
Gland gland throttling (optionally spring-loaded)
Connections Flange (other options) ANSI, DIN
