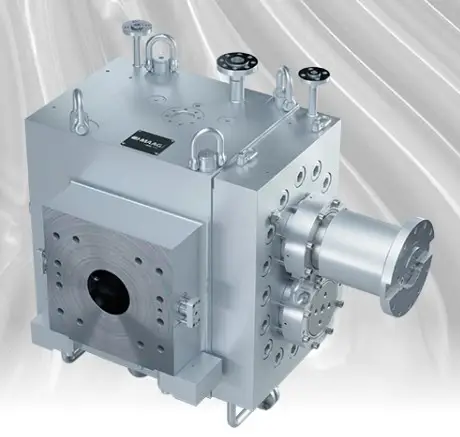

Reference image. Final construction follows the confirmed model and quotation.
Gear Pumps
MAAG gear pumps Polymer metering pumps for polymer processing Polyrex PR
Model: Available on request
MAAG gear pumps Polymer metering pumps for polymer processing Polyrex PR Designed for highly viscous fluids, they can be slowly extracted from reactors and vacuum exhausts even at low inlet pressures, ensuring good filling characteristics and short residence times during polymer production.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
MAAG gear pumps Polymer metering pumps for polymer processing Polyrex PR
Polyolefin production requires high-pressure gear pumps, which boost pressure downstream of the compounder. The new performance drive geometry of the Polyrex x6 grade enables high productivity at high flow rates and low shear stress. Polyrex⁶ can pump low-viscosity polymers in applications where previous pumps were impractical. This improved performance in polymer processing results in a 50% increase in pumping capacity compared to its predecessor of the same size. To de-bottlenecking existing equipment, MAAG offers alternative housing designs that match the interfaces of previous pumps.
Your ideal partner, innovative in traditional technology to meet the demands of chemical and industrial processes, demands tailor-made solutions and adaptable products. With pumps manufactured from modular components, Maag has found a way to combine attractive price points with short delivery times. Achieving this level of performance exemplifies the progressive thinking that has characterized our corporate culture since its inception. Another benefit of modularity is that all components are field-proven for reliable, long-term operation. Our global service network provides expert technical advice to ensure uninterrupted machine operation. Whatever your process requirements, whether involving pressure, temperature, or viscosity, a Maag pump system is the right choice.
MAAG gear pumps Polymer metering pumps for polymer processing Polyrex PR Typical Pumping Media (EN)
Low-Density Polyethylene (LDPE)
Linear Low-Density Polyethylene (LLDPE)
High-Density Polyethylene (HDPE)
Polypropylene (PP)
EPDM
Other
MAAG gear pumps Polymer metering pumps for polymer processing Polyrex PR Technical Data
Speed [rpm] Max. 85
Torque (Nm) Max. 1,625,000
Differential Pressure [bar] Max. 320
Viscosity (mPas) 20,000,000
Temperature [°C] Up to 350
Output [l/min] Max. 1,650
Housing: Stainless Steel/Carbon Steel
Gear Shaft: Nitrided Steel/Tool Steel
Shaft Seal: Viscoseal
Pump Heating: Maximum Heat Transfer Medium Temperature 350°C, Maximum Pressure 40 Bar
Mounting: Polyrex gear pumps are mounted to extruders or mixers via adapters and flanges.
