Pneumatic Diaphragm Pumps

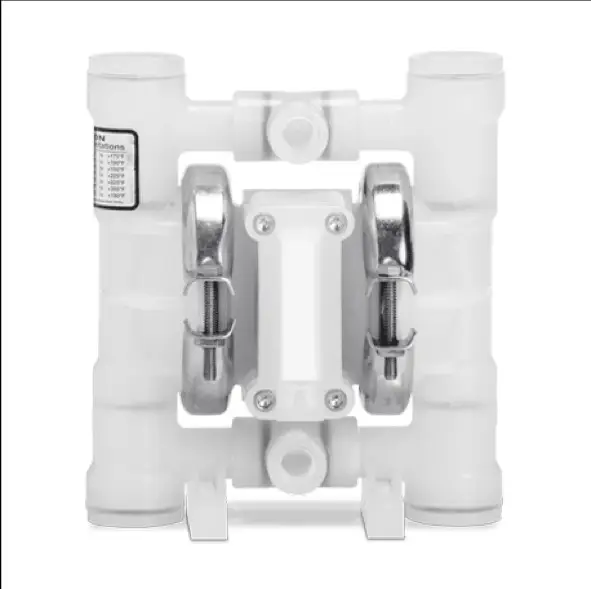

P.025/KKPPP/WFS/TF/KTV 00-9910 Wilden Pvdf Polypropylene Diaphragm Pump
Model: Available on request
P.025/KZPPP/TNL/TF/KTV Wilden Polypropylene Diaphragm Pump WILDEN Pump Description P.025/KKPPP/WFS/TF/KTV Item Number Pump 00-9910 Port Size 1/4" Air Kit NAK Wet Kit NME Air Distribution System Pro-Flo® Pump Construction Pvdf Diaphragms Wil-Flex Valve/ Balls Teflon Valve Seats Pvdf with Ptfe Encapsulated Viton Outer Piston Pvdf Air Chamber Polypropylene Center Block Polypropylene Air Valve Polypropylene Capacity GPM…
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
P.025/KZPPP/TNL/TF/KTV Wilden Polypropylene Diaphragm Pump
| WILDEN Pump Description | P.025/KKPPP/WFS/TF/KTV |
|---|---|
| Item Number Pump | 00-9910 |
| Port Size | 1/4" |
| Air Kit | NAK |
| Wet Kit | NME |
| Air Distribution System | Pro-Flo® |
| Pump Construction | Pvdf |
| Diaphragms | Wil-Flex |
| Valve/ Balls | Teflon |
| Valve Seats | Pvdf with Ptfe Encapsulated Viton |
| Outer Piston | Pvdf |
| Air Chamber | Polypropylene |
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
| Capacity GPM | 4 |
| Capacity Liters/min | 18 |
| Pump Weight Lbs | 4,1 |
| Pump Weight Kilo | 1 |
| Specialty Code | #N/A |
| P.025/AMLLL/BNS/TF/ABN |
| P.025/AMLLL/WFS/TF/ATF/0014 |
| P.025/AMPPP/BNS/TF/ABN |
| P.025/AMPPP/BNS/TF/ABN/0014 |
| P.025/AMPPP/WFS/TF/ATF |
| P.025/AMPPP/WFS/TF/ATF/0014 |
| P.025/AZLLL/TNL/TF/ATF |
| P.025/AZPPP/TEL/TF/ATF |
| P.025/AZPPP/TNL/TF/ATF |
| P.025/AZPPP/TNL/TF/ATF/0014 |
| P.025/KKPPP/BNS/TF/KBN |
| P.025/KKPPP/WFS/TF/KTV |
| P.025/KKPPP/WFS/TF/KWF |
| P.025/KKPPP/WFS/TF/KWF/0502 |
| P.025/KZPPP/TEL/TF/KTV |
| P.025/KZPPP/TNL/TF/KTV |
| P.025/KZPPP/TNL/TF/KTV/0310 |
| P.025/KZPPP/TNL/TF/KTV/0502 |
| P.025/PPPPP/BNS/TF/PBN |
| P.025/PPPPP/BNS/TF/PBN/0502 |
| P.025/PPPPP/EPS/TF/PTV |
| P.025/PPPPP/WFS/SS/PWF |
| P.025/PPPPP/WFS/TF/KTV |
| P.025/PPPPP/WFS/TF/KWF |
| P.025/PPPPP/WFS/TF/PTV |
| P.025/PPPPP/WFS/TF/PWF |
| P.025/PPPPP/WFS/TF/PWF/0502 |
| P.025/PZPPP/TEL/TF/PTV |
| P.025/PZPPP/TNL/TF/KTV |
| P.025/PZPPP/TNL/TF/KTV/0502 |
| P.025/PZPPP/TNL/TF/PTV |
| P.025/PZPPP/TNL/TF/PTV/0310 |
| P.025/PZPPP/TNL/TF/PTV/0502 |
| P.025/PZPPP/TNL/TF/PWF |
| P.025/SSPPP/BNS/TF/SBN |
| P.025/SSPPP/BNS/TF/SBN/0014 |
| P.025/SSPPP/WFS/TF/SWF |
| P.025/SSPPP/WFS/TF/SWF/0014 |
| P.025/SZLLL/TNL/TF/STV |
| P.025/SZLLL/TNL/TF/STV/0014 |
| P.025/SZPPP/TEL/TF/STV/0481 |
| P.025/SZPPP/TNL/TF/STV |
| P.025/SZPPP/TNL/TF/STV/0014 |
| P.025/SZPPP/TNL/TF/STV/0670 |
P.025/KZPPP/TN/KL/TF/KTV Wilton Diaphragm Pump:
Material of liquid contact:
Polypropylene transport weight: 1.4 kg (3 lbs);
Elastomer material:
Diaphragm material: Wil-FlexTM
Non-liquid-to-liquid material:
Intermediate part: polypropylene, acetal;
Air valve: polypropylene, acetal;
P.025/KZPPP/TN/KL/TF/KTV Wilton Diaphragm Pump Performance Parameters:
Media import dimensions: 1/4” (6 mm);
Media outlet dimensions: 1/4” (6 mm);
Air inlet size: 1/8” (3mm);
Maximum outlet pressure: 8.6 Bar (125 psig);
Maximum solid particle diameter can be passed: 1/64” (0.4 mm);
Maximum traffic:
Rubber/thermoplastic compound: 18.1 lpm (4.8 gpm);
Teflon PTFE: 18.1 lpm (4.8 gpm);
Maximum suction range:
Rubber/thermoplastic compounds: dry suction 3.1 m (10.0’), wet suction 9.5 m (31.0’);
Teflon PTFE: dry suction 2.4 m (8.0’), wet suction 8.8 m (29.0’);
