Pneumatic Diaphragm Pumps

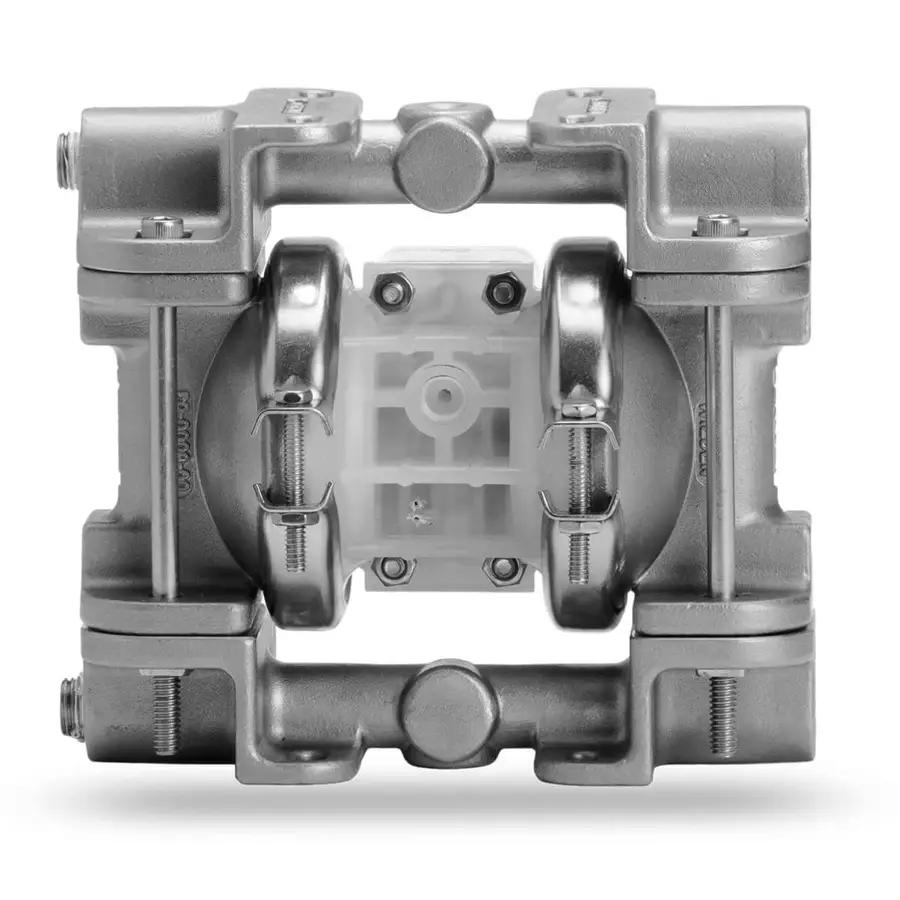

P.025/SZPPP/TNL/TF/STV PTFE 00-9733 AODD Pump, Stainless Steel
Model: Available on request
AODD Pump, Stainless Steel, 1/4" Pro-Flo®, Clamped, Threaded, w/ PTFE Item: 00-9733 Description: P.025/SZPPP/TNL/TF/STV Key Specifications discharge orientation: side right inlet orientation: side right discharge size (in.): 0.25 default max diameter solids (in.): 0.02 max flow rate (gpm): 5.0 inlet size (in.): 0.25 max diameter solids (in.): 0.02 The Wilden® 00-9733, a 0.25" Pro-Flo® clamped AODD pump built from…
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
AODD Pump, Stainless Steel, 1/4" Pro-Flo®, Clamped, Threaded, w/ PTFE
Item: 00-9733
Description: P.025/SZPPP/TNL/TF/STV
Key Specifications
discharge orientation: side right
inlet orientation: side right
discharge size (in.): 0.25
default max diameter solids (in.): 0.02
max flow rate (gpm): 5.0
inlet size (in.): 0.25
max diameter solids (in.): 0.02
The Wilden® 00-9733, a 0.25" Pro-Flo® clamped AODD pump built from Stainless Steel with PTFE|Neoprene diaphragms and PTFE ball valves, delivers up to 5 GPM at 125 PSI across fluid transfer systems. The PTFE IPD reduced-stroke diaphragm design ensures accuracy and sustainability in slurry, abrasive, or viscous applications (up to 125000 cP). Configured with threaded NPT side-right inlet and threaded NPT side-right discharge, designed to meet the needs of many industries, from manufacturing to processing and beyond. CE|UKCA certified.
| WILDEN Pump Description | P.025/SZPPP/TNL/TF/STV |
|---|---|
| Item Number Pump | 00-9733 |
| Port Size | 1/4" |
| Air Kit | NAK |
| Wet Kit | NWK |
| Air Distribution System | Pro-Flo® |
| Pump Construction | Stainless Steel |
| Diaphragms | Ptfe, Neoprene Back-Up, O-ring, IPD |
| Valve/ Balls | Teflon |
| Valve Seats | SS with Ptfe Encapsulated Viton |
| Outer Piston | None |
| Air Chamber | Polypropylene |
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
| Capacity GPM | 4 |
| Capacity Liters/min | 18 |
| Pump Weight Lbs | 10,7 |
| Pump Weight Kilo | 4 |
| Specialty Code | #N/A |
