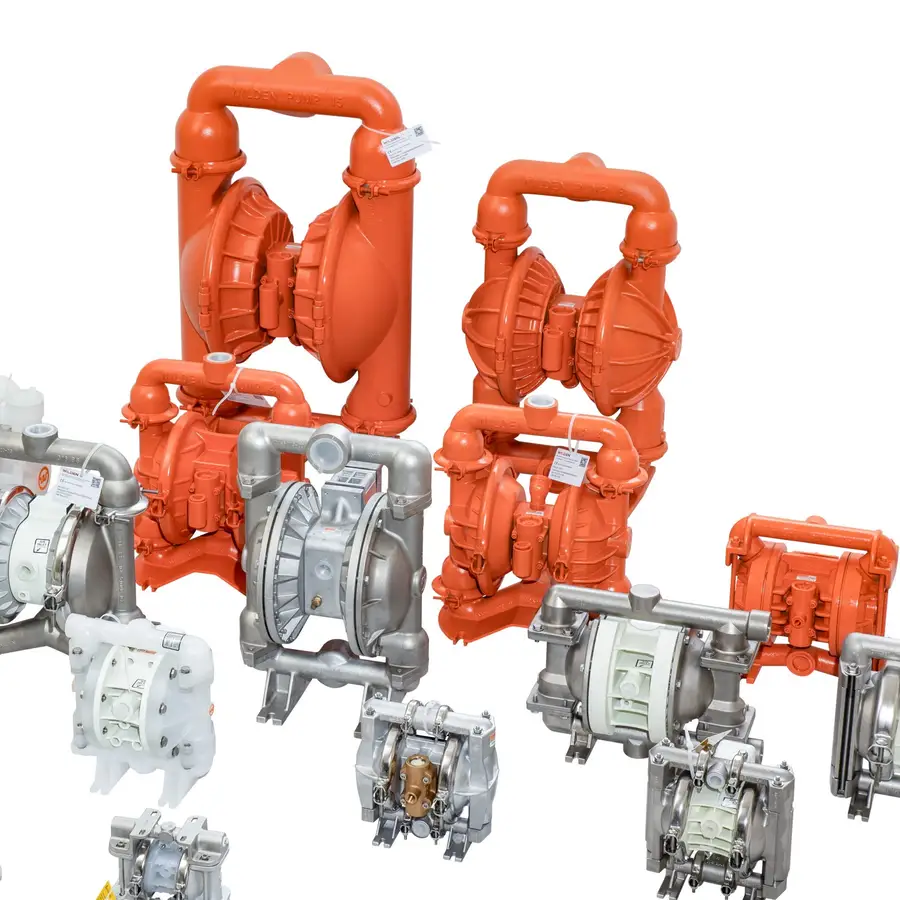

Reference image. Final construction follows the confirmed model and quotation.
Pneumatic Diaphragm Pumps
P100/PPPPP/TNU/TF/KTV/0014 Wilden Polypropylene Diaphragm Pump
Model: P100/PPPPP/TNU/TF/KTV/0014
P100/PPPPP/TNU/TF/KTV/0014 Wilden Polypropylene Diaphragm Pump P100/PPPP/TNU/TF/KTV/0014 Wilton Diaphragm Pump Specifications: Material of liquid contact: Polypropylene transport weight: 4 kg (9 lbs); Polyvinylidene Fluoride transport weight: 5 kg (11 lbs); Elastomer material: Nitrile rubber, SaniflexTM, polyimine esters, Teflon PTFE, fluorinated rubber, Wil-FlexTM;
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
P100/PPPPP/TNU/TF/KTV/0014 Wilden Polypropylene Diaphragm Pump
P100/PPPP/TNU/TF/KTV/0014 Wilton Diaphragm Pump Specifications:
Material of liquid contact:
Polypropylene transport weight: 4 kg (9 lbs);
Polyvinylidene Fluoride transport weight: 5 kg (11 lbs);
Elastomer material:
Nitrile rubber, SaniflexTM, polyimine esters, Teflon PTFE, fluorinated rubber, Wil-FlexTM;
Non-liquid-to-liquid material:
Intermediate part: polypropylene;
Air valve: polypropylene;
P100/PPPP/TNU/TF/KTV/0014 Wilton Diaphragm Pump Performance Parameters:
Media import dimensions: 1/2” (13 mm);
Media outlet dimensions: 1/2” (13 mm);
Air inlet size: 1/4” (6 mm);
Maximum outlet pressure: 8.6 Bar (125 psig);
The maximum solid particle diameter can be passed: 1/16” (1.6mm);
Maximum traffic:
Rubber/thermoplastic compound: 58.7 lpm (15.5 gpm);
Teflon PTFE: 57.0lpm (15.0gpm);
Maximum suction range:
Rubber/thermoplastic compounds: dry suction 5.2 m (17.0’), wet suction 8.7 m (28.4’);
Teflon PTFE: dry suction 4.5 m (14.7’), wet suction 9.3 m (30.6’);
