Pneumatic Diaphragm Pumps

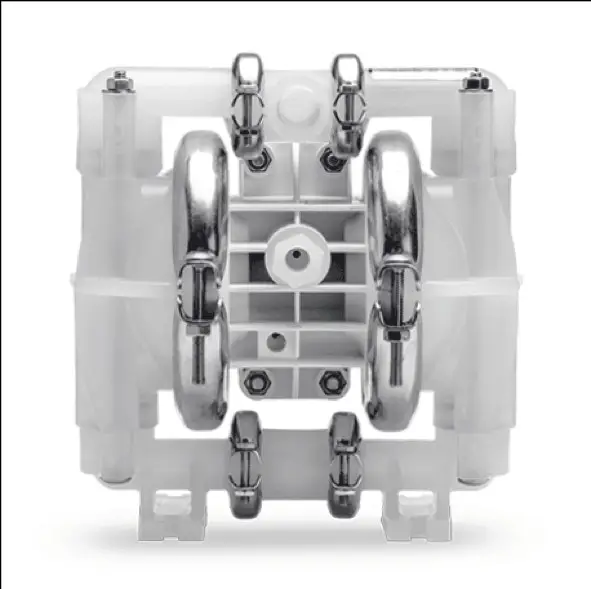

P1/PPPPP/TNU/TF/KTV/0102 Polypropylene Pneumatic diaphragm pumps
Model: P1/PPPPP/TNU/TF/KTV/0102
P1/PPPPP/TNU/TF/KTV/0102 Polypropylene Pneumatic diaphragm pumps WILDEN Pump Description P1/PPPPP/TNU/TF/KTV/0102 Item Number Pump 01-10428 Port Size 1/2" Air Kit 01-9985-20 Wet Kit 01-9805-55 Air Distribution System Pro-Flo® Pump Construction Polypropylene Diaphragms Ptfe with Neoprene Back-Up Valve/ Balls Teflon Valve Seats Pvdf with Ptfe Encapsulated Viton Outer Piston Polypropylene Air Chamber Polypropylene…
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
P1/PPPPP/TNU/TF/KTV/0102 Polypropylene Pneumatic diaphragm pumps
| WILDEN Pump Description | P1/PPPPP/TNU/TF/KTV/0102 |
|---|---|
| Item Number Pump | 01-10428 |
| Port Size | 1/2" |
| Air Kit | 01-9985-20 |
| Wet Kit | 01-9805-55 |
| Air Distribution System | Pro-Flo® |
| Pump Construction | Polypropylene |
| Diaphragms | Ptfe with Neoprene Back-Up |
| Valve/ Balls | Teflon |
| Valve Seats | Pvdf with Ptfe Encapsulated Viton |
| Outer Piston | Polypropylene |
| Air Chamber | Polypropylene |
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
| Capacity GPM | 14 |
| Capacity Liters/min | 53 |
| Pump Weight Lbs | 9,0 |
| Pump Weight Kilo | 4 |
| Specialty Code | Wil-Gard sensor wires ONLY |
| P1/AALLL/BNS/BN/ABN |
| P1/AALLL/BNS/BN/ABN/0014 |
| P1/AALLL/BNS/VT/ABN/0014 |
| P1/AALLL/BNS/VT/ABN/0246 |
| P1/AALLL/TNU/TF/ATF |
| P1/AALLL/TNU/TF/ATF/0014 |
| P1/AALLL/VTS/VT/ATF |
| P1/AALLL/VTS/VT/ATF/0014 |
| P1/AALLL/WFS/TF/AWF/0014 |
| P1/AALLL/WFS/WF/AWF |
| P1/AAPPP/BNS/BN/ABN |
| P1/AAPPP/BNS/BN/ABN/0014 |
| P1/AAPPP/BNS/BN/SBN |
| P1/AAPPP/BNS/TF/SBN/0014 |
| P1/AAPPP/EPS/EP/AEP |
| P1/AAPPP/EPS/EP/AEP/0014 |
| P1/AAPPP/FSS/FS/AFS |
| P1/AAPPP/FSS/FS/AFS/0014 |
| P1/AAPPP/FSS/PU/SPU |
| P1/AAPPP/FSS/TF/AFS |
| P1/AAPPP/TEU/TF/ATF |
| P1/AAPPP/TNU/TF/ATF |
| P1/AAPPP/TNU/TF/ATF/0014 |
| P1/AAPPP/VTS/VT/ATF |
| P1/AAPPP/VTS/VT/ATF/0014 |
| P1/AAPPP/WFS/TF/AWF |
| P1/AAPPP/WFS/WF/AWF |
| P1/AAPPP/WFS/WF/AWF/0014 |
| P1/AAPPP/WFS/WF/SWF |
| P1/AAPPP/WFS/WF/SWF/0014 |
| P1/KKPPP/BNS/BN/KBN |
| P1/KKPPP/FSS/FS/KTV |
| P1/KKPPP/TEU/TF/KTV |
| P1/KKPPP/TNU/TF/KTV |
| P1/KKPPP/TNU/TF/KTV/0502 |
| P1/KKPPP/TNU/TF/KTV/0635 |
| P1/KKPPP/TNU/VT/KTV |
| P1/KKPPP/VTS/VT/KTV |
| P1/KKPPP/VTS/VT/VT |
| P1/KKPPP/WFS/TF/KTV |
| P1/KKPPP/WFS/TF/KWF |
| P1/KKPPP/WFS/WF/KTV |
| P1/KKPPP/WFS/WF/KTV/0502 |
| P1/KKPPP/WFS/WF/KWF |
| P1/KZPPP/TNL/TF/KTV |
| P1/PPPPP/BNS/BN/KBN |
| P1/PPPPP/BNS/BN/KBN/0490 |
| P1/PPPPP/BNS/BN/KWF |
| P1/PPPPP/BNS/TF/KBN |
| P1/PPPPP/EPS/EP/KTV |
| P1/PPPPP/EPS/TF/KTV |
| P1/PPPPP/FSS/FS/KFS |
| P1/PPPPP/FSS/TF/KFS |
| P1/PPPPP/PUS/PU/KPU |
| P1/PPPPP/TEU/TF/KTV |
| P1/PPPPP/TNU/TF/KTV |
| P1/PPPPP/TNU/TF/KTV/0480 |
| P1/PPPPP/TNU/TF/KTV/0490 |
| P1/PPPPP/TNU/TF/KTV/0502 |
| P1/PPPPP/TNU/TF/KWF |
| P1/PPPPP/TNU/TF/VT |
| P1/PPPPP/TNU/VT/KTV/0502 |
| P1/PPPPP/TVU/TF/KTV |
| P1/PPPPP/VTS/TF/KTV |
| P1/PPPPP/VTS/VT/KTV |
| P1/PPPPP/VTS/VT/VT |
| P1/PPPPP/WFS/TF/KTV |
| P1/PPPPP/WFS/TF/KWF |
| P1/PPPPP/WFS/TF/KWF/0490 |
| P1/PPPPP/WFS/WF/KTV |
| P1/PPPPP/WFS/WF/KWF |
| P1/PZPPP/TNL/TF/KTV |
| P1/SSLLL/TNU/TF/STF |
| P1/SSLLL/TNU/TF/STF/0014 |
| P1/SSLLL/TSU/TF/STF/0070 |
| P1/SSLLL/WFS/WF/SWF/0014 |
| P1/SSPPP/BNS/BN/SBN |
| P1/SSPPP/BNS/BN/SBN/0014 |
| P1/SSPPP/BNS/TF/STF |
| P1/SSPPP/EPS/EP/SEP |
| P1/SSPPP/EPS/EP/SEP/0014 |
| P1/SSPPP/FSS/FS/SFS |
| P1/SSPPP/FSS/FS/SFS/0014 |
| P1/SSPPP/FSS/FS/SFS/0070 |
| P1/SSPPP/FSS/TF/SFS/0070 |
| P1/SSPPP/TEU/TF/STF |
| P1/SSPPP/TEU/TF/STF/0070 |
| P1/SSPPP/TNU/TF/STF |
| P1/SSPPP/TNU/TF/STF/0014 |
| P1/SSPPP/TNU/TF/STF/0080 |
| P1/SSPPP/TNU/TF/STF/0100 |
| P1/SSPPP/TSU/TF/STF |
| P1/SSPPP/TSU/TF/STF/0070 |
| P1/SSPPP/TSU/TF/STF/0079 |
| P1/SSPPP/TVU/TF/STF |
| P1/SSPPP/TVU/TF/STF/0079 |
| P1/SSPPP/VTS/TF/STF |
| P1/SSPPP/VTS/VT/STF |
| P1/SSPPP/VTS/VT/STF/0014 |
| P1/SSPPP/WFS/WF/SWF |
| P1/SSPPP/WFS/WF/SWF/0014 |
