Pneumatic Diaphragm Pumps

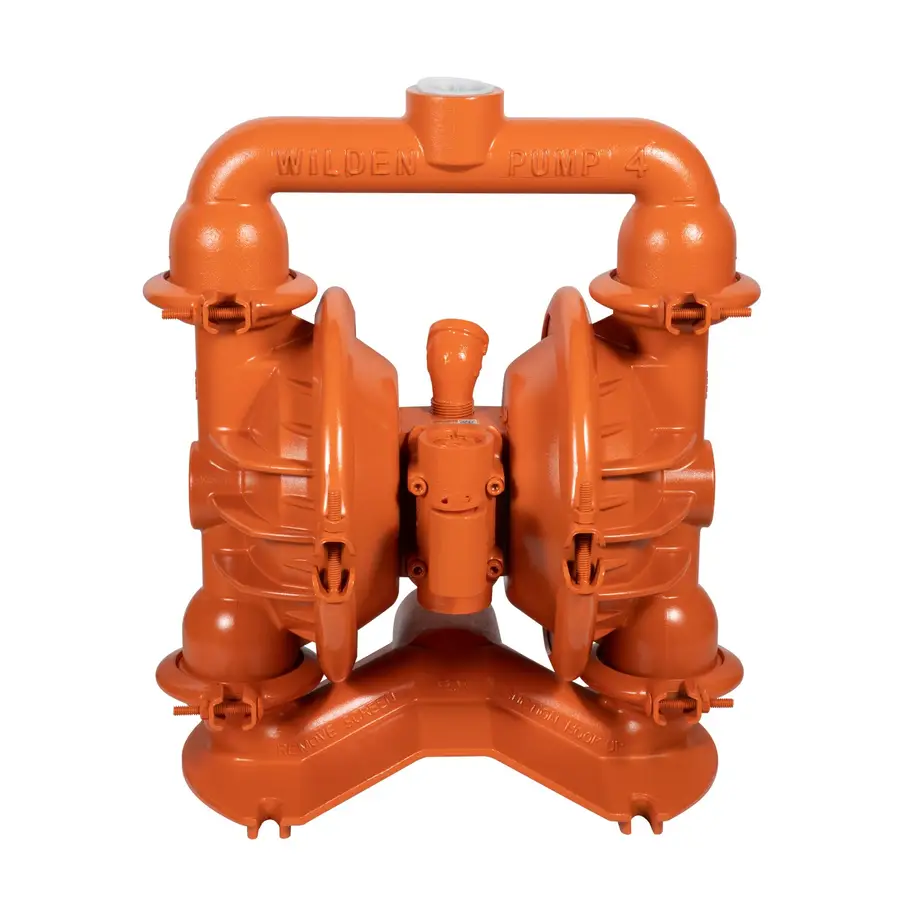

P200/AAPPP/NES/NE/ANE/0014 Aluminum Alloy Wilden Diaphragm Pump
Model: P200/AAPPP/NES/NE/ANE/0014
P200/AAPPP/NES/NE/ANE/0014 Aluminum Alloy Wilden Diaphragm Pump P200/AAPPP/NES/NE/ANE/0014 Wilton Diaphragm Pump: Wetted Parts Material: Wetted Parts Material Shipping Weight Aluminum Alloy 11 kg (24 lbs) 316 Stainless Steel 21 kg (47 lbs) Ductile Iron.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
P200/AAPPP/NES/NE/ANE/0014 Aluminum Alloy Wilden Diaphragm Pump
P200/AAPPP/NES/NE/ANE/0014 Wilton Diaphragm Pump:
Wetted Parts Material:
Wetted Parts Material
Shipping Weight
Aluminum Alloy
11 kg (24 lbs)
316 Stainless Steel
21 kg (47 lbs)
Ductile Iron.
23 kg (51 lbs)
Elastomer Material
NBR, NBR, SaniflexTM, Neoprene, Polyurethane, Teflon PTFE, Viton, Wil-FlexTM
NON-WETTLED PARTS Material
Middle Part: Aluminum Alloy, Polypropylene, Acetal
Air Valve: Aluminum Alloy, Polypropylene, Acetal
Performance Parameters:
Media Inlet Size
1” (25 mm)
Media Outlet Size
1” (25 mm)
Air Inlet Size
1/4” (6 mm)
Maximum outlet pressure
8.6 Bar (125 psig)
Maximum solid particle diameter that can pass
1/4” (6.4 mm)
Maximum flow
Rubber/thermoplastic compounds
212 lpm (56 gpm)
PTFE.
168 lpm (44 gpm)
Maximum suction lift
Rubber/thermoplastic compounds
Dry suction 5.4 m (17.6’)
Wet suction 9.3 m (30.6’)
PTFE.
Dry suction 3.5 m (11.4’)
Wet suction 9.3 m (30.6’)
