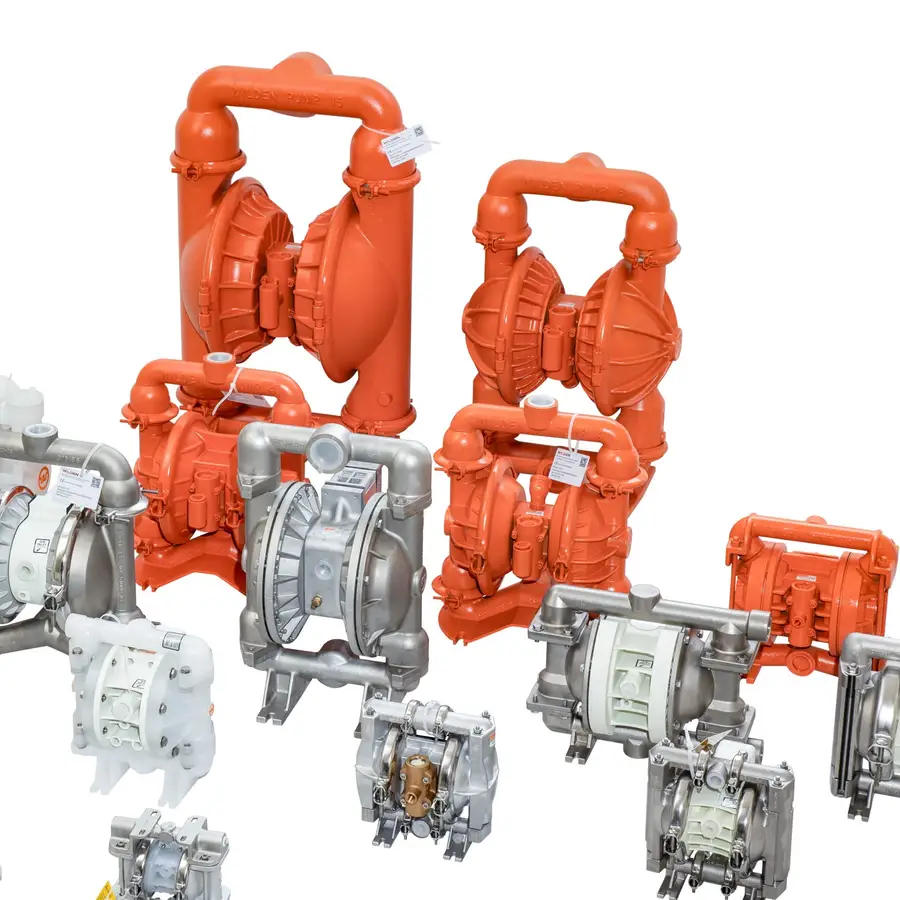

Reference image. Final construction follows the confirmed model and quotation.
Pneumatic Diaphragm Pumps
P2/KKPPP/TNU/TF/KTV/0400 Wilden Polypropylene Diaphragm Pump
Model: P2/KKPPP/TNU/TF/KTV/0400
P2/KKPPP/TNU/TF/KTV/0400 Wilden Polypropylene Diaphragm Pump P2/KKPPP/TNU/TF/KTV/0400 Wilton Diaphragm Pump Specifications: Material of liquid contact: Polypropylene transport weight: 8 kg (18 lbs); Polyvinylidene Fluoride transport weight: 10 kg (23 lbs). Elastomer material: Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters, Teflon PTFE, fluorinated rubber, Wil-FlexTM.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
P2/KKPPP/TNU/TF/KTV/0400 Wilden Polypropylene Diaphragm Pump
P2/KKPPP/TNU/TF/KTV/0400 Wilton Diaphragm Pump Specifications:
Material of liquid contact:
Polypropylene transport weight: 8 kg (18 lbs);
Polyvinylidene Fluoride transport weight: 10 kg (23 lbs).
Elastomer material:
Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters, Teflon PTFE, fluorinated rubber, Wil-FlexTM.
Non-liquid-to-liquid material:
Intermediate part: polypropylene, acetal;
Air valve: polypropylene, acetal;
P2/KKPPP/TNU/TF/KTV/0400 Wilton Diaphragm Pump Performance Parameters:
Media import dimensions: 1” (25 mm)
Media outlet dimensions: 1” (25 mm)
Air inlet size: 1/4” (6 mm)
Maximum outlet pressure: 8.6 Bar (125 psig)
Maximum solid particle diameter can be passed: 1/8” (3.2 mm)
Maximum flow rate: Rubber/thermoplastic compound: 140 lpm (37 gpm)
Teflon PTFE: 132 lpm (35 gpm)
Maximum suction range: Rubber/thermoplastic compounds: dry suction 5.5 m (18.0’), wet suction 8.8 m (29.0’)
Teflon PTFE: Dry suction 3.4 m (11.0’), wet suction 8.8 m (29.0’)
