Pneumatic Diaphragm Pumps

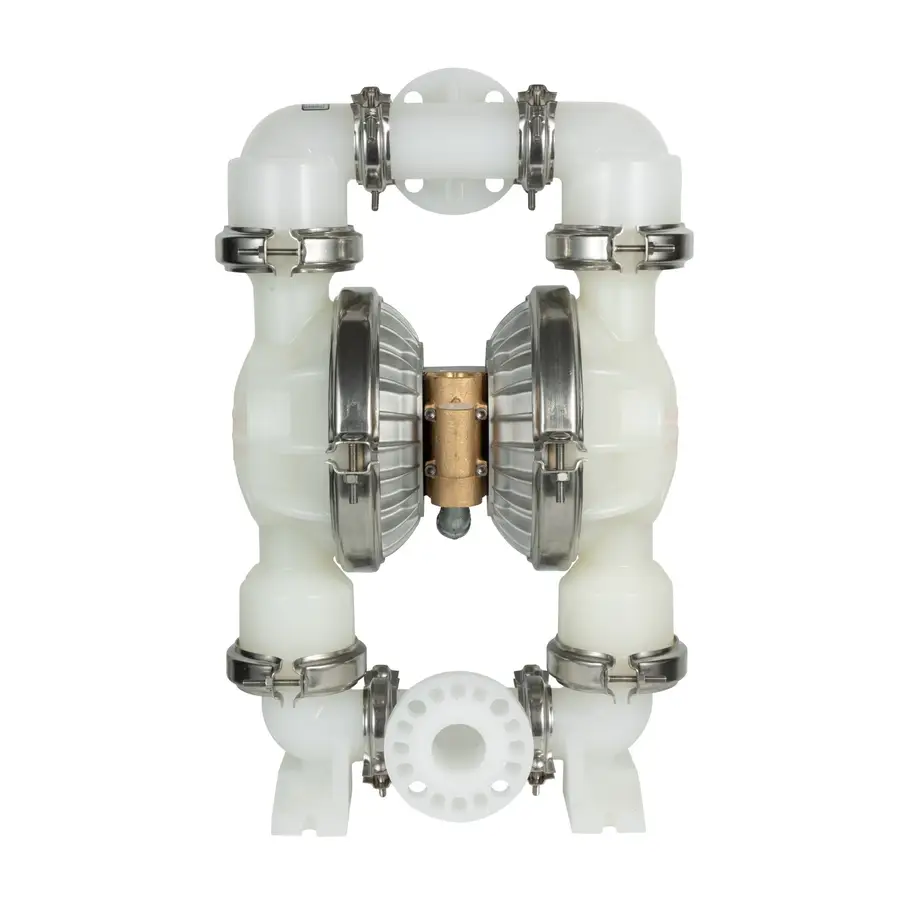

Portable WILDEN P1 Clamp Type Plastic Air Operated Diaphragm Pump
Model: P1
Portable WILDEN P1 Clamp Type Plastic Air Operated Diaphragm Pump WILDEN P1 clamp type plastic pneumatic diaphragm pump specifications: Material of liquid contact: Polypropylene transport weight: 4 kg (9 lbs); Polyvinylidene Fluoride transport weight: 5 kg (11 lbs); Teflon transport weight: 6 kg (12 lbs);
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Portable WILDEN P1 Clamp Type Plastic Air Operated Diaphragm Pump
WILDEN P1 clamp type plastic pneumatic diaphragm pump specifications:
Material of liquid contact:
Polypropylene transport weight: 4 kg (9 lbs);
Polyvinylidene Fluoride transport weight: 5 kg (11 lbs);
Teflon transport weight: 6 kg (12 lbs);
Elastomer material:
Nitrile rubber, ternary rubber, SaniflexTM, polyimine esters, Teflon PTFE, fluorinated rubber, Wil-FlexTM
Non-liquid-to-liquid material:
Intermediate part: polypropylene, acetal;
Air valve: polypropylene;
Performance parameters of WILDEN Wilton P1 clamp type plastic pneumatic diaphragm pump:
Media import dimensions: 1/2” (13 mm);
Media outlet dimensions: 1/2” (13 mm);
Air inlet size: 1/4” (6 mm);
Maximum outlet pressure: 8.6 Bar (125 psig);
Maximum solid particle diameter can be passed: 1/16” (1.6 mm);
Maximum traffic:
Rubber/thermoplastic compound: 56.8 lpm (15.0 gpm);
Teflon PTFE: 53.4 lpm (14.1 gpm);
Maximum suction range:
Rubber/thermoplastic compounds: dry suction 6.1 m (20.0’), wet suction 9.8 m (32.0’);
Teflon PTFE: dry suction 5.2 m (17.0’), wet suction 9.8 m (32.0’);
