Pneumatic Diaphragm Pumps

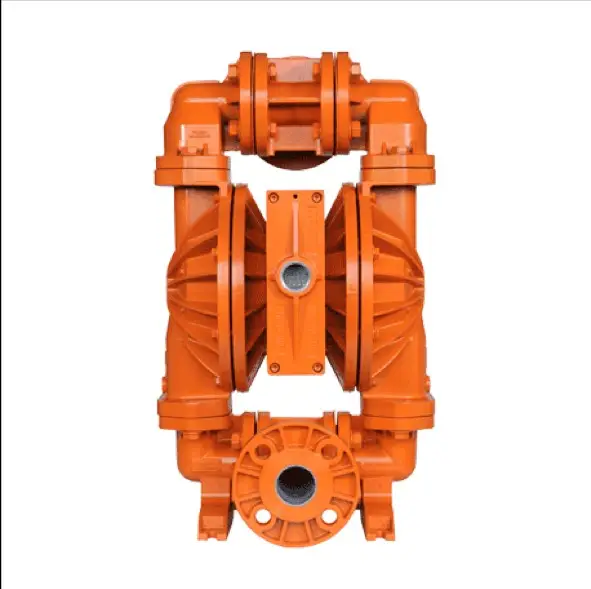

PS15 76 mm (3") wilden Series Clamped Metal Pump
Model: PS15
PS15 76 mm (3") wilden Series Clamped Metal Pump PS15 AIR INLET air inlet 3/4" FNPT LIQUID INLET Import 76 mm (3") LIQUID DISCHARGE Export 76 mm (3") CONNECTION TYPE interface form NPT/BSPT (Threaded) MAX SUCTION LIFT CAPABILITY Maximum Self-Aspiration Rubber – 6.6 m (21.6') Dry, 8.6 m (28.4') Wet EZ-Install TPE – 6.3 m (20.7') Dry, 8.6 m (28.4') Wet Full-Stroke PTFE – 6.2 m (20.2') Dry, 8.6 m (28.4') Wet MAX FLOW…
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
PS15 76 mm (3") wilden Series Clamped Metal Pump
PS15
AIR INLET air inlet
3/4" FNPT
LIQUID INLET Import
76 mm (3")
LIQUID DISCHARGE Export
76 mm (3")
CONNECTION TYPE interface form
NPT/BSPT (Threaded)
MAX SUCTION LIFT CAPABILITY Maximum Self-Aspiration
Rubber – 6.6 m (21.6') Dry, 8.6 m (28.4') Wet
EZ-Install TPE – 6.3 m (20.7') Dry, 8.6 m (28.4') Wet
Full-Stroke PTFE – 6.2 m (20.2') Dry, 8.6 m (28.4') Wet
MAX FLOW RATE Maximum Traffic
Rubber – 927 lpm (245 gpm)
EZ-Install TPE – 901 lpm (238 gpm)
Full-Stroke PTFE – 916 lpm (242 gpm)
MAX PRESSURE Maximum Pressure
8.6 bar (125 psi)
MAX DIAMETER SOLIDS Maximum Particle
9.5 mm (3/8")
DISPLACEMENT PER STROKE Displacement per stroke
Rubber – 5.2 L (1.38 gal)
EZ-Install TPE – 5.3 L (1.41 gal)
Full-Stroke PTFE – 5.1 L (1.34 gal)
* 1 cycle = 2 strokes
| PS15/AAAAA/ZGS/BN/BN/0047 |
| PS15/AAAAR/ZGS/BN/BN/0050 |
| PS15/AAAAR/ZGS/BN/BN/0051 |
| PS15/AAAAR/ZPS/NE/NE/0050 |
| PS15/AAAAR/ZPS/NE/NE/0051 |
| PS15/AAAAR/ZWS/EP/EP/0050 |
| PS15/AAAAR/ZWS/EP/EP/0051 |
| PS15/AAAAR/ZWS/WF/NE/0050 |
| PS15/SSSPP/TWS/TF/STF |
| PS15/SSSPP/TWS/TF/STF/0014 |
| PS15/SSSPP/VTS/VT/VT |
| PS15/SSSPP/VTS/VT/VT/0014 |
| PS15/SSSPP/ZWS/WF/WF |
| PS15/SSSPP/ZWS/WF/WF/0014 |
