Pneumatic Diaphragm Pumps

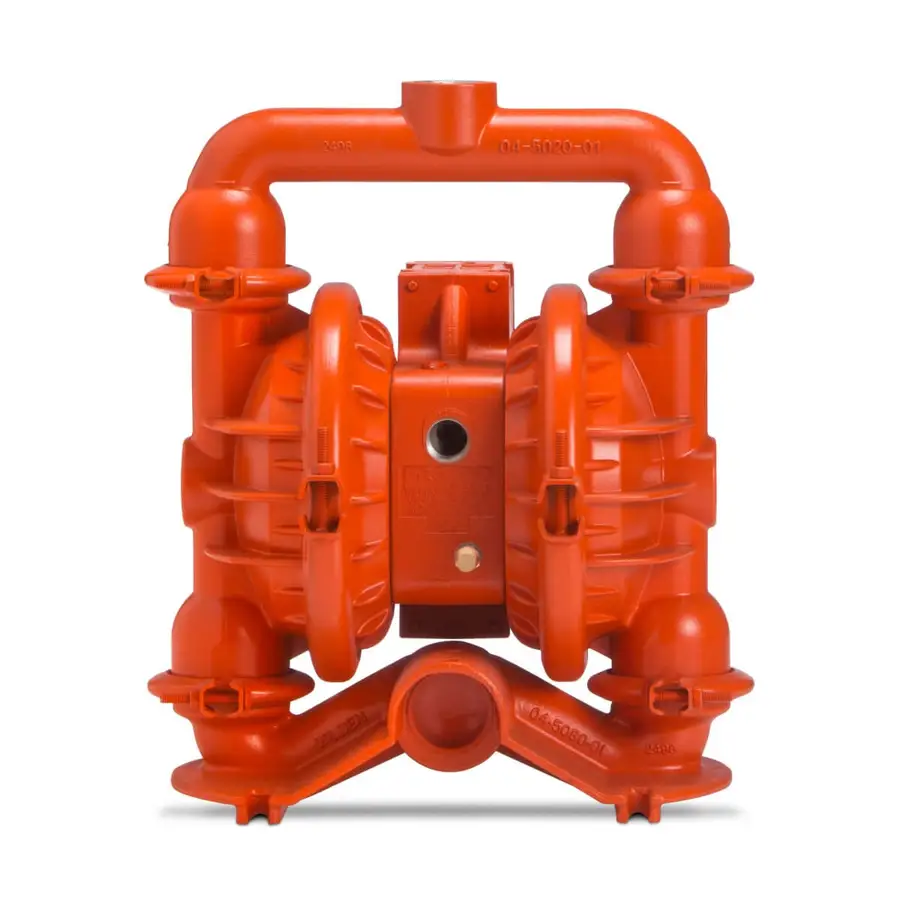

PS4 38 mm Clamped Metal Pump wilden Diaphragm Pump
Model: PS4
PS4 38 mm Clamped Metal Pump wilden Diaphragm Pump 38 mm (1-1/2") Pro-Flo® SHIFT Series Tri-Clamp Metal Pump PS4/AAAAA/ZGS/BN/BN/0327 PS4/AAAAR/ZGS/BN/BN/0050 PS4/AAAAR/ZGS/BN/BN/0051 PS4/AAAAR/ZPS/NE/NE/0050 PS4/AAAAR/ZPS/NE/NE/0051 PS4/AAAPP/BNS/BN/BN PS4/KKAPP/TWS/TF/KTV PS4/KKAPP/TWS/TF/KTV/0504 PS4/KKAPP/ZWS/WF/KTV PS4/KKAPP/ZWS/WF/KTV/0504 PS4/KKSPP/TWS/TF/KTV PS4/PPAPP/BNS/BN/PBN PS4/PPAPP/BNS/BN/PBN/0504…
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
PS4 38 mm Clamped Metal Pump wilden Diaphragm Pump
38 mm (1-1/2") Pro-Flo® SHIFT Series Tri-Clamp Metal Pump
| PS4/AAAAA/ZGS/BN/BN/0327 |
| PS4/AAAAR/ZGS/BN/BN/0050 |
| PS4/AAAAR/ZGS/BN/BN/0051 |
| PS4/AAAAR/ZPS/NE/NE/0050 |
| PS4/AAAAR/ZPS/NE/NE/0051 |
| PS4/AAAPP/BNS/BN/BN |
| PS4/KKAPP/TWS/TF/KTV |
| PS4/KKAPP/TWS/TF/KTV/0504 |
| PS4/KKAPP/ZWS/WF/KTV |
| PS4/KKAPP/ZWS/WF/KTV/0504 |
| PS4/KKSPP/TWS/TF/KTV |
| PS4/PPAPP/BNS/BN/PBN |
| PS4/PPAPP/BNS/BN/PBN/0504 |
| PS4/PPAPP/TWS/TF/PTV |
| PS4/PPAPP/TWS/TF/PTV/0504 |
| PS4/PPAPP/VTS/VT/PTV |
| PS4/PPAPP/ZGS/BN/PBN |
| PS4/PPAPP/ZWS/WF/PTV |
| PS4/PPAPP/ZWS/WF/PTV/0504 |
| PS4/PPCPP/TWS/TF/PTV/0502 |
| PS4/PPSPP/TWS/TF/PTV |
| PS4/SSSPP/EPS/EP/EP |
| PS4/SSSPP/TWS/TF/STF |
| PS4/SSSPP/TWS/TF/STF/0014 |
| PS4/SSSPP/TWS/TF/STF/0070 |
| PS4/SSSPP/VTS/VT/VT |
| PS4/SSSPP/VTS/VT/VT/0014 |
| PS4/SSSPP/ZWS/WF/WF |
| PS4/SSSPP/ZWS/WF/WF/0014 |
| PS4/WMAAR/ZGS/BN/BN/0050 |
| PS4/WMAAR/ZGS/BN/BN/0051 |
| PS4/WMAAR/ZPS/NE/NE/0050 |
| PS4/WMAAR/ZPS/NE/NE/0051 |
| PS4/WMAAR/ZWS/EP/EP/0051 |
AIR INLET
3/4" FNPT
LIQUID INLET
38 mm (1-1/2")
LIQUID DISCHARGE
32 mm (1-1/4")
CONNECTION TYPE
NPT/BSPT (Threaded)
MAX SUCTION LIFT CAPABILITY
Rubber – 7.0 m (22.9') Dry, 8.6 m (28.4') Wet
EZ-Install TPE – 7.1 m Dry (23.3'), 8.6 m Wet (28.4')
Full-Stroke PTFE – 7.0 m (22.9') Dry, 8.6 m (28.4') Wet
MAX FLOW RATE
Rubber – 310 lpm (82 gpm)
EZ-Install TPE – 314 lpm (83 gpm)
Full-Stroke PTFE – 375 lpm (99 gpm)
MAX PRESSURE
8.6 bar (125 psi)
MAX DIAMETER SOLIDS
4.8 mm (3/16")
DISPLACEMENT PER STROKE
Rubber – 1.0 L (0.27 gal)
EZ-Install TPE – 1.0 L (0.27 gal)
Full-Stroke PTFE – 1.0 L (0.27 gal)
* 1 cycle = 2 strokes
