Pneumatic Diaphragm Pumps

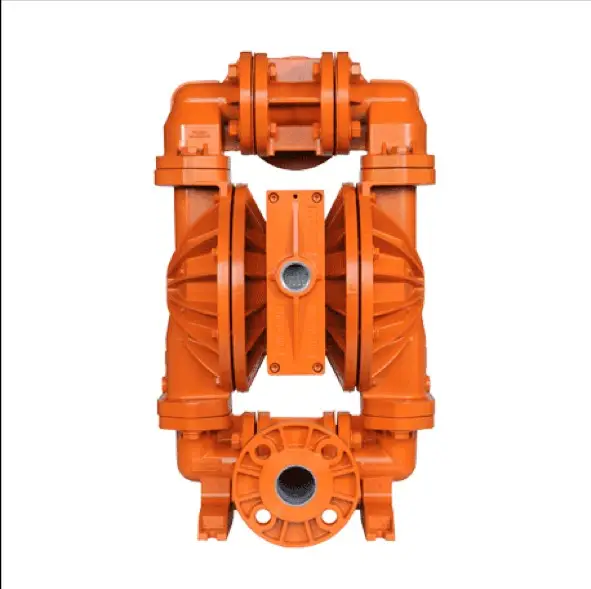

PS8 51 mm 2 inch Wilden Clamped Metal Pump
Model: PS8
PS8 51 mm 2 inch Wilden Clamped Metal Pump 51 mm (2") Pro-Flo® SHIFT Series Clutch Metal Pump PS8 AIR INLET air inlet 3/4" FNPT LIQUID INLET Import 51 mm (2") LIQUID DISCHARGE Export 51 mm (2") CONNECTION TYPE interface form NPT/BSPT (Threaded) MAX SUCTION LIFT CAPABILITY Maximum Self-Aspiration Rubber – 7.2 m (23.8') Dry, 9.0 m (29.5') Wet EZ-Install TPE – 6.9 m (22.7') Dry, 9.0 m (29.5') Wet Full-Stroke PTFE – 6.3…
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
PS8 51 mm 2 inch Wilden Clamped Metal Pump
51 mm (2") Pro-Flo® SHIFT Series Clutch Metal Pump
PS8
AIR INLET air inlet
3/4" FNPT
LIQUID INLET Import
51 mm (2")
LIQUID DISCHARGE Export
51 mm (2")
CONNECTION TYPE interface form
NPT/BSPT (Threaded)
MAX SUCTION LIFT CAPABILITY Maximum Self-Aspiration
Rubber – 7.2 m (23.8') Dry, 9.0 m (29.5') Wet
EZ-Install TPE – 6.9 m (22.7') Dry, 9.0 m (29.5') Wet
Full-Stroke PTFE – 6.3 m (20.7') Dry, 8.6 m (28.4') Wet
MAX FLOW RATE Maximum Traffic
Rubber – 700 lpm (185 gpm)
EZ-Install TPE – 719 lpm (190 gpm)
Full-Stroke PTFE – 723 lpm (191 gpm)
MAX PRESSURE Maximum Pressure
8.6 bar (125 psi)
MAX DIAMETER SOLIDS Maximum Particle
6.4 mm (1/4")
DISPLACEMENT PER STROKE Displacement per stroke
Rubber – 2.6 L (0.69 gal)
EZ-Install TPE – 2.6 L (0.69 gal)
Full-Stroke PTFE – 2.4 L (0.64 gal)
* 1 cycle = 2 strokes
PS8 Series Wilden Air Operated Diaphragm Pump
| PS8/AAAAR/ZGS/BN/BN/0050 |
| PS8/AAAAR/ZGS/BN/BN/0051 |
| PS8/AAAAR/ZPS/PU/PU/0050 |
| PS8/AAAAR/ZPS/PU/PU/0051 |
| PS8/AAAAR/ZSS/FS/FS/0050 |
| PS8/AAAAR/ZSS/FS/FS/0051 |
| PS8/AAAAR/ZWS/WF/WF/0050 |
| PS8/AAAAR/ZWS/WF/WF/0051 |
| PS8/PKAPP/TWS/TF/PTV |
| PS8/PKAPP/VTS/VT/PTV |
| PS8/PKAPP/ZGS/BN/PBN |
| PS8/PKAPP/ZWS/WF/PWF |
| PS8/SSSPP/FWS/FW/FW/0070 |
| PS8/SSSPP/TWS/TF/STF |
| PS8/SSSPP/VTS/VT/VT |
| PS8/SSSPP/VTS/VT/VT/0014 |
| PS8/SSSPP/ZWS/WF/WF |
| PS8/SZAAA/WWL/WF/WF |
| PS8/SZNNN/LEL/TF/TF/0774 |
| PS8/WWAAA/ZWS/WF/WF/0480 |
| PS8/WWAAR/ZGS/BN/BN/0050 |
| PS8/WWAAR/ZGS/BN/BN/0051 |
| PS8/WWAAR/ZPS/PU/PU/0050 |
| PS8/WWAAR/ZPS/PU/PU/0051 |
| PS8/WWAAR/ZWS/WF/WF/0050 |
| PS8/WWAAR/ZWS/WF/WF/0051 |
