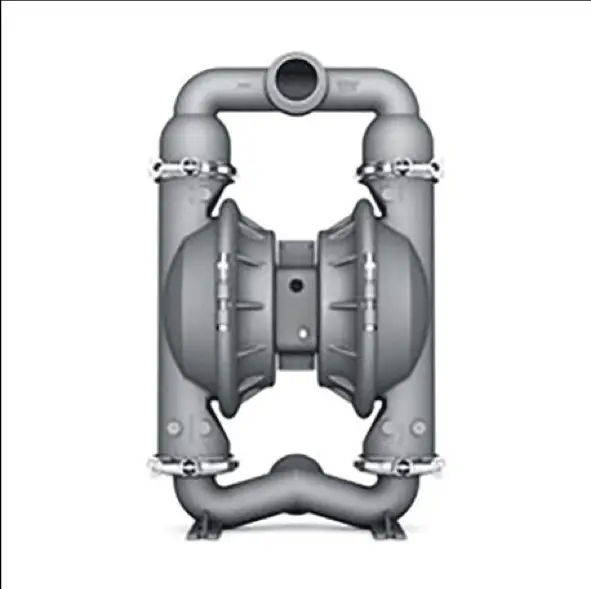

Reference image. Final construction follows the confirmed model and quotation.
Pneumatic Diaphragm Pumps
PV8/SSNNN/TNU/TM/TF/0087 WILDEN Stainless Steel Pneumatic diaphragm pumps
Model: PV8/SSNNN/TNU/TM/TF/0087
PV8/SSNNN/TNU/TM/TF/0087 WILDEN Stainless Steel Pneumatic diaphragm pumps WILDEN Pump Description PV8/SSNNN/TNU/TM/TF/0087 Item Number Pump 08-12847 Port Size 2" Air Distribution System Pro-Flo® V Pump Construction Stainless Steel Diaphragms Ptfe with Neoprene Back-Up Valve/ Balls Ptfe Mushroom Check Valve Seats Teflon Outer Piston Stainless Steel Air Chamber Nickle Plated Aluminum Center Block Nickle Plated…
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
PV8/SSNNN/TNU/TM/TF/0087 WILDEN Stainless Steel Pneumatic diaphragm pumps
| WILDEN Pump Description | PV8/SSNNN/TNU/TM/TF/0087 |
|---|---|
| Item Number Pump | 08-12847 |
| Port Size | 2" |
| Air Distribution System | Pro-Flo® V |
| Pump Construction | Stainless Steel |
| Diaphragms | Ptfe with Neoprene Back-Up |
| Valve/ Balls | Ptfe Mushroom Check |
| Valve Seats | Teflon |
| Outer Piston | Stainless Steel |
| Air Chamber | Nickle Plated Aluminum |
| Center Block | Nickle Plated Aluminum |
| Air Valve | Nickle Plated Aluminum |
| Capacity GPM | 151 |
| Capacity Liters/min | 575 |
| Pump Weight Lbs | 154,0 |
| Pump Weight Kilo | 69 |
| Specialty Code | LSH, sanitary, side ported |
