Pneumatic Diaphragm Pumps

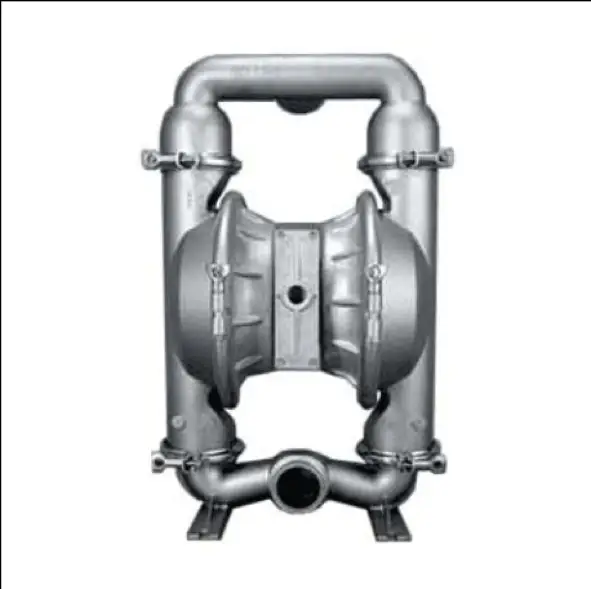

PX15/SSAAA/NES/TF/PU 15-9988-99 Stainless Steel Wilden Diaphragm Pump Accessories
Model: PX15/SSAAA/NES/TF/PU
PX15/SSAAA/NES/TF/PU 15-9988-99 Stainless Steel Wilden Diaphragm Pump Accessories WILDEN Pump Description PX15/SSAAA/NES/TF/PU Item Number Pump 15-11621 Port Size 3" Air Kit 15-9988-99 Wet Kit NME Air Distribution System Pro-Flo X™ Pump Construction Stainless Steel Diaphragms Neoprene Valve/ Balls Teflon Valve Seats Polyurethane Outer Piston Stainless Steel Air Chamber Aluminum Center Block Aluminum Air Valve…
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
PX15/SSAAA/NES/TF/PU 15-9988-99 Stainless Steel Wilden Diaphragm Pump Accessories
| WILDEN Pump Description | PX15/SSAAA/NES/TF/PU |
|---|---|
| Item Number Pump | 15-11621 |
| Port Size | 3" |
| Air Kit | 15-9988-99 |
| Wet Kit | NME |
| Air Distribution System | Pro-Flo X™ |
| Pump Construction | Stainless Steel |
| Diaphragms | Neoprene |
| Valve/ Balls | Teflon |
| Valve Seats | Polyurethane |
| Outer Piston | Stainless Steel |
| Air Chamber | Aluminum |
| Center Block | Aluminum |
| Air Valve | Aluminum |
| Capacity GPM | 242 |
| Capacity Liters/min | 918 |
| Pump Weight Lbs | 187,0 |
| Pump Weight Kilo | 84 |
| Specialty Code | #N/A |
