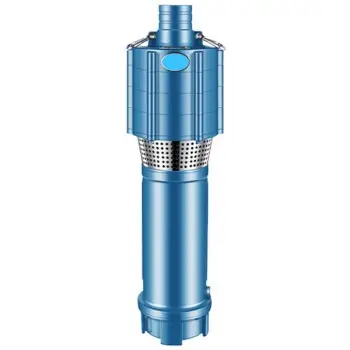

Reference image. Final construction follows the confirmed model and quotation.
High-Lift Sewage Pumps
QD high lift submersible electric pump
Model: Available on request
QD high-lift submersible electric pumps are suitable for underground water pumping in rural areas, farmland drainage and irrigation, household water automation, and can also be used to remove industrial water, construction water supply and drainage, fountain engineering and other industries.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
QD high-lift submersible electric pumps are suitable for underground water pumping in rural areas, farmland drainage and irrigation, household water automation, and can also be used to remove industrial water, construction water supply and drainage, fountain engineering and other industries.
QD high-lift submersible electric pump is a down-pump electric drainage and irrigation equipment that is composed of a water pump, a sealing part and a submersible motor. Due to its small size and light weight, it is especially suitable for underground water pumping in rural areas, farmland drainage and irrigation, household water automation, and also It can be used to remove industrial water, construction water supply and drainage, fountain engineering and other industries. Commonly used models are: QD3-30/2-0.75, QD6-20/2-0.75, QD3-45/3-1.1, QD6-32/3-1.1, QD3-65/4-1.5, QD6-35/2- 1.5, QD6-42/4-1.5, QD10-26/2-1.5, QD2-20/2-1.5 and other series.
QD high lift submersible electric pump model meaning
QD high-lift submersible electric pump uses
The QD high-lift submersible electric pump adopts a multi-stage impeller structure with high lift and wide application. It is a water supply and drainage tool for farmland drainage and irrigation, garden sprinkler irrigation, underground water lifting, water tower water delivery, urban construction, industrial and mining enterprises, etc.
Overview of QD high-lift submersible electric pump
QD high-lift submersible electric pump is a down-pump electric drainage and irrigation equipment that is composed of a water pump, a sealing part and a submersible motor. Due to its small size and light weight, it is especially suitable for underground water pumping in rural areas, farmland drainage and irrigation, household water automation, and also It can be used to remove industrial water, construction water supply and drainage, fountain engineering and other industries.
QD high-lift submersible electric pump usage range
Flow range (Q): 3～10m3/h cubic meters/hour
Lift range (H): 22~80m
Ambient temperature (℃): ≤40℃
Medium temperature (℃): -20℃～+40℃
Media density (℃): ≤1.3X103kg/m3kg/cubic meter
Speed (r/min): 1450~2900r/min rpm
QD high lift submersible electric pump performance parameters
| Serial number | model | flow | Lift | power | Voltage | Speed | Pipe diameter | |
| (m³/h) | (m) | (kW) | (V) | (r/min) | （mm) | |||
| 1 | QD3-30/2-0.75 | 3 | 30 | 0.75 | 220/380 | 2860 | 25 | |
| 2 | QD6-20/2-0.75 | 6 | 20 | 0.75 | 220/380 | 2860 | 38 | |
| 3 | QD3-45/3-1.1 | 3 | 45 | 1.1 | 220/380 | 2860 | 25 | |
| 4 | QD6-32/3-1.1 | 6 | 32 | 1.1 | 220/380 | 2860 | 38 | |
| 5 | QD3-65/4-1.5 | 3 | 65 | 1.5 | 220 | 2860 | 25 | |
| 6 | QD6-35/2-1.5 | 6 | 35 | 1.5 | 220/380 | 2860 | 38 | |
| 7 | QD6-42/4-1.5 | 6 | 42 | 1.5 | 220/380 | 2860 | 38 | |
| 8 | QD10-26/2-1.5 | 10 | 26 | 1.5 | 220/380 | 2860 | 51 | |
| 9 | QD2-20/2-1.5 | 2 | 20 | 1.5 | 220 | 2860 | 51 | |
