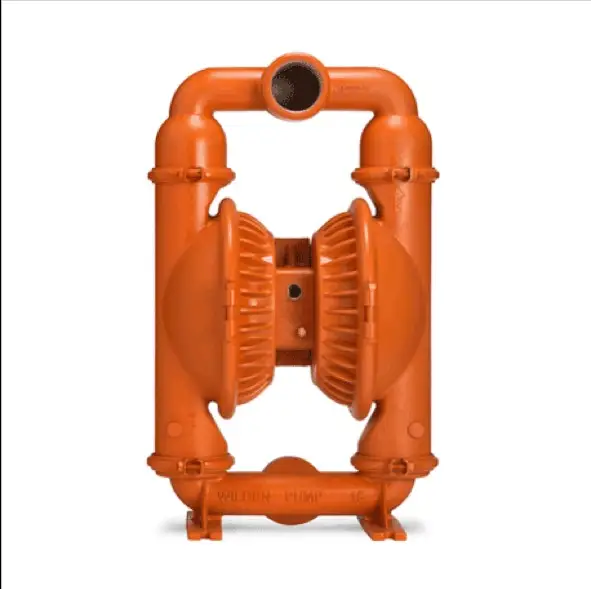

WILDEN Cast Iron XPX15/WWAAA/WFS/TF/MTF Pneumatic diaphragm pumps
Model: XPX15/WWAAA/WFS/TF/MTF
WILDEN Cast Iron XPX15/WWAAA/WFS/TF/MTF Pneumatic diaphragm pumps WILDEN Pump Description XPX15/WWAAA/WFS/TF/MTF Item Number Pump 15-12067 Port Size 3" Air Kit 15-9988-99 Wet Kit NME Air Distribution System Pro-Flo X™ Pump Construction Cast Iron Diaphragms Wil-Flex Valve/ Balls Teflon Valve Seats Mild steel with Teflon O-Ring Outer Piston Cast Iron Air Chamber Aluminum Center Block Aluminum Air Valve Aluminum…
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
WILDEN Cast Iron XPX15/WWAAA/WFS/TF/MTF Pneumatic diaphragm pumps
| WILDEN Pump Description | XPX15/WWAAA/WFS/TF/MTF |
|---|---|
| Item Number Pump | 15-12067 |
| Port Size | 3" |
| Air Kit | 15-9988-99 |
| Wet Kit | NME |
| Air Distribution System | Pro-Flo X™ |
| Pump Construction | Cast Iron |
| Diaphragms | Wil-Flex |
| Valve/ Balls | Teflon |
| Valve Seats | Mild steel with Teflon O-Ring |
| Outer Piston | Cast Iron |
| Air Chamber | Aluminum |
| Center Block | Aluminum |
| Air Valve | Aluminum |
| Capacity GPM | 241 |
| Capacity Liters/min | 913 |
| Pump Weight Lbs | 205,0 |
| Pump Weight Kilo | 92 |
| Specialty Code | #N/A |
