Pneumatic Diaphragm Pumps

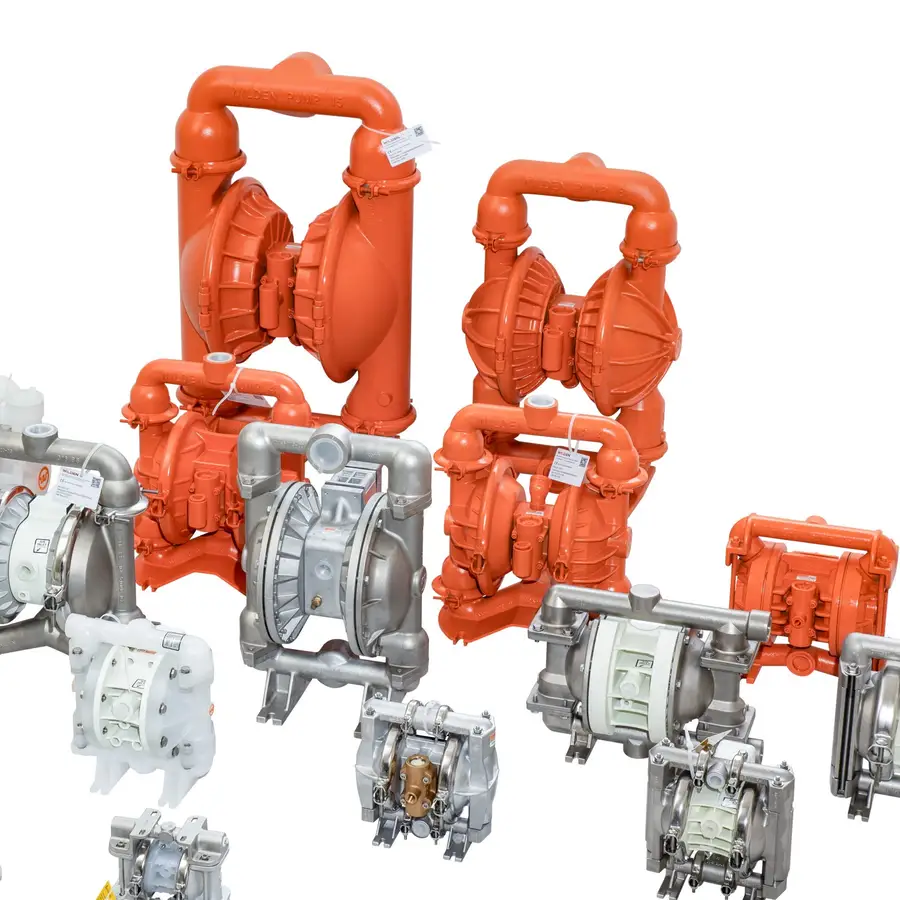

WILDEN High Pressure Diaphragm Pump
Model: Available on request
WILDEN High Pressure Diaphragm Pump WILDEN high-pressure diaphragm pump, Wilton WILDEN high-pressure diaphragm pump Technology: Pneumatic Diaphragm characteristic: 1. The bolt design is highly leak-proof; 2. Sliding sealing capability 3. Single-head or double-head positive displacement technology 4. No lubricating oil is required for operation WILDEN high-pressure diaphragm pump, Wilton WILDEN high-pressure…
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
WILDEN High Pressure Diaphragm Pump
WILDEN high-pressure diaphragm pump, Wilton WILDEN high-pressure diaphragm pump
Technology: Pneumatic Diaphragm
characteristic:
1. The bolt design is highly leak-proof;
2. Sliding sealing capability
3. Single-head or double-head positive displacement technology
4. No lubricating oil is required for operation
WILDEN high-pressure diaphragm pump, Wilton WILDEN high-pressure diaphragm pump technical data:
Optional materials are: aluminum alloy, ductile iron, stainless steel, alloy C
Size: 6 mm (1/4") to 51 mm (2")
Fluid wetting part type: BSPT (NPT) or DIN (ANSI)
The maximum temperature tolerated by elastomers is 176.7° C (350° F)
Optional elastomer material: Wil-Flex?, polyamide
Maximum outlet/inlet air pressure ratio: 26:1
WILDEN high-pressure diaphragm pump, Wilton WILDEN high-pressure diaphragm pump performance data:
Maximum traffic: 360 lpm (95 gpm)
Maximum outlet pressure: 20.7 bar (300 psi)
Maximum suction range: 9.3m (30.6'), 7.8m (25.5')
Maximum diameter of solid particles: 13mm (1/2")
