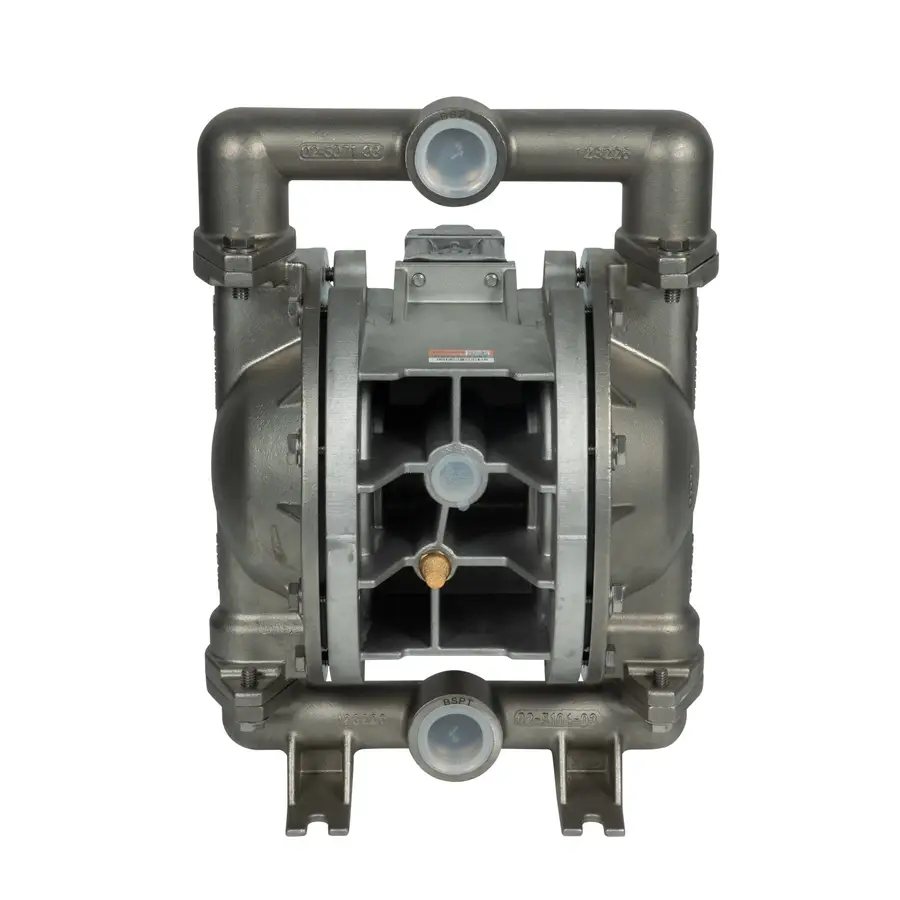

WILDEN P.025 clamp type metal pneumatic diaphragm pump

WILDEN P.025 clamp type metal pneumatic diaphragm pump

WILDEN  P.025 clamp metal pneumatic diaphragm pump has no dead spots, no refueling and

 lubrication, minimal energy consumption, extremely low compressed air leakage, no air valve

freeze, high air utilization rate, quick and convenient disassembly, long life, high temperature

resistance, passed ISO9001 certification, EC certification of EC.

WILDEN  P.025 clamp type metal pneumatic diaphragm pump specifications:

Material of liquid contact:

Transport weight of aluminum alloy: 1.8 kg (4 lbs);

316 Stainless steel transport weight: 4.0 kg (8.9 lbs);

Elastomer material:

Nitrile rubber, Teflon PTFE, Wil-FlexTM

Non-liquid-to-liquid material:

Intermediate part: polypropylene, acetal;

Air valve: polypropylene, acetal;

Performance parameters of WILDEN Wilton P.025 clamp type metal pneumatic diaphragm pump:

Media import dimensions: 1/4” (6.4 mm);

Media outlet dimensions: 1/4” (6.4 mm);

Air inlet size: 1/8” (3.2 mm);

Maximum outlet pressure: 8.6 Bar (125 psig);

Maximum solid particle diameter can be passed: 1/64” (0.4 mm);

Maximum traffic:

Rubber/thermoplastic compound: 18.9 lpm (5 gpm);

Teflon PTFE: 18.9 lpm (5 gpm);

Maximum suction range:

Rubber/thermoplastic compounds: dry suction 4.1 m (13.6’), wet suction 9.3 m (30.6’);

Teflon PTFE: dry suction 4.0 m (13.0’), wet suction 9.5 m (31.2’);
