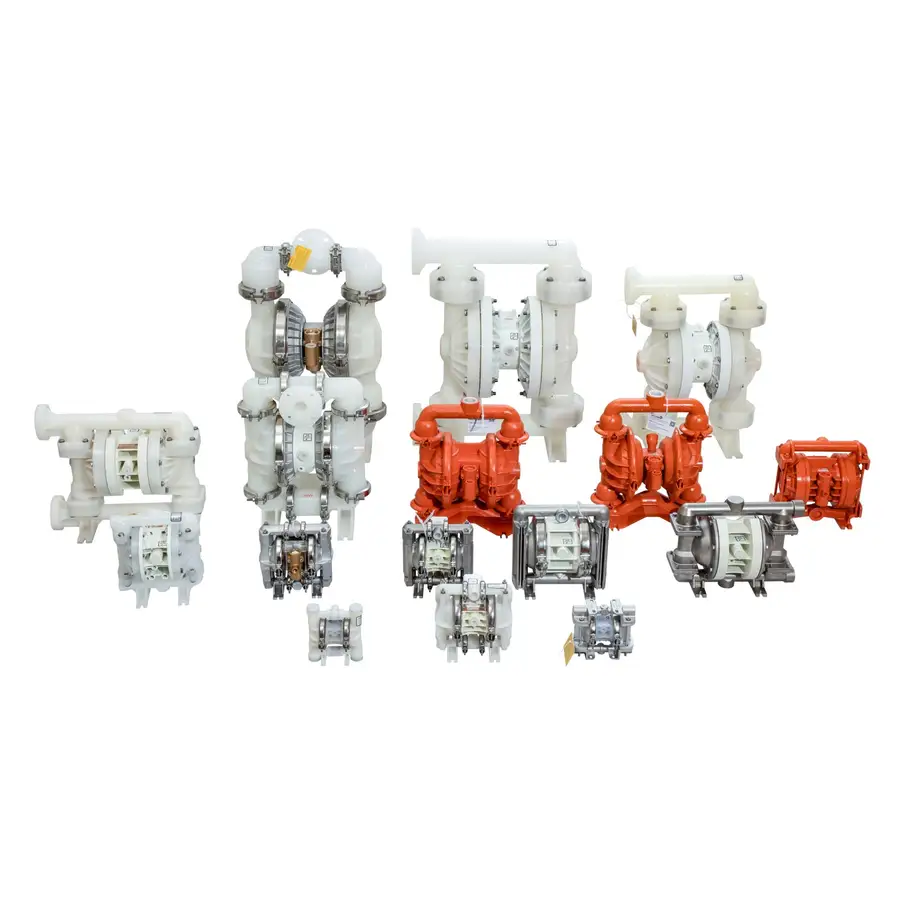

Reference image. Final construction follows the confirmed model and quotation.
Pneumatic Diaphragm Pumps
WILDEN P1500 Bolt Plastic Pneumatic Diaphragm Pump
Model: P1500
WILDEN P1500 Bolt Plastic Pneumatic Diaphragm Pump WILDEN P1500 bolt plastic pneumatic diaphragm pump specifications: Material of liquid contact: Polypropylene transport weight: 138 kg (305 lbs); Polyvinylidene Fluoride transport weight: 161 kg (356 lbs); Elastomer material: Teflon PTFE; Non-liquid-to-liquid material: Air chamber: polypropylene; Intermediate part: polypropylene; Air valve: polypropylene;
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
WILDEN P1500 Bolt Plastic Pneumatic Diaphragm Pump
WILDEN P1500 bolt plastic pneumatic diaphragm pump specifications:
Material of liquid contact:
Polypropylene transport weight: 138 kg (305 lbs);
Polyvinylidene Fluoride transport weight: 161 kg (356 lbs);
Elastomer material:
Teflon PTFE;
Non-liquid-to-liquid material:
Air chamber: polypropylene;
Intermediate part: polypropylene;
Air valve: polypropylene;
Performance parameters of WILDEN Wilton P1500 bolt plastic pneumatic diaphragm pump:
Media import dimensions: 3” (76 mm);
Media outlet dimensions: 3” (76 mm);
Air inlet size: 3/4” (19 mm);
Maximum outlet pressure: 8.6 Bar (125 psig);
The maximum solid particle diameter can be passed: 1/2” (13mm);
Maximum traffic:
Teflon PTFE: 784 lpm (207gpm);
Maximum suction range:
Teflon PTFE: dry suction 3.6 m (12.0’), wet suction 8.6 m (28.0’);
