Pneumatic Diaphragm Pumps

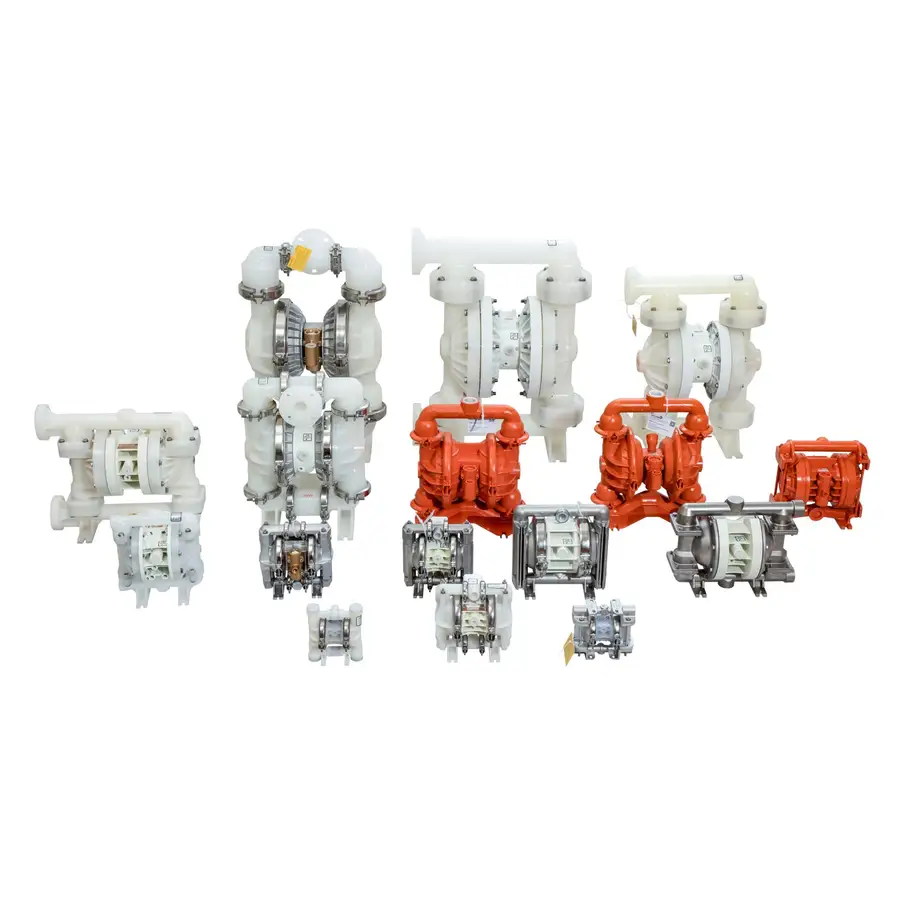

WILDEN P25 bolt plastic pneumatic separator membrane pump
Model: P25
WILDEN P25 bolt plastic pneumatic separator membrane pump WILDEN P25 bolt plastic pneumatic diaphragm pump specifications: Material of liquid contact: Polypropylene transport weight: 2 kg (4 lbs) Polyvinylidene Fluoride transport weight: 2 kg (4 lbs) Elastomer material: Teflon PTFE Non-liquid-to-liquid material: Intermediate part: polypropylene; Air valve: polypropylene;
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
WILDEN P25 bolt plastic pneumatic separator membrane pump
WILDEN P25 bolt plastic pneumatic diaphragm pump specifications:
Material of liquid contact:
Polypropylene transport weight: 2 kg (4 lbs)
Polyvinylidene Fluoride transport weight: 2 kg (4 lbs)
Elastomer material:
Teflon PTFE
Non-liquid-to-liquid material:
Intermediate part: polypropylene;
Air valve: polypropylene;
Performance parameters of WILDEN Wilton P25 bolt plastic pneumatic diaphragm pump:
Media import dimensions: 1/4” (6 mm);
Media outlet dimensions: 1/4” (6 mm);
Air inlet size: 1/8” (3 mm);
Maximum outlet pressure: 8.6 Bar (125 psig);
The maximum solid particle diameter can be passed: 3/32” (0.7mm);
Maximum traffic:
Teflon PTFE: 16.7 lpm (4.4 gpm);
Maximum suction range: Teflon PTFE: dry suction 1.9 m (6.2’), wet suction 9.3 m (30.6’);
| WILDEN Pump Description | P25/KZPPP/TNL/TF/KTV/0678 |
|---|---|
| Port Size | 1/4" |
| Air Kit | NAK |
| Wet Kit | NWK |
| Air Distribution System | Pro-Flo® |
| Pump Construction | Pvdf |
| Diaphragms | Ptfe, Neoprene Back-Up, O-ring, IPD |
| Valve/ Balls | Teflon |
| Valve Seats | Pvdf with Ptfe Encapsulated Viton |
| Outer Piston | None |
| Air Chamber | Polypropylene |
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
| Capacity GPM | 4 |
| Capacity Liters/min | 16 |
| Pump Weight Lbs | 5,7 |
| Pump Weight Kilo | 2 |
| Specialty Code | Center Ported, BSPT Inlet & Discharge |
