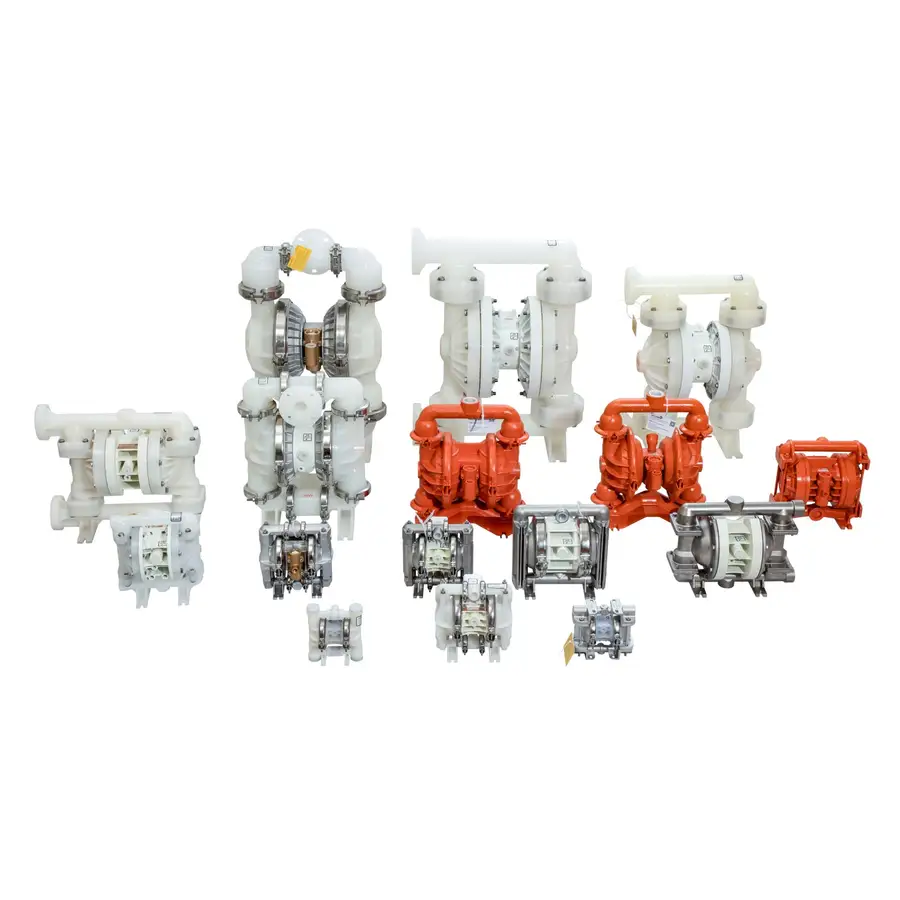

Reference image. Final construction follows the confirmed model and quotation.
Pneumatic Diaphragm Pumps
WILDEN P400 Aluminum Alloy Bolt Pneumatic Diaphragm Pump
Model: P400
WILDEN P400 Aluminum Alloy Bolt Pneumatic Diaphragm Pump WILDEN P400 aluminum alloy bolted pneumatic diaphragm pump specifications: Material of liquid contact: Aluminum alloy transport weight: 25 kg (55 lbs) Elastomer material: Nitrile rubber, ternary rubber, neoprene, Teflon PTFE, fluorinated rubber, Wil-FlexTM. Non-liquid-to-liquid material: Air chamber: aluminum alloy; Intermediate part: polypropylene;
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
WILDEN P400 Aluminum Alloy Bolt Pneumatic Diaphragm Pump
WILDEN P400 aluminum alloy bolted pneumatic diaphragm pump specifications:
Material of liquid contact:
Aluminum alloy transport weight: 25 kg (55 lbs)
Elastomer material:
Nitrile rubber, ternary rubber, neoprene, Teflon PTFE, fluorinated rubber, Wil-FlexTM.
Non-liquid-to-liquid material:
Air chamber: aluminum alloy;
Intermediate part: polypropylene;
Air valve: polypropylene;
Performance parameters of WILDEN Wilton P400 aluminum alloy bolted pneumatic diaphragm pump:
Media import dimensions: 1-1/2” (38 mm)
Media outlet size: 1-1/2” (38 mm)
Air inlet size: 1/2” (13 mm)
Maximum outlet pressure: 8.6 Bar (125 psig)
Maximum solid particle diameter can be passed: 5/16” (7.9 mm)
Maximum traffic:
Rubber/thermoplastic compound: 409 lpm (108 gpm)
Teflon PTFE: 329 lpm (87 gpm)
Maximum suction range: Rubber/thermoplastic compound: dry suction 4.2 m (13.6’), wet suction 8.9 m (29.5’)
Teflon PTFE: Dry suction 3.4 m (11.3’), wet suction 9.0 m (29.5’)
| WILDEN Pump Description | P400/AAAPP/NES/NE/NE |
|---|---|
| Port Size | 1,5" |
| Air Distribution System | Pro-Flo® |
| Pump Construction | Aluminum |
| Diaphragms | Neoprene |
| Valve/ Balls | Neoprene |
| Valve Seats | Neoprene |
| Outer Piston | Aluminum |
| Air Chamber | Aluminum |
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
| Capacity GPM | 105 |
| Capacity Liters/min | 401 |
| Pump Weight Lbs | 55,0 |
| Pump Weight Kilo | 24 |
| Specialty Code | #N/A |
