Pneumatic Diaphragm Pumps

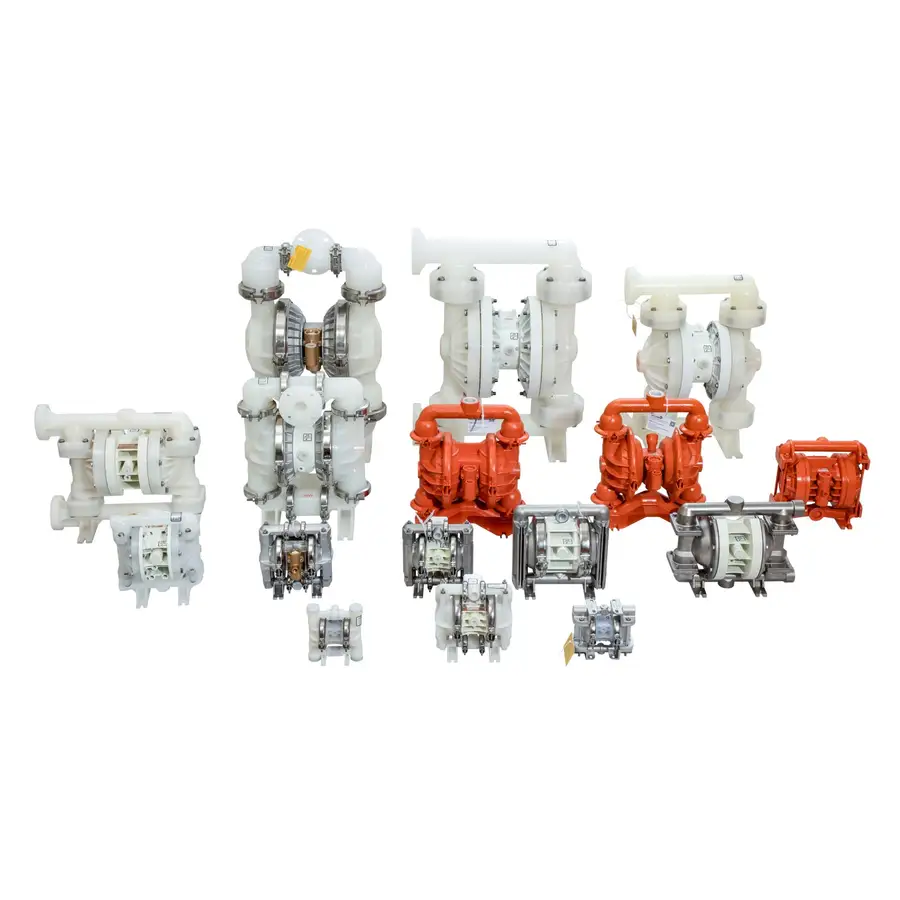

WILDEN P800 bolt plastic pneumatic diaphragm pump
Model: P800
WILDEN P800 bolt plastic pneumatic diaphragm pump WILDEN P800 bolted plastic pneumatic diaphragm pump specifications: Material of liquid contact: Polypropylene transport weight: 32 kg (70 lbs); Polyvinylidene Fluoride transport weight: 45 kg (99 lbs); Elastomer material: Nitrile rubber, ternary rubber, Saniflex™, neoprene, polyimine ester, Teflon PTFE, fluorinated rubber, Wil-Flex™;
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
WILDEN P800 bolt plastic pneumatic diaphragm pump
WILDEN P800 bolted plastic pneumatic diaphragm pump specifications:
Material of liquid contact:
Polypropylene transport weight: 32 kg (70 lbs);
Polyvinylidene Fluoride transport weight: 45 kg (99 lbs);
Elastomer material:
Nitrile rubber, ternary rubber, Saniflex™, neoprene, polyimine ester,
Teflon PTFE, fluorinated rubber, Wil-Flex™;
Non-liquid-to-liquid material:
Air chamber: polypropylene;
Intermediate part: polypropylene, aluminum alloy;
Air valve: polypropylene, aluminum alloy;
Performance parameters of WILDEN Wilton P800 bolted plastic pneumatic diaphragm pump:
Media import dimensions: 2” (51 mm);
Media outlet dimensions: 2” (51 mm);
Air inlet size: 1/2” (13 mm);
Maximum outlet pressure: 8.6 Bar (125 psig);
The maximum solid particle diameter can be passed: 1/4” (6.4mm);
Maximum traffic:
Rubber/thermoplastic compound: 624 lpm (165 gpm);
Teflon PTFE: 504lpm (133gpm);
Maximum suction range:
Rubber/thermoplastic compounds: dry suction 6.2 m (20.4’), wet suction 8.7 m (28.4’);
Teflon PTFE: dry suction 4.2 m (13.6’), wet suction 8.7 m (28.4’);
