Pneumatic Diaphragm Pumps

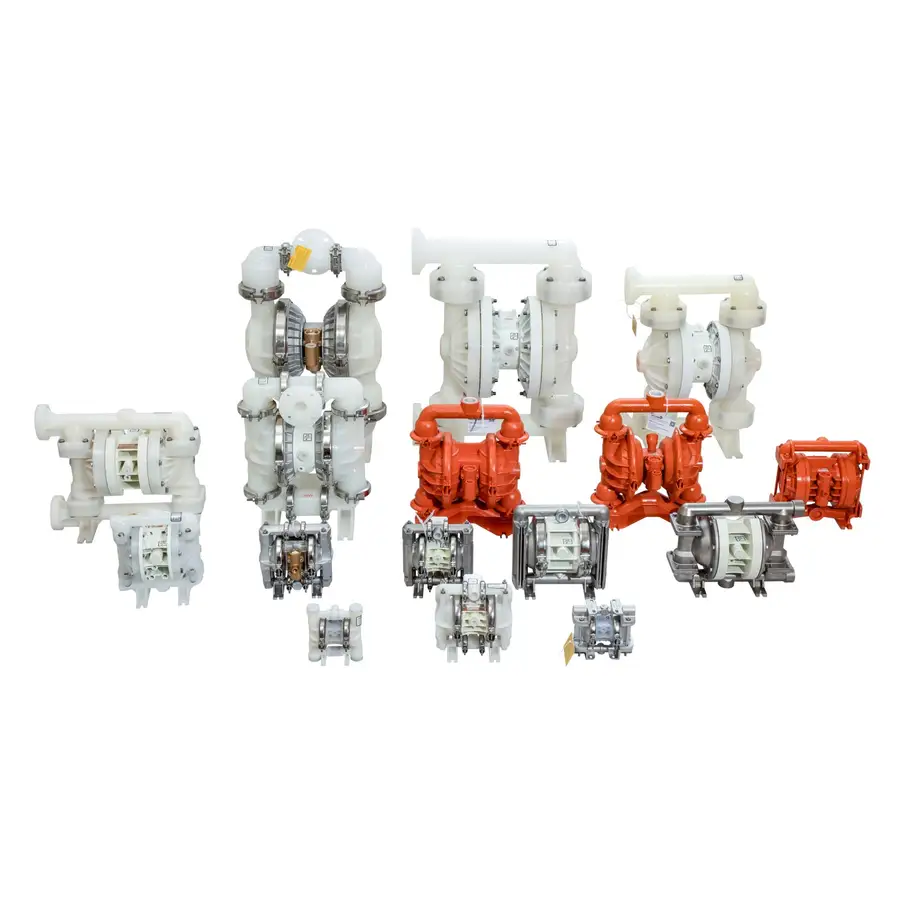

Wilden pneumatic diaphragm pump 1 inch P2 sewage/chemical pneumatic delivery pump 25 metal clamp pump plastic
Model: P2
Wilden pneumatic diaphragm pump 1 inch P2 sewage/chemical pneumatic delivery pump 25 metal clamp pump plastic WLDEN P2 bolted metal pneumatic diaphragm pump specifications: Wetted parts material: Wetted parts material Shipping weight Aluminum alloy 11 kg (24 lbs) 316 stainless steel 21 kg (47 lbs) Ductile iron.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Wilden pneumatic diaphragm pump 1 inch P2 sewage/chemical pneumatic delivery pump 25 metal clamp pump plastic
WLDEN P2 bolted metal pneumatic diaphragm pump specifications:
Wetted parts material:
Wetted parts material
Shipping weight
Aluminum alloy
11 kg (24 lbs)
316 stainless steel
21 kg (47 lbs)
Ductile iron.
23 kg (51 lbs)
Elastomer material
Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyurethane,
Teflon PTFE, fluorinated rubber, Wil-FlexTM
Non-wetted parts material
Middle part: aluminum alloy, polypropylene, acetal
Air valve: aluminum alloy, polypropylene, acetal
Performance parameters:
Medium inlet size
1” (25 mm)
Medium outlet size
1” (25 mm)
Air inlet size
1/4” (6 mm)
Maximum outlet pressure
8.6 Bar (125 psig)
Maximum solid particle diameter that can pass
1/4” (6.4 mm)
Maximum flow
Rubber/thermoplastic compounds
212 lpm (56 gpm)
PTFE.
168 lpm (44 gpm)
Maximum suction lift
Rubber/thermoplastic compounds
Dry suction 5.4 m (17.6’)
Wet suction 9.3 m (30.6’)
PTFE.
Dry suction 3.5 m (11.4’)
Wet suction 9.3 m (30.6’)
