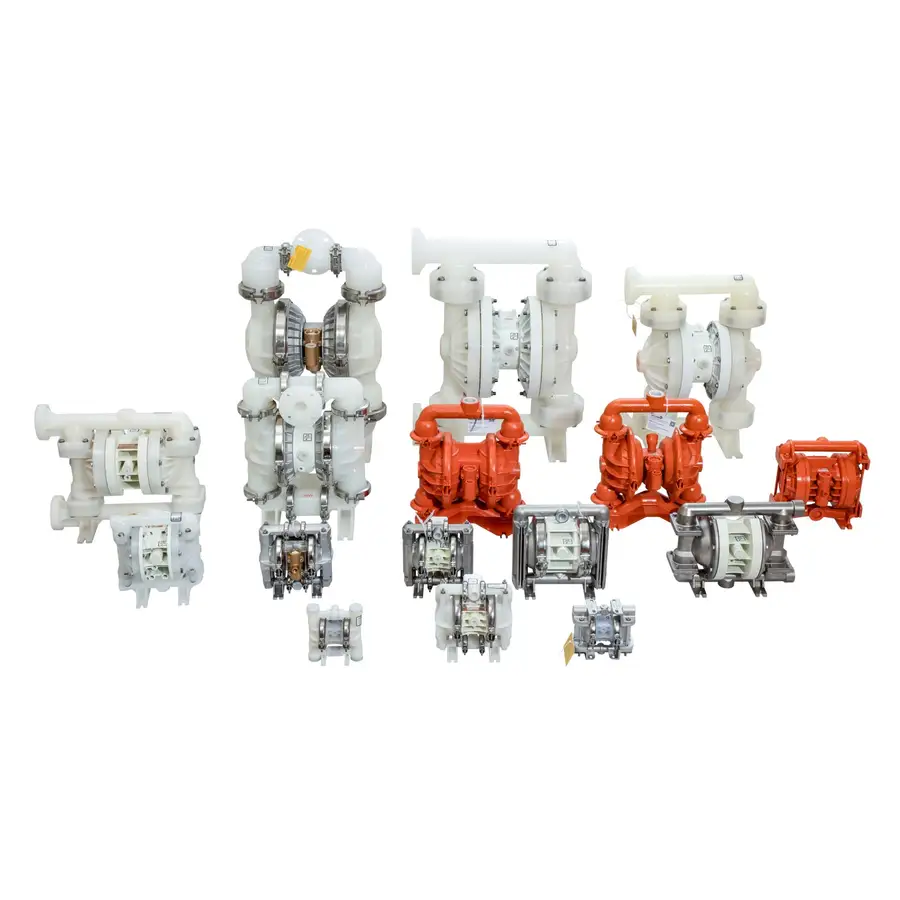

WILDEN PX1500 Bolt Stainless Steel Pneumatic Diaphragm Pump
Model: PX1500
WILDEN PX1500 Bolt Stainless Steel Pneumatic Diaphragm Pump WILDEN Wilton PX1500 bolted stainless steel pneumatic diaphragm pump specifications: Material of liquid contact: 316 stainless steel transportation weight: 125 kg (275 lbs) Hastelloy Transport Weight: 130 kg (287 lbs) Elastomer material: Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters, Teflon PTFE, fluorinated rubber, Wil-FlexTM.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
WILDEN PX1500 Bolt Stainless Steel Pneumatic Diaphragm Pump
WILDEN Wilton PX1500 bolted stainless steel pneumatic diaphragm pump specifications:
Material of liquid contact:
316 stainless steel transportation weight: 125 kg (275 lbs)
Hastelloy Transport Weight: 130 kg (287 lbs)
Elastomer material:
Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters,
Teflon PTFE, fluorinated rubber, Wil-FlexTM.
Non-liquid-to-liquid material:
Air chamber: aluminum alloy, stainless steel;
Middle part: aluminum alloy, stainless steel, polypropylene;
Air valve: aluminum alloy, stainless steel, polypropylene;
Performance parameters of WILDEN Wilton PX1500 bolted stainless steel pneumatic diaphragm pump:
Media import dimensions: 3” (76 mm)
Media outlet dimensions: 3” (76 mm)
Air inlet size: 3/4” (19 mm)
Maximum outlet pressure: 8.6 Bar (125 psig)
Maximum solid particle diameter can be passed: 3/8” (9.5mm)
Maximum traffic:
Rubber/thermoplastic compound: 918 lpm (243 gpm)
Teflon PTFE: 727 lpm (192 gpm)
Maximum suction range: Rubber/thermoplastic compound: dry
suction 6.7 m (22.1’), wet suction 9.5 m (31.2’)
Teflon PTFE: Dry suction 4.9 m (15.9’), wet suction 9.5 m (31.2’
| WILDEN Pump Description | PX1500/AAAAA/VTU/VT/STF |
|---|---|
| Port Size | 3" |
| Air Kit | 15-9988-99 |
| Wet Kit | 15-9814-53-212 |
| Air Distribution System | Pro-Flo X™ |
| Pump Construction | Aluminum |
| Diaphragms | Viton Ultraflex |
| Valve/ Balls | Viton |
| Valve Seats | SS with Teflon O-ring |
| Outer Piston | Aluminum |
| Air Chamber | Aluminum |
| Center Block | Aluminum |
| Air Valve | Aluminum |
| Capacity GPM | 250 |
| Capacity Liters/min | 950 |
| Pump Weight Lbs | 223,0 |
| Pump Weight Kilo | 101 |
| Specialty Code | #N/A |
