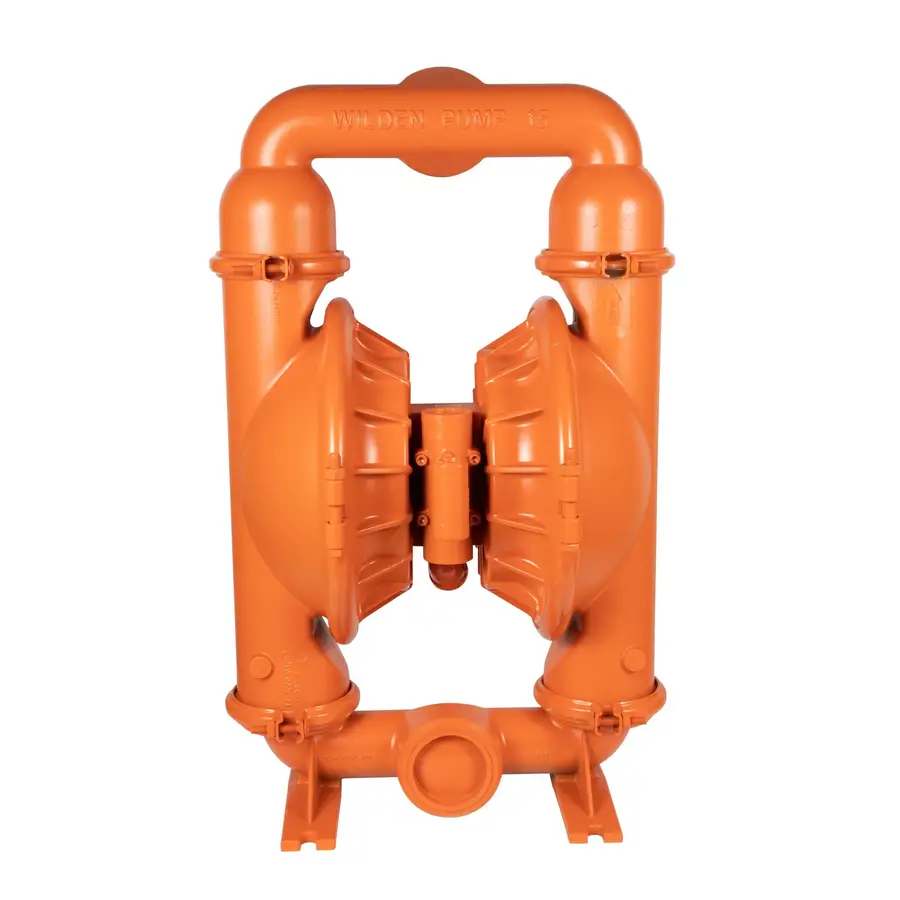

WILDEN PX15 clamp type metal pneumatic diaphragm pump
Model: PX15
WILDEN PX15 clamp type metal pneumatic diaphragm pump WILDEN PX15 clamp type metal pneumatic diaphragm pump specifications: Material of liquid contact: Transport weight of aluminum alloy: 60 kg (132 lbs); 316 Stainless steel transport weight: 90 kg (198 lbs); Ductile iron transport weight: 98 kg (216 lbs);
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
WILDEN PX15 clamp type metal pneumatic diaphragm pump
WILDEN PX15 clamp type metal pneumatic diaphragm pump specifications:
Material of liquid contact:
Transport weight of aluminum alloy: 60 kg (132 lbs);
316 Stainless steel transport weight: 90 kg (198 lbs);
Ductile iron transport weight: 98 kg (216 lbs);
Elastomer material:
Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters,
Teflon PTFE, fluorinated rubber, Wil-FlexTM.
Non-liquid-to-liquid material:
Air chamber: aluminum alloy, stainless steel;
Intermediate: aluminum alloy, stainless steel;
Air valve: aluminum alloy, stainless steel;
Performance parameters of WILDEN Wilton PX15 clamp type metal pneumatic diaphragm pump:
Media import dimensions: 3” (76 mm);
Media outlet dimensions: 3” (76 mm);
Air inlet size: 3/4” (19 mm);
Maximum outlet pressure: 8.6 Bar (125 psig);
Maximum solid particle diameter can be passed: 3/8” (9.5 mm);
Maximum traffic:
Rubber/thermoplastic compound: 918 lpm (243 gpm);
Teflon PTFE: 727 lpm (192 gpm);
Maximum suction range:
Rubber/thermoplastic compounds: dry suction 6.7 m (22.1’), wet suction 9.5 m (31.2’);
Teflon PTFE: dry suction 4.8 m (15.9’), wet suction 9.5 m (31.2’);
