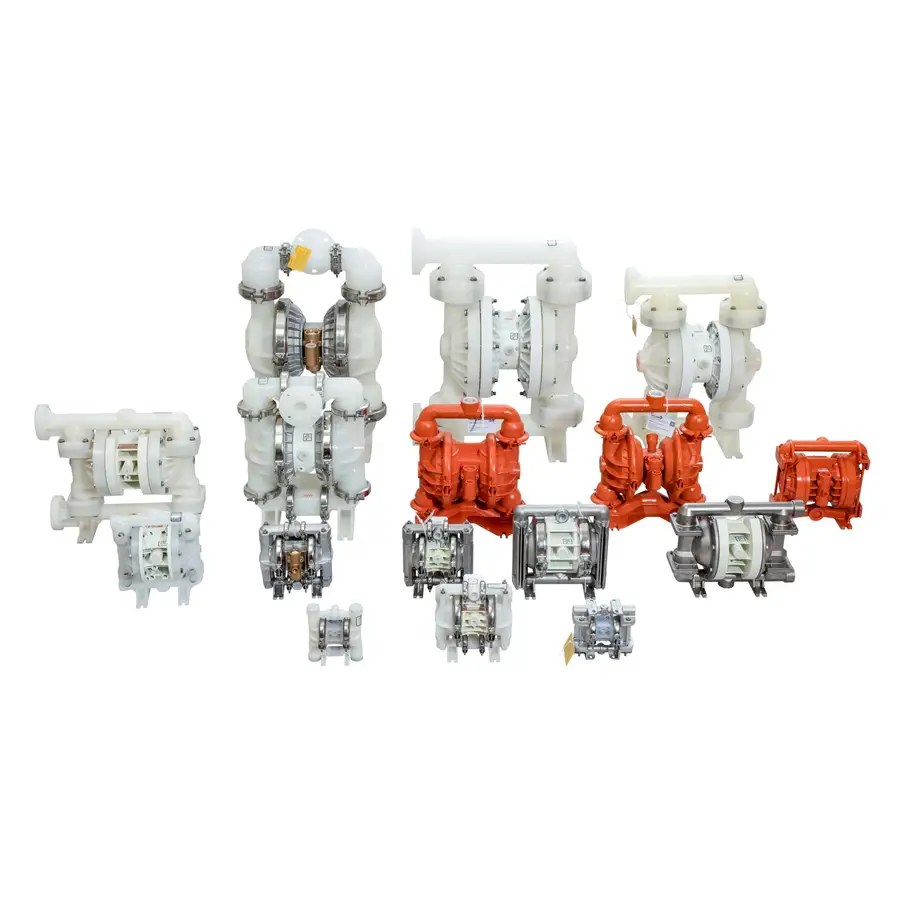

Reference image. Final construction follows the confirmed model and quotation.
Pneumatic Diaphragm Pumps
WILDEN PX1 clamp type metal pneumatic separator membrane pump
Model: PX1
WILDEN PX1 clamp type metal pneumatic separator membrane pump WILDEN Wilton PX1 clamp type metal pneumatic diaphragm pump specifications: Material of liquid contact: Aluminum alloy transport weight: 6 kg (13 lbs); 316 stainless steel transport weight: 9 kg (20 lbs); Elastomer material: Nitrile rubber, ternary rubber, SaniflexTM, polyimine esters, Teflon PTFE, fluorinated rubber, Wil-FlexTM.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
WILDEN PX1 clamp type metal pneumatic separator membrane pump
WILDEN Wilton PX1 clamp type metal pneumatic diaphragm pump specifications:
Material of liquid contact:
Aluminum alloy transport weight: 6 kg (13 lbs);
316 stainless steel transport weight: 9 kg (20 lbs);
Elastomer material:
Nitrile rubber, ternary rubber, SaniflexTM, polyimine esters,
Teflon PTFE, fluorinated rubber, Wil-FlexTM.
Non-liquid-to-liquid material:
Middle part: aluminum alloy;
Air valve: aluminum alloy;
Performance parameters of WILDEN Wilton PX1 clamp type metal pneumatic diaphragm pump:
Media import dimensions: 1/2” (13 mm);
Media outlet dimensions: 1/2” (13 mm);
Air inlet size: 1/2” (13 mm);
Maximum outlet pressure: 8.6 Bar (125 psig);
The maximum solid particle diameter can be passed: 1/16” (1.6mm);
Maximum traffic:
Rubber/thermoplastic compound: 62.8 lpm (16.6 gpm);
Teflon PTFE: 60.9 lpm (16.1 gpm);
Maximum suction range:
Rubber/thermoplastic compounds: dry suction 5.9 m (19.3’), wet suction 9.3 m (30.6’);
Teflon PTFE: dry suction 4.7 m (15.3’), wet suction 8.0 m (26.1’);
