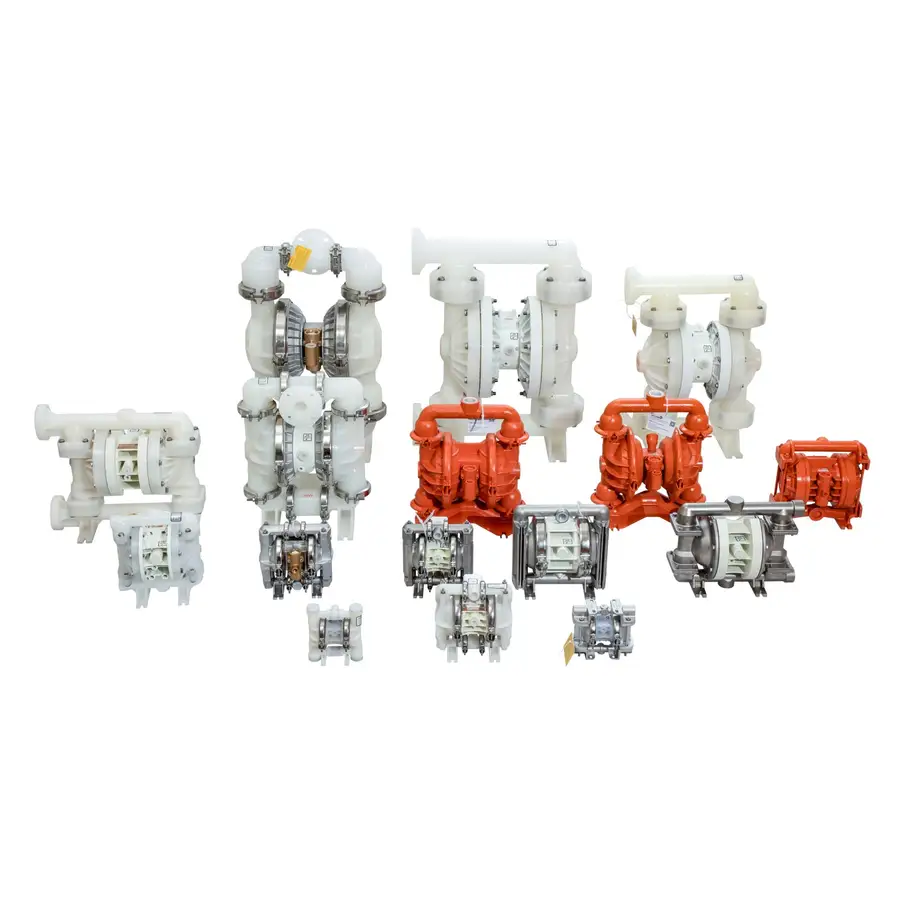

Reference image. Final construction follows the confirmed model and quotation.
Pneumatic Diaphragm Pumps
WILDEN PX400 Bolt Aluminum Alloy Pneumatic Diaphragm Pump
Model: PX400
WILDEN PX400 Bolt Aluminum Alloy Pneumatic Diaphragm Pump WILDEN PX400 Bolt Aluminum Alloy Pneumatic Diaphragm Pump Specifications: Material of liquid contact: Aluminum alloy transport weight: 33 kg (72 lbs) Elastomer material: Nitrile rubber, SaniflexTM, neoprene, Teflon PTFE, fluorinated rubber, Wil-FlexTM. Non-liquid-to-liquid material: Air chamber: aluminum alloy; Middle part: aluminum alloy;
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
WILDEN PX400 Bolt Aluminum Alloy Pneumatic Diaphragm Pump
WILDEN PX400 Bolt Aluminum Alloy Pneumatic Diaphragm Pump Specifications:
Material of liquid contact:
Aluminum alloy transport weight: 33 kg (72 lbs)
Elastomer material:
Nitrile rubber, SaniflexTM, neoprene, Teflon PTFE, fluorinated rubber, Wil-FlexTM.
Non-liquid-to-liquid material:
Air chamber: aluminum alloy;
Middle part: aluminum alloy;
Air valve: aluminum alloy;
Performance parameters of WILDEN Wilton PX400 bolted aluminum alloy pneumatic diaphragm pump:
Media import dimensions: 1-1/2” (38 mm)
Media outlet size: 1-1/2” (38 mm)
Air inlet size: 1/2” (13 mm)
Maximum outlet pressure: 8.6 Bar (125 psig)
Maximum solid particle diameter can be passed: 5/16” (7.9 mm)
Maximum traffic:
Rubber/thermoplastic compound: 424 lpm (112 gpm)
Teflon PTFE: 338 lpm (89 gpm)
Maximum suction range: Rubber/thermoplastic compounds: dry suction 6.3 m (20.5’), wet suction 9.0 m (29.5’)
Teflon PTFE: Dry suction 3.5 m (11.4’), wet suction 9.0 m (29.5’)
| WILDEN Pump Description | PX400/SSAAA/TNU/TF/STF |
|---|---|
| Port Size | 1,5" |
| Air Kit | 04-9988-99 |
| Wet Kit | 04-9816-55 |
| Air Distribution System | Pro-Flo X™ |
| Pump Construction | Stainless Steel |
| Diaphragms | Ptfe with Neoprene Back-Up |
| Valve/ Balls | Teflon |
| Valve Seats | SS with Teflon O-ring |
| Outer Piston | Stainless Steel |
| Air Chamber | Aluminum |
| Center Block | Aluminum |
| Air Valve | Aluminum |
| Capacity GPM | 86 |
| Capacity Liters/min | 327 |
| Pump Weight Lbs | 94,0 |
| Pump Weight Kilo | 42 |
| Specialty Code | #N/A |
