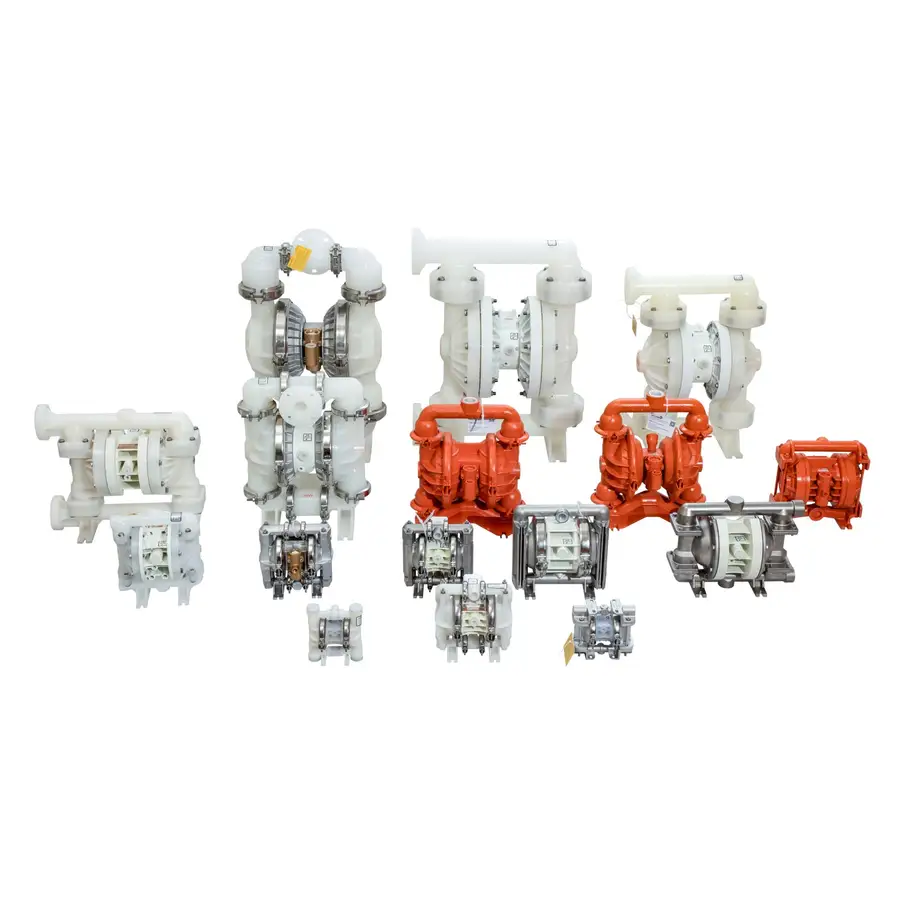

WILDEN PX400 Bolt Plastic Pneumatic Diaphragm Pump

WILDEN   PX400 Bolt Plastic Pneumatic Diaphragm Pump

WILDEN  PX400 Bolt Plastic Pneumatic Diaphragm Pump Specifications:

Material of liquid contact:

Polypropylene transport weight: 24 kg (41 lbs);

Elastomer material:

Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters,

Teflon PTFE, fluorinated rubber, Wil-FlexTM;

Non-liquid-to-liquid material:

Air chamber: polypropylene;

Intermediate part: polypropylene;

Air valve: polypropylene;

Performance parameters of WILDEN Wilton PX400 bolt plastic pneumatic diaphragm pump:

Media import dimensions: 1-1/2” (38 mm);

Media outlet dimensions: 1-1/2” (38 mm);

Air inlet size: 3/4” (19 mm);

Maximum outlet pressure: 8.6 Bar (125 psig);

The maximum solid particle diameter can be passed: 1/4” (6.4mm);

Maximum traffic:

Rubber/thermoplastic compound: 450 lpm (119 gpm);

Teflon PTFE: 329lpm (87gpm);

Maximum suction range:

Rubber/thermoplastic compounds: dry suction 5.5 m (18.2’), wet suction 9.3 m (30.6’);

Teflon PTFE: dry suction 3.6 m (11.9), wet suction 9.7 m (25.0’);

WILDEN Pump Description	PX400/AAAAR/TNU/TF/ATF/0504
Port Size	1,5"
Air Kit	04-9988-11
Wet Kit	04-9814-55
Air Distribution System	Pro-Flo X™
Pump Construction	Aluminum
Diaphragms	Ptfe with Neoprene Back-Up
Valve/ Balls	Teflon
Valve Seats	Aluminum with Teflon O-Ring
Outer Piston	Aluminum
Air Chamber	Aluminum
Center Block	Aluminum
Air Valve	Anodized Aluminum
Capacity GPM	89
Capacity Liters/min	338
Pump Weight Lbs	72,0
Pump Weight Kilo	32
Specialty Code	DIN flange
